Rittal

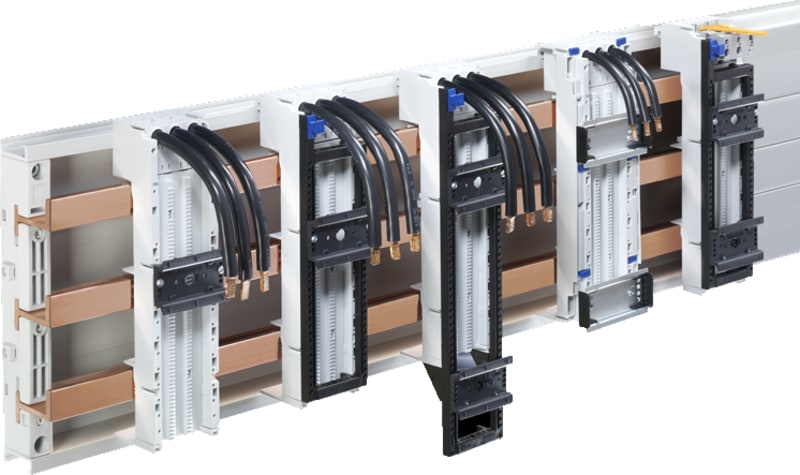

App. adapter OM 25A, AWG 12 (9340340)
Part number9340340EAN / GTIN4028177502512HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 9340340 Manufacturer description: SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH:; 45x208 mm, support frame, support rail TS 45C. OM-adapter 25 A with connection wires.
Technical Specifications
- Manufacturer part number (MPN)
- 9340340
- EAN / GTIN
- 4028177502512
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Model designation
- SV 9340.340
- Product type
- OM adapter
- Version
- With connection cable
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- Connection cables (AWG)
- AWG 12
- Rated operating voltage
- 690 V, 3~
- For bar systems with center-to- center spacing
- 60 mm
- Length of connection cable
- 130 mm
- Support rail type
- Support frame, 1 x TS 45C
- Number of poles
- 3-pole
- Dimensions
- Width: 45 mm; Height: 208 mm
- Support rails Qty/height
- 1 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Support frame (W x H)
- 45 mm x 170 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.27 kg
- Gross weight
- 0.28 kg
- Copper weight (kg per piece)
- 0.036
- Customs tariff number
- 85369095
- ETIM 9
- EC001531
- ECLASS 8.0
- 27370304
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Rated current
- 25 A
- Mounting rail armament
- None
- Rated current In
- 25 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 45 mm
- Rail width
- 45 mm
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177502512
- SAP 1000116749
- Code 8614835
Product Documentation
Document preview: Rittal 9340340 — Data Sheet (OEM)
More from Rittal
Rittal
Base panels VX ventilated 800X100
8660091
Rittal
Floor-standing cabinet VX 600X2200X600
8626000
Rittal
2 st VX IT-Mountingsvincl. std rear 42HE
5302107
Rittal
App. adapter OM 25A, AWG 12 (9340310)
Rittal
Montasjesats VX svingarm 130° (8619042)
Rittal

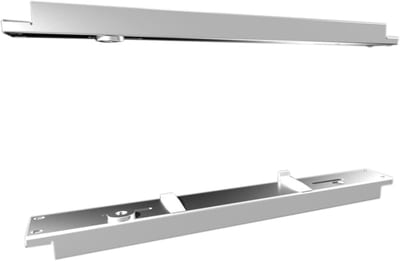

Montasjesats VX svingarm 130° (8619040)
Rittal
VX IT Gland Plate 600X1000 mm
5301338
Rittal

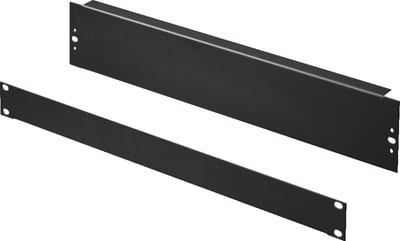

Blanking Panel 19" 2U black
