PDU surge protection device 32A/3P
Pricing
Request a quote
We reply within 24 hours
Product Description

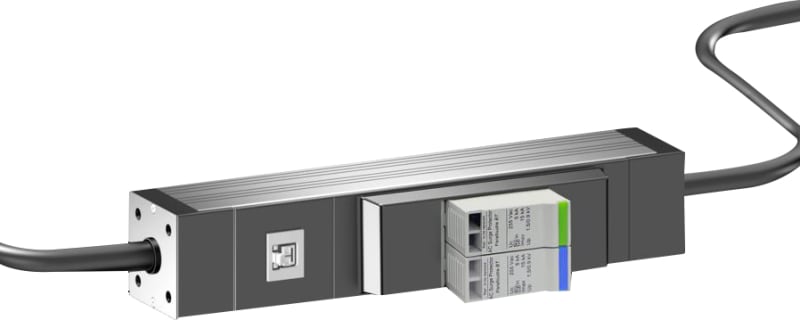

Rittal 7979724 Manufacturer description: DK surge voltage protector module, for terminal unit protection (type 3) with alarm contact, for fastening to the enclosure frame, rated power: 22.0 kW, rated current: 32 A, 3~, connection type: CEE connector/coupling, connection cable / length: H05VV F5G4.0 / 1 m, extruded aluminium section, anodised, RAL 9005, incl. assembly parts,. Surge voltage protector module, for terminal unit protection (type 3) with alarm contact.
Technical Specifications
- Manufacturer part number (MPN)
- 7979724
- EAN / GTIN
- 4028177948556
- Sales unit
- pcs
- Model designation
- DK 7979.724
- Product type
- Overvoltage protection module type
- Design
- Overvoltage protection type 3
- Material
- Extruded aluminium section, anodised
- Colour
- RAL 9005
- Supply includes
- Assembly parts
- Power consumption
- 22 kW
- Type of electrical connection
- CEE connector/coupling
- Directives
- Low Voltage Directive 2014/35/EU; EMC directive 2014/30/EU
- Standards
- IEC 61 643-11; EN 61 643-11
- Dimensions
- Width: 44 mm; Height: 75 mm; Length: 250 mm
- Input cable connection (type/ length)
- H05VV-F5G2.5, 1 m
- Output cable connection (type/ length)
- H05VV-F5G2.5, 1 m
- Net weight
- 2.6 kg
- Gross weight
- 2.96 kg
- Customs tariff number
- 85366990
- ETIM 9
- EC000942
- ECLASS 8.0
- 27130806
- Rated current
- 32 A
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Type of electric connection
- CEE 32 A
- Cable length
- 3 m
- Length
- 250 mm
- Width
- 44 mm
- Depth
- 70 mm
- Supply voltage
- 230 V
- Overvoltage category
- 3
- Mains filter
- Yes
- Switchable
- No
- SNMP
- No
- With display
- No
- Evaluation
- Local
- With LED indication
- No
- With fuse
- Yes
- Ampere meter
- No
- Temperature measurement
- No
- With mounting material
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4028177948556
- SAP 1200542517
- Code 82802092
Product Documentation
