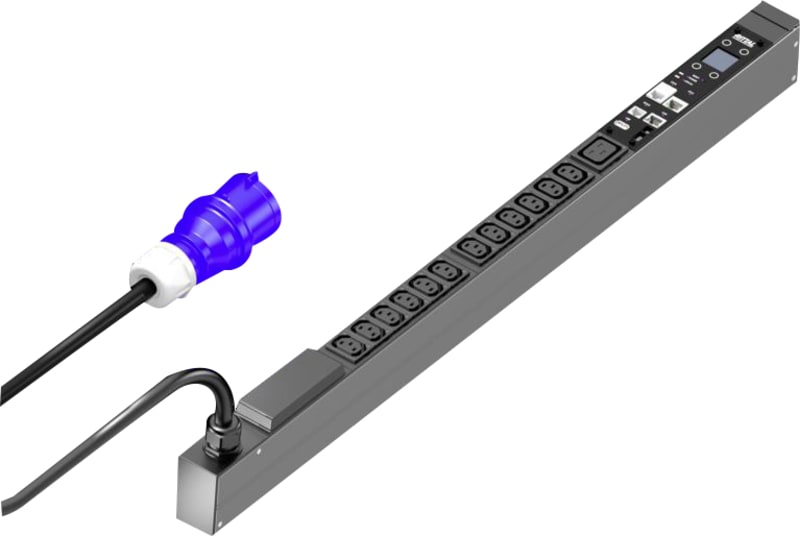

PDU met.+ 16A/1P 12XC13+1XC19

Rittal 7979510 Manufacturer description: DK PDU metered+, compact basic power distribution incl. energy measurement per output slot, with network interface and display, WLD: 44x845x70 mm, IEC 60 320: 12x C13, 1x C19. PDU metered+ 16A/1P CEE 12xC13+1xC19, DK PDU metered+, Compact basic power distributor.

Manufacturer part number (MPN)

7979510

EAN / GTIN

4028177948297

Sales unit

pcs

Model designation

DK 7979.510

Product type

PDU metered plus

Design

PDU, metered plus

Technical specifications

Display/controller unit in the PDU enclosure rotatable through 180° and replaceable; Integral, fully-redundant power pack, power supply from all phases; Error-tolerant PDU power supply redundant across all phases; Voltage V, current A, frequency Hz; Active power, active energy, apparent power, apparent energy; Power factor (cosPhi) and phase angle; Zero conductor current measurement/load imbalance detection; Fuse monitoring for PDUs with integral fuse; Bright TFT display, 128 x 128 pixels (RGB) with back-lighting and energy-saving mode to display output data and basic PDU configuration; Position sensors for display rotation and correct PDU representation on the website; Multi-colour LEDs (green/amber/red) to indicate switching states and limits per individual output slot; Power LED to indicate voltage

Material

Aluminium section, black anodised; Slots: Plastic

Supply includes

Assembly parts

Dimensions

Width: 44 mm; Depth: 70 mm; Length: 845 mm

No. of sockets and type

12 x C13 / 1 x C19

Sockets

12 x C 13; 1 x C 19

Rated operating voltage

230 V (AC)

Power consumption

3.7 kW

Infeeds

Qty.: 1; Phases per infeed: 1~

Length of connection cable

3m

Type of electrical connection

CEE

Directives

EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU

Standards

EN 62368-1; EN 61000-3; EN 61000-4; EN 61000-6; EN 62053-21

Protocols

Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP; TCP/IP v4 & v6, DHCP, DNS; SNMP v1, v2c & v3, Modbus/TCP, OPC-UA; MIB for linking into 3rd party DCIM software; FTP/SFTP (update/file transfer)

Operating temperature range

5 °C...50 °C

Ambient humidity (non- condensing)

10...95 %

Storage temperature range

-20 °C...70 °C

To fit

Enclosure type: VX IT enclosure frame: ≥ 1,200 mm; Enclosure type: VX IT 19" mounting angles: ≥ 1,200 mm

Net weight

3.001 kg

Gross weight

3.43 kg

Customs tariff number

85366990

ETIM 9

EC002762

ETIM 8

EC002762

ECLASS 8.0

27142604

Approvals

Cyber Security Certificate; TÜV-tested safety

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Type of electric connection

CEE 16 A

Number of phases

1

Cable length

3 m

Number of C13 socket outlets

12

Number of C19 socket outlets

1

Length

845 mm

Width

44 mm

Depth

70 mm

Supply voltage

230 V

Mains filter

No

Switchable

No

With meter

Yes

Control function

Yes

SNMP

Yes

With display

Yes

Evaluation

Local

With LED indication

No

With fuse

No

Ampere meter

Yes

Temperature measurement

Yes

With mounting material

Yes

Colour

Black

Country of origin

Germany

HS Code

8536.69
