PDU switch 16A/3P 36XC13+6XC19
Pricing
Request a quote
We reply within 24 hours
Product Description

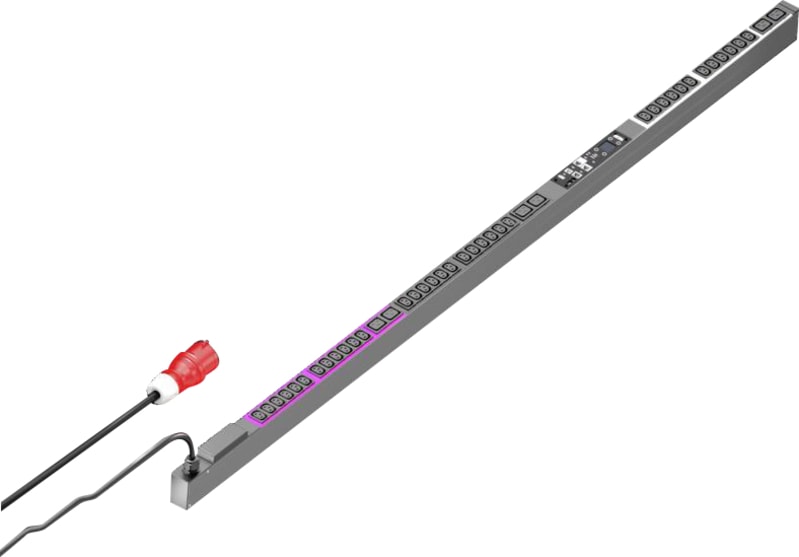

Rittal 7979340 Manufacturer description: DK PDU switched, compact basic power distribution incl. energy measurement per phase, individually switchable output slots, with network interface and display, WLD: 44x1895x70 mm, IEC 60 320:; 36x C13 + 6x C19. PDU switched 16A/3P CEE 36xC13+6xC19, DK PDU switched, Compact basic power distributor.
Technical Specifications
- Manufacturer part number (MPN)
- 7979340
- EAN / GTIN
- 4028177948020
- HS code
- 8536.90
- Sales unit
- pcs
- Model designation
- DK 7979.340
- Product type
- PDU switched
- Design
- PDU, switched
- Technical specifications
- Display/controller unit in the PDU enclosure rotatable through 180° and replaceable; Integral, fully-redundant power pack, power supply from all phases; Error-tolerant PDU power supply redundant across all phases; Voltage V, current A, frequency Hz; Active power, active energy, apparent power, apparent energy; Power factor (cosPhi) and phase angle; Zero conductor current measurement/load imbalance detection; Fuse monitoring for PDUs with integral fuse; Monitoring of the optionally available overvoltage protection; Bright TFT display, 128 x 128 pixels (RGB) with back-lighting and energy-saving mode to display output data and basic PDU configuration; Position sensors for display rotation and correct PDU representation on the website; Multi-colour LEDs (green/amber/red) to indicate switching states and warning/alarm limits per phase or infeed; Power LED to indicate voltage; Power-saving design, minimal intrinsic power consumption
- Material
- Aluminium section, black anodised; Slots: Plastic
- Supply includes
- Assembly parts
- Dimensions
- Width: 44 mm; Depth: 70 mm; Length: 1,895 mm
- No. of sockets and type
- 36 x C13 / 6 x C19
- Sockets
- 36 x C 13; 6 x C 19
- Rated operating voltage
- 400 V (AC)
- Power consumption
- 11 kW
- Infeeds
- Phases per infeed: 3~
- Length of connection cable
- 3m
- Type of electrical connection
- CEE
- Directives
- EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- Standards
- EN 62368-1; EN 61000-3; EN 61000-4; EN 61000-6; EN 62053-21
- Protocols
- Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP; TCP/IP v4 & v6, DHCP, DNS; SNMP v1, v2c & v3, Modbus/TCP, OPC-UA; MIB for linking into 3rd party DCIM software; FTP/SFTP (update/file transfer)
- Operating temperature range
- 5 °C...50 °C
- Ambient humidity (non- condensing)
- 10...95 %
- Storage temperature range
- -20 °C...70 °C
- To fit
- Enclosure type: VX IT enclosure frame: ≥ 2,000 mm; Enclosure type: VX IT 19" mounting angles: ≥ 2,200 mm
- Net weight
- 0.001 kg
- Gross weight
- 0.001 kg
- Customs tariff number
- 85366990
- ETIM 9
- EC002762
- ETIM 8
- EC002762
- ECLASS 8.0
- 27142604
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177948020
- SAP 1200542626
- Code 82801822
Product Documentation
More from Rittal
Rittal
System Enclosure VXSE DD 1200X2000X600
5845600
Rittal
System chassis VX 23X89 rf 600
8100732
Rittal
Floor-standing cabinet VX 1200X1800X600
8286000
Rittal
System chassis VX 23X89 rf 400
8100730
Rittal
System Enclosure VX SE 1200X1800X300
5824600
Rittal
Rittal SV base plate profile RL60 PLS800 700 mm 3-pole
9340110
Rittal
System chassis VX y 18X64 600
8617030
Rittal
Plinth VX incl. front/rear panel 100X1800
8660009
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
