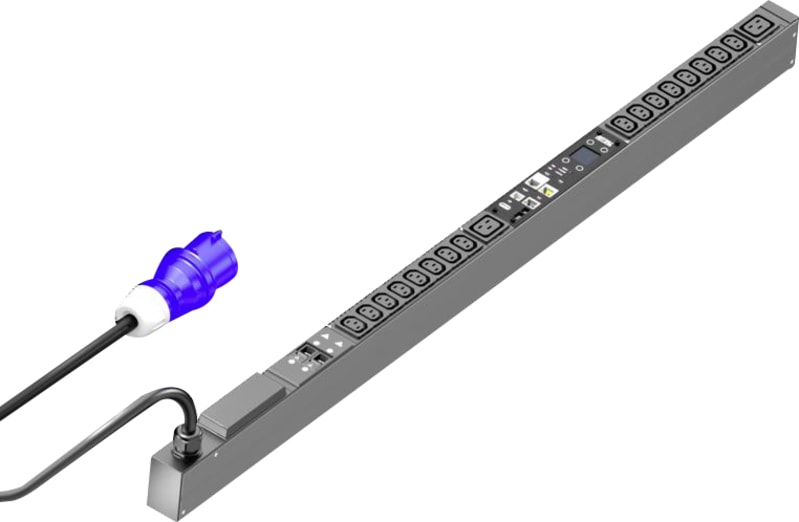

PDU met. 32A/1P 16XC13+2XC19

Rittal 7979212 PDU metered 32A/1P CEE 16xC13+2xC19, Compact basic power distributor.

Manufacturer part number (MPN)

7979212

EAN / GTIN

4028177947658

Sales unit

pcs

Model designation

DK 7979.212

Product type

PDU metered

Design

PDU, metered

Technical specifications

Display/controller unit in the PDU enclosure rotatable through 180° and replaceable; Compact circuit-breaker (16 A - Carling type); Integral, fully-redundant power pack, power supply from all phases; Error-tolerant PDU power supply redundant across all phases; Voltage V, current A, frequency Hz; Active power, active energy, apparent power, apparent energy; Power factor (cosPhi) and phase angle; Zero conductor current measurement/load imbalance detection; Fuse monitoring for PDUs with integral fuse; Bright TFT display, 128 x 128 pixels (RGB) with back-lighting and energy-saving mode to display output data and basic PDU configuration; Position sensors for display rotation and correct PDU representation on the website; Power LED to indicate voltage

Material

Aluminium section, black anodised; Slots: Plastic

Supply includes

Assembly parts

Dimensions

Width: 44 mm; Depth: 70 mm; Length: 1,095 mm

No. of sockets and type

16 x C13 / 2 x C19

Rated operating voltage

230 V (AC)

Power consumption

7.4 kW

Infeeds

Qty.: 1; Phases per infeed: 1~

Length of connection cable

3m

Type of electrical connection

CEE

Directives

EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU

Standards

EN 62368-1; EN 61000-3; EN 61000-4; EN 61000-6; EN 62053-21

Protocols

Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP; TCP/IP v4 & v6, DHCP, DNS; SNMP v1, v2c & v3, Modbus/TCP, OPC-UA; MIB for linking into 3rd party DCIM software; FTP/SFTP (update/file transfer)

Operating temperature range

5 °C...50 °C

Ambient humidity (non- condensing)

10...95 %

Storage temperature range

-20 °C...70 °C

To fit

Enclosure type: VX IT enclosure frame: ≥ 1,200 mm; Enclosure type: VX IT 19" mounting angles: ≥ 1,800 mm

Net weight

0.001 kg

Gross weight

4.179 kg

Customs tariff number

85366990

ETIM 9

EC002762

ETIM 8

EC002762

ECLASS 8.0

27142604

Approvals

Cyber Security Certificate; TÜV-tested safety

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Type of electric connection

CEE 16 A

Number of phases

1

Cable length

3 m

Number of C13 socket outlets

16

Number of C19 socket outlets

2

Length

1095 mm

Width

44 mm

Depth

70 mm

Supply voltage

230 V

Mains filter

No

Switchable

No

With meter

Yes

Control function

Yes

SNMP

Yes

With display

Yes

Evaluation

Local

With LED indication

No

With fuse

Yes

Ampere meter

Yes

Temperature measurement

Yes

With mounting material

Yes

Colour

Black

Country of origin

Germany

HS Code

8536.69
