Rittal

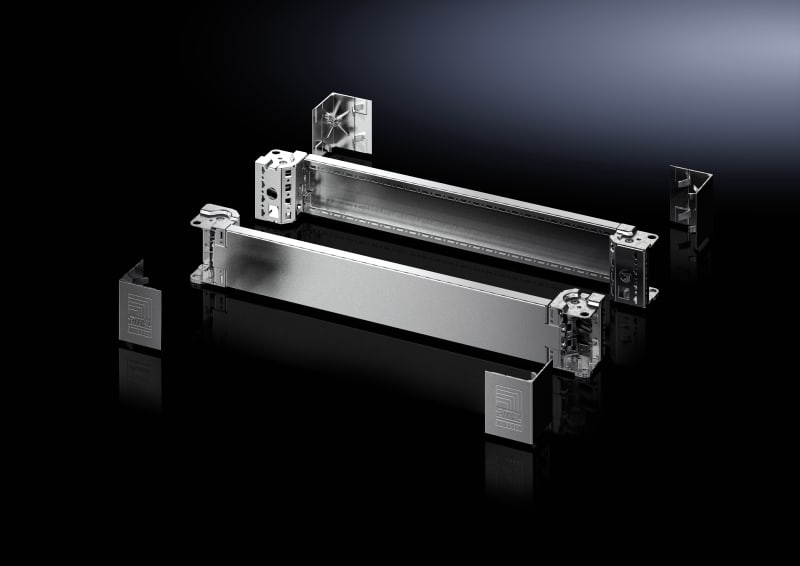

Plinth VX rf B 800X100
Part number8620051EAN / GTIN4028177922303HS code9403.99
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8620051 Manufacturer description: VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 800 mm, stainless steel, 1.4301. Plinth VX stainless.
Technical Specifications
- Manufacturer part number (MPN)
- 8620051
- EAN / GTIN
- 4028177922303
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- VX 8620.051
- Material
- Base/plinth corner piece: Stainless steel 1.4301 (AISI 304); Base/plinth trim panels, front/rear: Stainless steel 1.4301 (AISI 304); Corner and baying covers: Plastic
- Surface finish
- Trim Panel: Brushed, grain 400
- Supply includes
- 4 x base/plinth corner pieces; 4 x corner covers; 1 x baying cover; 2 x base/plinth trim panels, front/rear, 100 mm high; Assembly components
- Dimensions
- Height: 100 mm
- Type rating according to UL 50E
- Type 1; Type 3R; Type 4; Type 4X; Type 12
- Weight/packaging unit
- 6.5 kg; 14.3 lb.
- Packaging unit
- 2 pc(s).
- Net weight
- 4.78 kg
- Gross weight
- 4.86 kg
- Customs tariff number
- 94039910
- ETIM 9
- EC000721
- ECLASS 8.0
- 27182003
- Approvals
- UL + C-UL - FTTA
- Colour
- Stainless steel
- Width
- 800 mm
- Height
- 100 mm
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building width
- 800 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- No
- Suitable for outdoor installation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177922303
- SAP 1200227681
- Code 82171473
Product Documentation
Document preview: Rittal 8620051 — Data Sheet (OEM)
More from Rittal
Rittal
Plinth AX 800X100 (2820081)
Rittal
Base panels VX on the side 200X300
8660040
Rittal
Hylleplan 471X500 (7165035)
Rittal

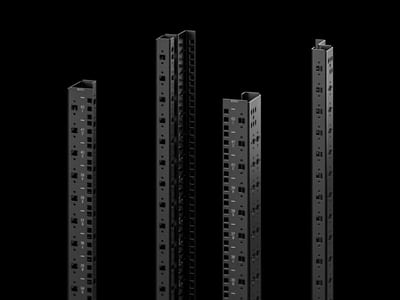

VX IT-Mountingsvinkler dyn frem 47HE
5302156
Rittal
Floor-standing cabinet VX 600X1800X600
8686000
Rittal

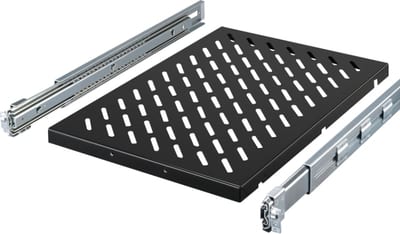

Withdrawable shelf for 19" (5501725)
Rittal

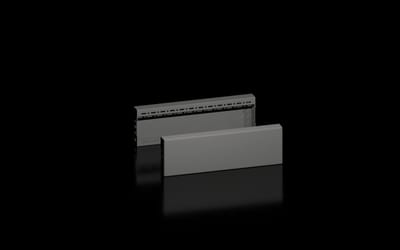

Base panels VX on the side 100X500
