Rittal

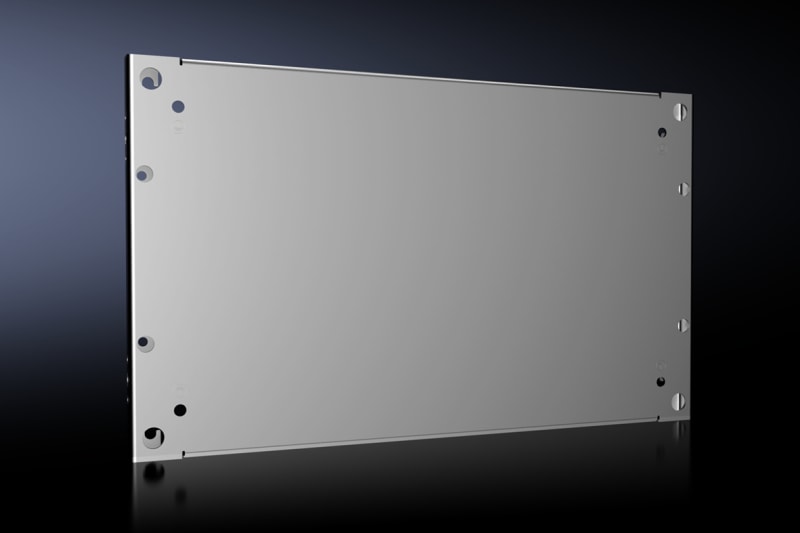

Partial Mounting Plate VX 600X800
Part number8617540EAN / GTIN4028177919396HS code9403.99
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8617540 Manufacturer description: VX Partial mounting plate, dimensions: 500x700 mm. Partial Mounting Plate VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8617540
- EAN / GTIN
- 4028177919396
- Sales unit
- pcs
- Model designation
- VX 8617.540
- Product type
- Partial Mounting Plates
- Material
- Carbon steel, 2.5 mm
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Suitable for door width
- 600 mm
- Installation options
- The installation can be done either standing up as a vertical mounting surface or lying flat as a horizontal floor; Attachment is directly on the enclosure section; It is attached via the system chassis at any mounting level in the enclosure in the case of an advanced design; For multi-level installation of the partial mounting plates one behind the other, they can be made swingable through the hinge attachment for quick access to the levels behind them
- Dimensions
- Width: 500 mm; Depth: 700 mm
- Suitable for enclosure type
- VX; VX SE; PC
- Packaging unit
- 1 pc(s).
- Net weight
- 8.82 kg
- Gross weight
- 9.22 kg
- PCF/VE (cradle-to-gate)
- 35.1 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC000213
- ECLASS 8.0
- 27409216
- Width
- 500 mm
- Height
- 700 mm
- Perforated
- No
- Surface protection
- Galvanised
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177919396
- SAP 1200107036
- Code 81956065
Product Documentation
Document preview: Rittal 8617540 — Data Sheet (OEM)
More from Rittal
Rittal
Swing frame VX, large, 45HE 600
8619014
Rittal
Base panels on the side 100X400
2820410
Rittal
Swing frame VX, large, 36HE 600
8619012
Rittal
Mounting kit swing frame AX
2034010
Rittal
Partial Mounting Plate VX 1200X600
8617640
Rittal
SZ Adapterrail for VX-kompabilitet 200
8617760
Rittal

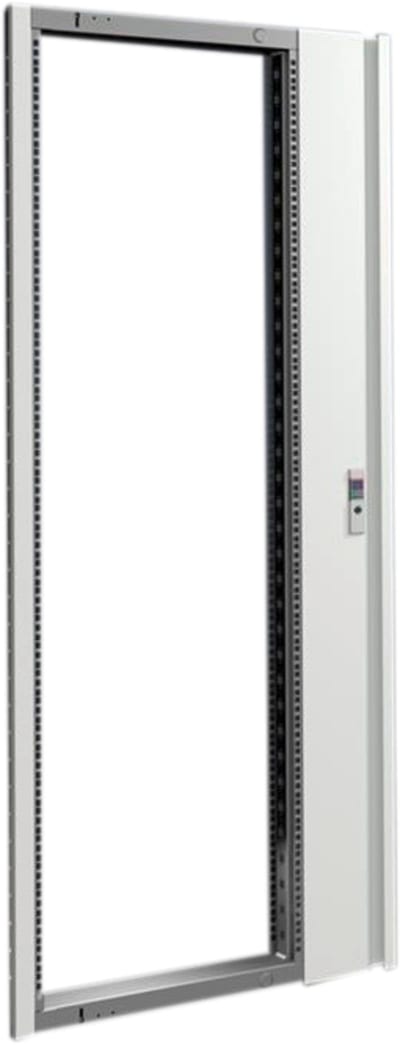

Swing frame VX, large, 36HE 800 (8619022)
Rittal

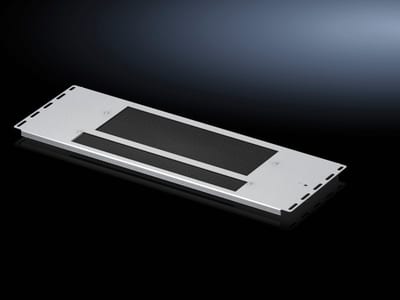

VX IT Flange Plate-module 600X237,5 moh (5301330)
