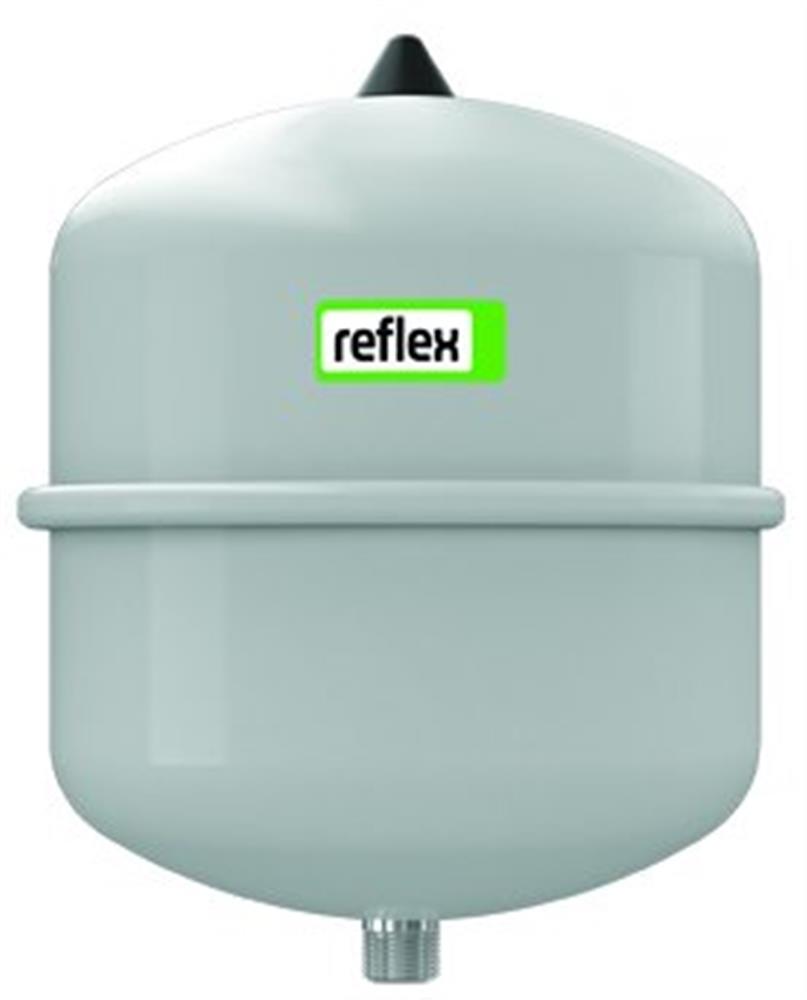

Reflex N Pressure expansion vessel - 25L, 3/4", Half membrane, No
Pricing
Request a quote
We reply within 24 hours
Product Description
Reflex N Pressure expansion vessel. Pressure expansion vessels - heating systems (Plumbing / Heat / Expansion vessels and dischargers). Principal data: container content 25 l, connection thread 3/4", membrane type Half membrane, membrane replaceable No. Supplied under manufacturer part number 8206301, EAN 4036705197918, HS code 8479.89, country of origin Poland.
Technical Specifications
- Product type
- Pressure expansion vessels - heating systems
- Product group
- Heat
- Container content
- 25 l
- Connection thread
- 3/4"
- Membrane type
- Half membrane
- Membrane replaceable
- No
- Diameter
- 308 mm
- Glycol max
- 50 %
- Height
- 481 mm
- Working pressure max
- 4 bar
- Media temperature max
- 70 °C
- Color
- Grey
- Membrane
- SBR
- Pre pressure
- 1.5 bar
- For heating systems
- Yes
- For cooling systems
- Yes
- For drinking water
- No
- Meets requirements according to DIN 1988
- No
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pallet
- Carbon footprint (EPD)
- 18.5023 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 84798997
- HS code
- 8479.89
- Manufacturer part number
- 8206301
- GTIN (EAN)
- 4036705197918
- VVS number
- 370886025
