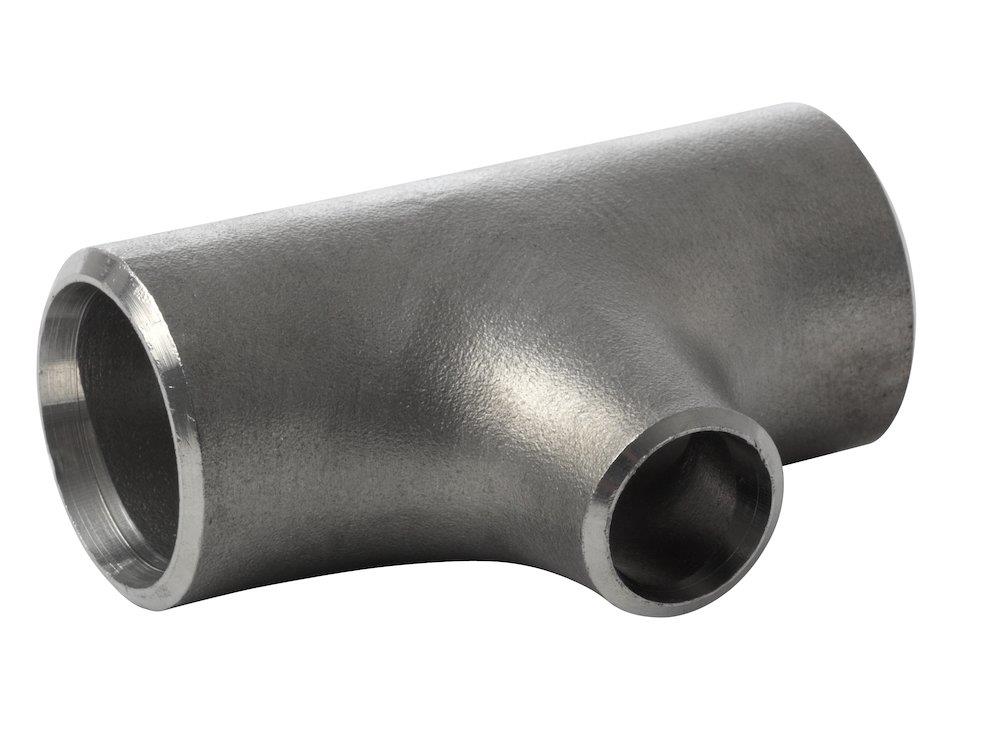

Reducing Tee, Welded and Pressed, 10" Sch 40S, Ø273.05 × Ø219.08 × 9.27 mm, 304 Stainless
Pricing
Request a quote
We reply within 24 hours
Product Description
Butt-weld reducing tee, welded and pressed construction, run outer diameter 273.05 mm, branch outer diameter 219.08 mm, wall thickness 9.27 mm (10" schedule 40S), stainless steel (304).
Technical Specifications
- Product type
- Welded tee ASTM
- Product group
- Acid-resistant and Stainless fittings
- Outer diameter
- 273.05 mm
- Outer diameter B
- 219.08 mm
- Thickness
- 9.27 mm
- Dimension
- 10"
- SCH-class
- 40S
- Dimension B
- 8"
- Length
- 432 mm
- Steel quality
- 304/304L
- Material certificate
- EN 10204 3.1
- Tolerance
- ASTM A-403 WP-W
- Outer diameter INCH-GAS-SCH
- 10” x 8” SCH 40S
- Weight
- 28.9 kg
- Thickness B
- 8.18 mm
- R dimension
- 60 mm
- F dimension
- 216 mm
- M dimension
- 203 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0803 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- Taiwan
- Customs tariff code (EU CN)
- 73072390
- HS code
- 7307.23
- Manufacturer part number
- AT15036617
Standards & Compliance
- HS Code
- 7307.23
Cross References
- MPN AT15036617
Product Documentation
