GM-2CW-90M 30W/m 230V
Pricing
Request a quote
We reply within 24 hours
Product Description

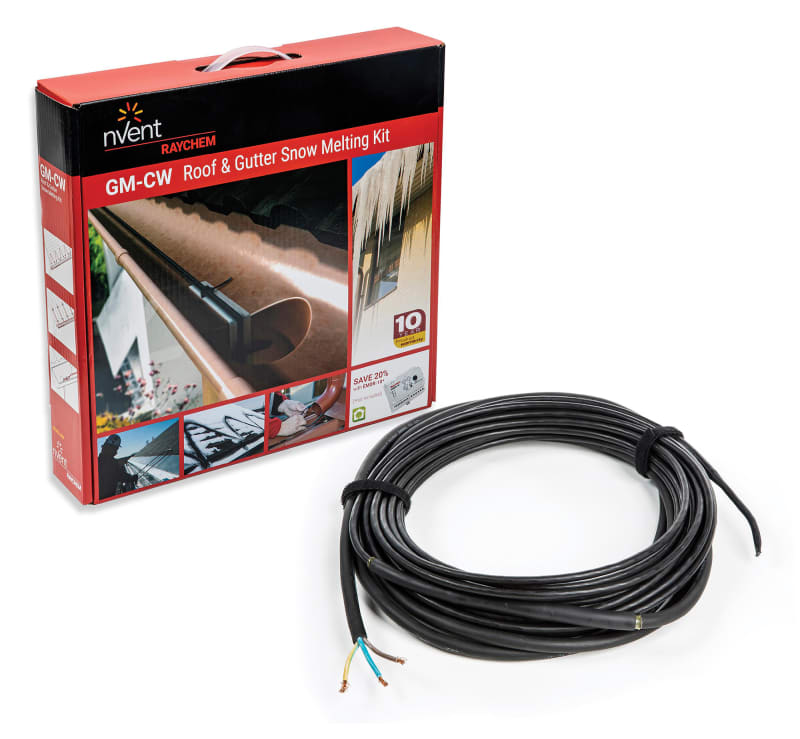

Raychem SZ18300109 GM-2CW-90m heating cable 230V 30 W/m with constant wattage for snow melting on ceiling and gutters.
Technical Specifications
- Manufacturer part number (MPN)
- SZ18300109
- EAN / GTIN
- 5414506017854
- Sales unit
- pcs
- Voltage
- 230 V
- Item Name
- GM-2CW-90M
- Length (L)
- 90 m
- Nominal Power Output @ 230V
- 30 W/m
- Power
- 180 W
- Cold Lead Length
- 5 m
- Color
- Black
- Ground Path Type
- Ground Wires
- Heating Cable Technology
- Constant Wattage
- Max Continuous Exposure Temperature, Power Off
- 80 °C
- Min Bending Radius
- 42 mm
- Min Installation Temperature
- -5 °C
- Nominal Voltage
- 400 V
- Outer Diameter (OD)
- 6.9 mm
- Outer Jacket Material
- LSZH
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 5414506017854
- SAP 1200537677
- Code 82894493
Product Documentation
More from Raychem
Raychem
GM-2CW-80M 30W/m 230V
SZ18300108
Raychem
GM-2CW-70M 30W/m 230V
SZ18300107
Raychem
230V 31W/m
31XL2-ZH
Raychem
GM-SEAL-02 Adhesive (1244-012310)
Raychem

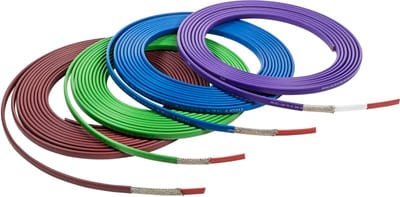

230V 15W/m
