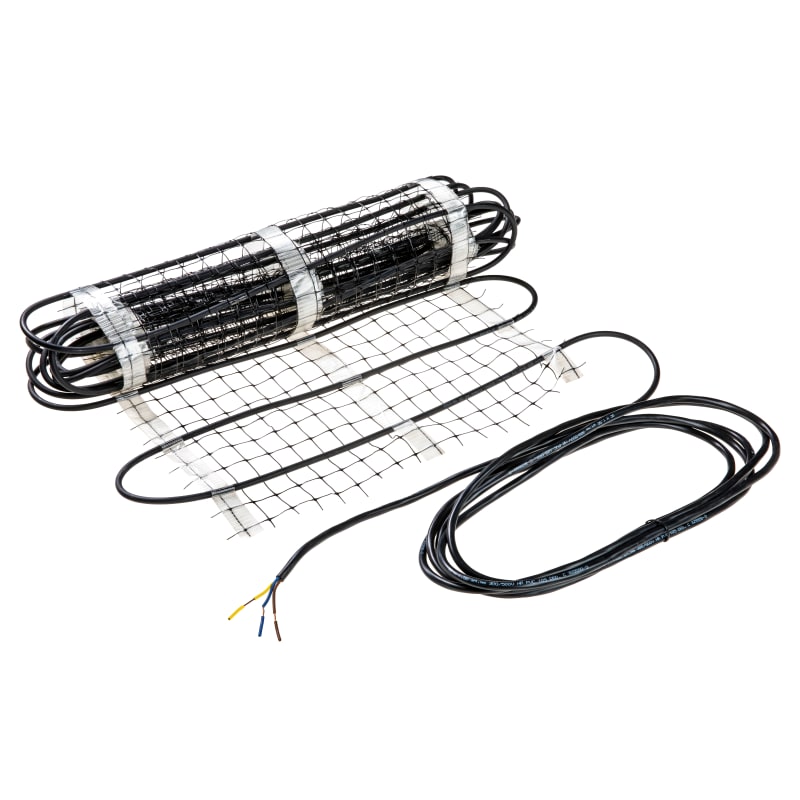

Raychem WinterGard-Mat Snow-Melting Mat 230 V, 540 W, 3 m, 300 W/m2
Pricing
Request a quote
We reply within 24 hours
Product Description
Raychem WinterGard-Mat 1244-022752 is a constant-wattage snow-melting mat rated 540 W total at 230 V, delivering 300 W/m2 over a 3 m by 600 mm mat with a 5 m cold lead. The polyolefin-jacketed construction with foil and drain-wire ground path is intended for embedded installation under paved walkways, driveways and ramps for outdoor de-icing. Two-conductor design simplifies single-ended termination.
Technical Specifications
- Manufacturer part number (MPN)
- 1244-022752
- EAN / GTIN
- 5414506024081
- Sales unit
- pcs
- Item Name
- WINTERGARD-MAT-230V-3M
- Length (L)
- 3 m
- Width (W)
- 600 mm
- Cold Lead Length
- 5 m
- Color
- Black
- Conductor Quantity
- 2
- Ground Path Type
- Foil and Drainwire
- Heating Cable Technology
- Constant Wattage
- Max Continuous Exposure Temperature, Power Off
- 65 °C
- Min Installation Temperature
- 5 °C
- Nominal Power Output @ 230V
- 300 W/m²
- Outer Diameter (OD)
- 7 mm
- Outer Jacket Material
- Polyolefin
- Supply Voltage
- 220 - 240 V
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 5414506024081
- SAP 1200679442
- Code 83145409
Product Documentation
More from Raychem
Raychem
Thermostat Frostguard-ECO (1244-013338)
Raychem
Raychem WinterGard-Mat Snow-Melting Mat 230 V, 1260 W, 7 m, 300 W/m2
1244-022755
Raychem

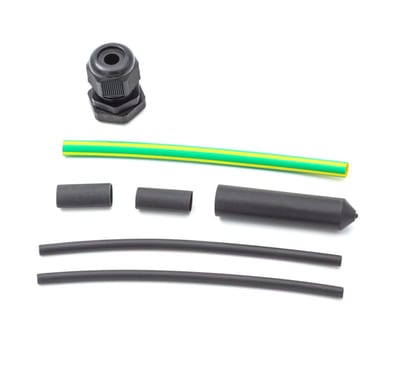

TIKOBL./END. ETL
CE20-03
Raychem
WINTERGARD-Cable-230V-1100W-38M (1244-022771)
Raychem
WINTERGARD-Cable-230V-850W-29M (1244-022770)
Raychem
WINTERGARD-Cable-230V-4000W-134M (1244-022779)
Raychem
WINTERGARD-Cable-230V-1400W-47M (1244-022772)
Raychem
WINTERGARD-Cable-230V-4500W150M (1244-022780)
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1244-022752?
- 1244-022752 can be ordered from cballast.com as a Raychem catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Raychem product?
- The manufacturer part number is 1244-022752.
- What is the HS code for 1244-022752?
- The customs tariff (HS) code for 1244-022752 is 8516.80.
- Who manufactures 1244-022752?
- 1244-022752 is a Raychem product in the HVAC & Refrigeration range.
- Is a datasheet available for 1244-022752?
- Yes — the 1244-022752 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1244-022752?
- The minimum order quantity is 1.
- Is 1244-022752 available?
- Yes — 1244-022752 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
