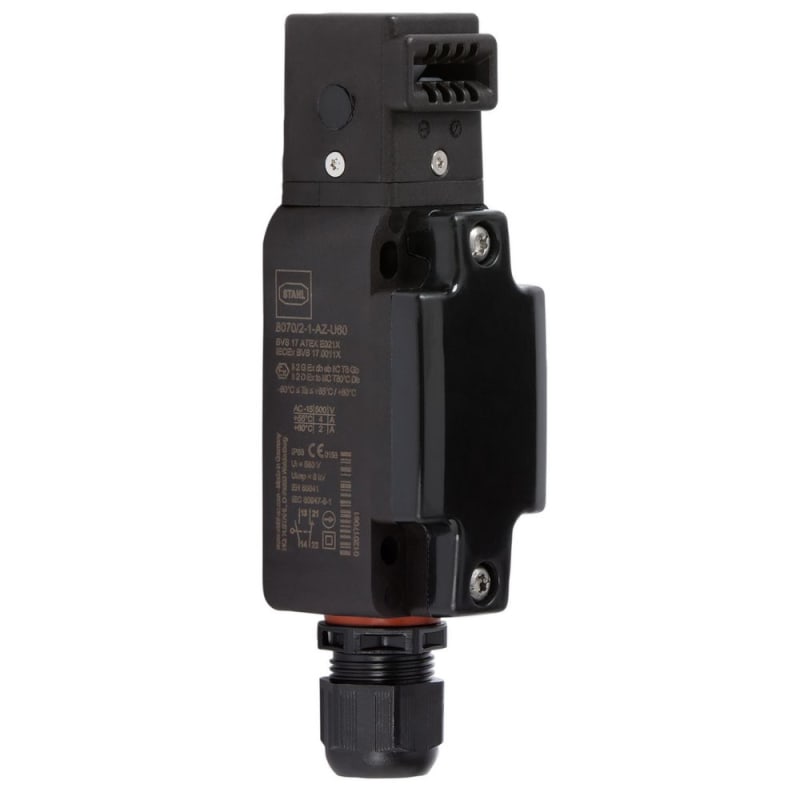

Ex Position Switch 8070/2-1-AZ-U60, safety switch
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 258226 Ex position switch, safety switch, type 8070/2-1-AZ-U60.
Technical Specifications
- Manufacturer part number (MPN)
- 258226
- EAN / GTIN
- 4046827071324
- Sales unit
- pcs
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 2 A
- Rated operation current Ie at DC-13, 230 V
- 2 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 2 A
- Rated operation current Ie at AC-15, 24 V
- 2 A
- Rated operation current Ie at DC-13, 125 V
- 2 A
- Rated operation current Ie at DC-13, 24 V
- 2 A
- Width sensor
- 42 mm
- Height of sensor
- 45.5 mm
- Length of sensor
- 6.34 mm
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827071324
- SAP 1200886627
- Code 84128591
Product Documentation
More from R. Stahl Scandinavia As
R. Stahl Scandinavia As
Single-Channel Safety Barrier 9001/01-086-150-101
158418
R. Stahl Scandinavia As
Ex Position Switch 8060/2-4-R-60, roller plunger
268417
R. Stahl Scandinavia As
Single-Channel Safety Barrier 9001/00-280-020-101
158650
R. Stahl Scandinavia As
Ex Position Switch 8074/2-3-DL-40, long rotary lever
257208
R. Stahl Scandinavia As
8573/14-300 Coupler socket
243175
R. Stahl Scandinavia As

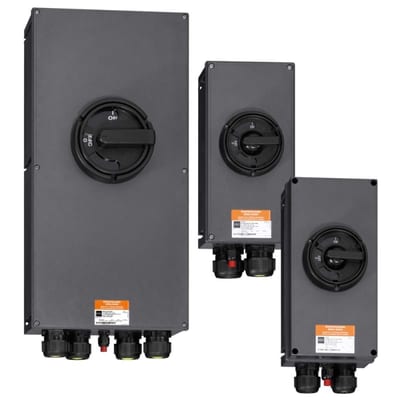

Ex Safety Switch 8146/5-V37-310-51-0010, 180 A
