Ex Position Switch 8060/2-4-WPH-60, parallel roller lever
Pricing
Request a quote
We reply within 24 hours
Product Description

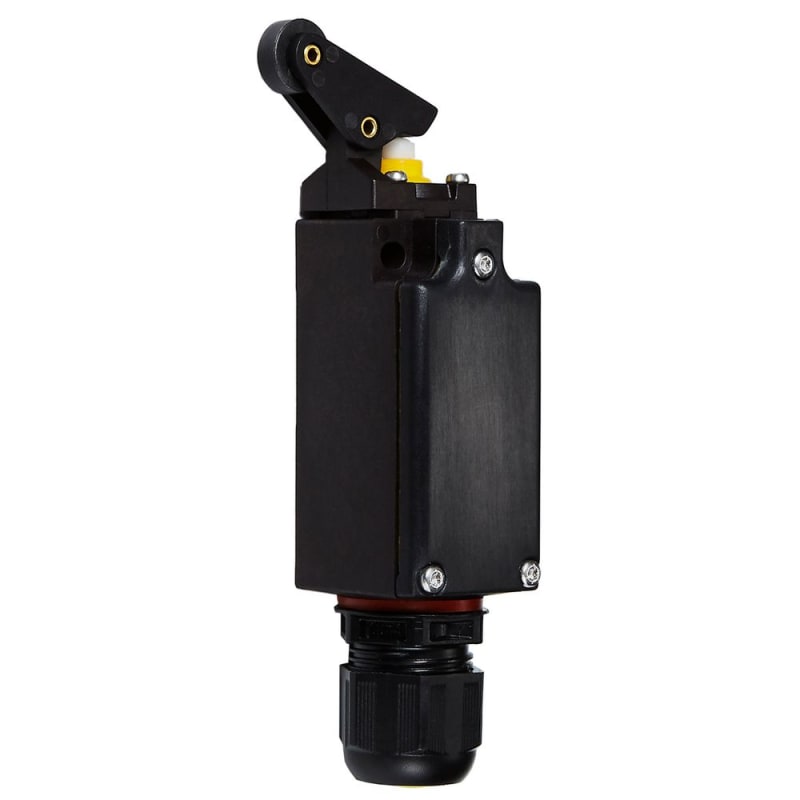

R. Stahl Scandinavia As 268415 Ex position switch, parallel roller lever, type 8060/2-4-WPH-60.
Technical Specifications
- Manufacturer part number (MPN)
- 268415
- EAN / GTIN
- 4046827157752
- Sales unit
- pcs
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 2 A
- Rated operation current Ie at DC-13, 230 V
- 2 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of control element
- Square roller lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 2 A
- Rated operation current Ie at AC-15, 24 V
- 2 A
- Rated operation current Ie at DC-13, 125 V
- 2 A
- Rated operation current Ie at DC-13, 24 V
- 2 A
- Width sensor
- 45.5 mm
- Height of sensor
- 32 mm
- Length of sensor
- 5.39 mm
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827157752
- SAP 1200886771
- Code 84128706
