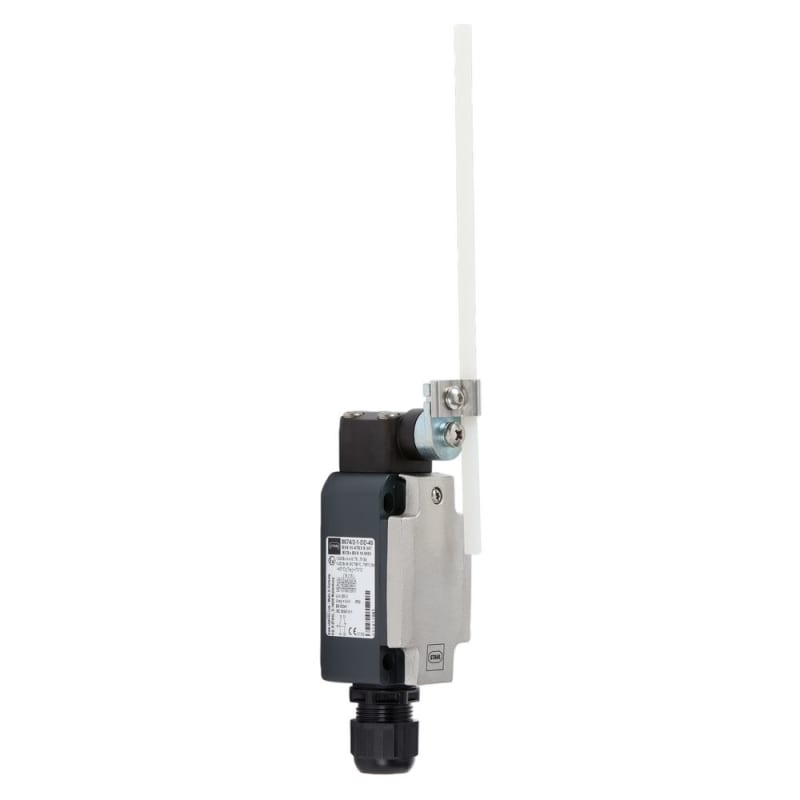

Ex Position Switch 8074/2-3-DD-40, rod lever
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 257210 Ex position switch, rod lever, type 8074/2-3-DD-40.
Technical Specifications
- Manufacturer part number (MPN)
- 257210
- EAN / GTIN
- 4046827148965
- Sales unit
- pcs
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 4 A
- Rated operation current Ie at DC-13, 230 V
- 4 A
- Housing material
- Metal
- Suitable for safety functions
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of control element
- Actuating rod
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 4 A
- Rated operation current Ie at AC-15, 24 V
- 4 A
- Rated operation current Ie at DC-13, 125 V
- 4 A
- Rated operation current Ie at DC-13, 24 V
- 4 A
- Width sensor
- 40 mm
- Height of sensor
- 50.5 mm
- Length of sensor
- 10.24 mm
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827148965
- SAP 1200886714
- Code 84128615
Product Documentation
More from R. Stahl Scandinavia As
R. Stahl Scandinavia As
Two-Channel Safety Barrier 9002/77-093-300-001
158897
R. Stahl Scandinavia As
Ex Position Switch 8060/2-3-DS-60, adjustable rotary lever
254893
R. Stahl Scandinavia As
Ex Position Switch 8074/2-2-D-40, rotary lever
258058
R. Stahl Scandinavia As
Ex Position Switch 8060/2-1-D-60, rotary arm
254889
R. Stahl Scandinavia As

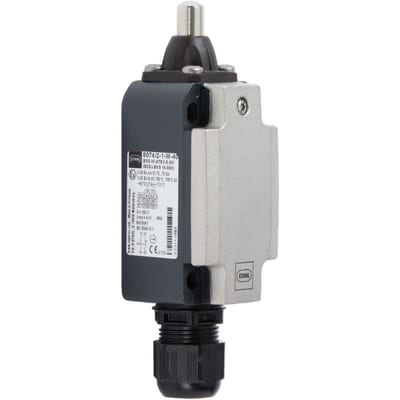

Ex Position Switch 8074/2-3-W-40, plunger
257203
R. Stahl Scandinavia As

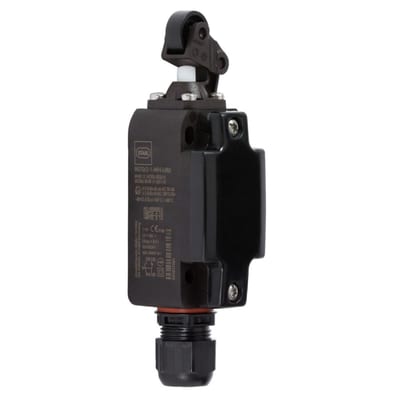

Ex Position Switch 8070/2-5-WH-U60, roller lever
268113
R. Stahl Scandinavia As

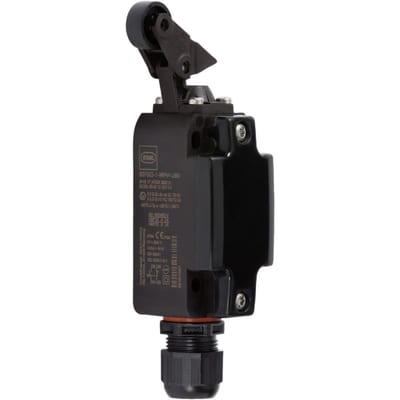

Ex Position Switch 8070/2-2-WPH-U60, parallel roller lever
