R. Stahl Scandinavia As
6002/4128-0101 LED 22W
Part number283931EAN / GTIN7070923021300HS code8543.70
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

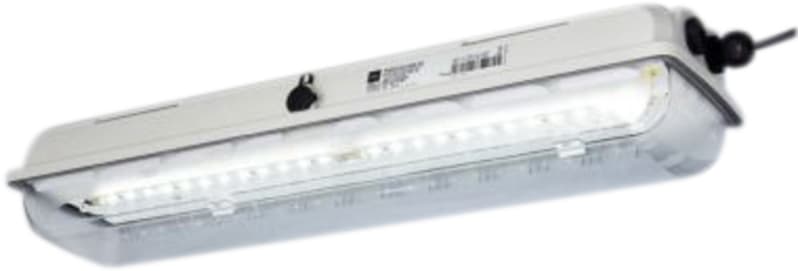

R. Stahl Scandinavia As 283931 Ex LED luminaire.
Technical Specifications
- Manufacturer part number (MPN)
- 283931
- EAN / GTIN
- 7070923021300
- HS code
- 8543.70
- Sales unit
- pcs
- Power
- 22 W
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- No
- Lamp type
- LED exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Housing material
- Plastic
- Material cover
- Plastic, structured
- Voltage type
- AC/DC
- Nominal voltage
- 100–240 V
- Type of control gear
- LED operating device voltage-controlled
- With control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- > 80° - Extreme wide beam
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Max. system power
- 22 W
- Rated luminous flux according to IEC 62722-2-1
- 2910 lm
- Colour of light
- White
- Width
- 184 mm
- Height/depth
- 125 mm
- Length
- 700 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 5
- Conductor cross section
- 6 mm²
- Connection type
- Push-in clamp
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7070923021300
- SAP 1200486680
- Code 82577836
Product Documentation
Document preview: 6002/4128-0101 LED 22W (283931) — Specification sheet
