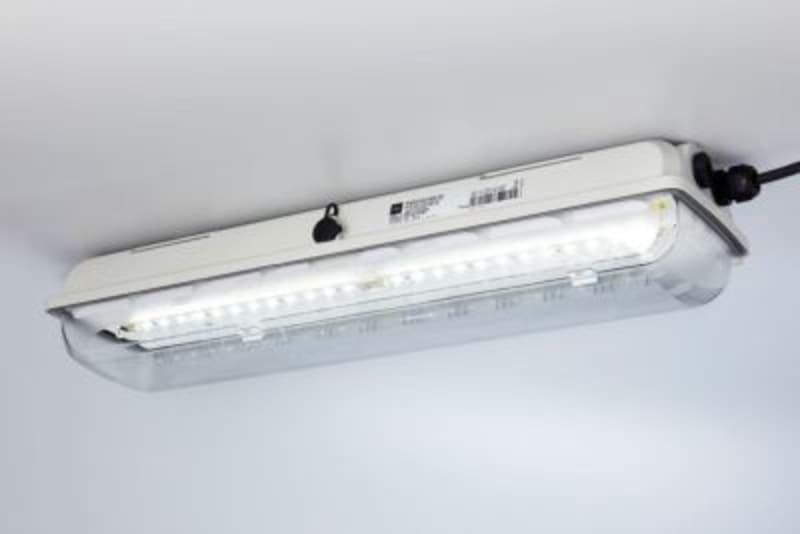

6002/4128 LED 22W 2910LM 5000K (272389)
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 272389 Ex LED luminaire.
Technical Specifications
- Manufacturer part number (MPN)
- 272389
- EAN / GTIN
- 7070923021195
- HS code
- 8543.70
- Sales unit
- pcs
- Power
- 22 W
- Mounting method
- Wall-/ceiling mounting
- Adjustable
- No
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Housing material
- Plastic
- Material cover
- Plastic, transparent
- Voltage type
- AC/DC
- Type of control gear
- LED operating device voltage-controlled
- With control gear
- Yes
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- > 80° - Extreme wide beam
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- II
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Max. system power
- 22 W
- Rated luminous flux according to IEC 62722-2-1
- 2910 lm
- Colour of light
- White
- Width
- 184 mm
- Height/depth
- 125 mm
- Length
- 700 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 5
- Conductor cross section
- 6 mm²
- Connection type
- Push-in clamp
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7070923021195
- SAP 1200870005
- Code 84106099
Product Documentation
