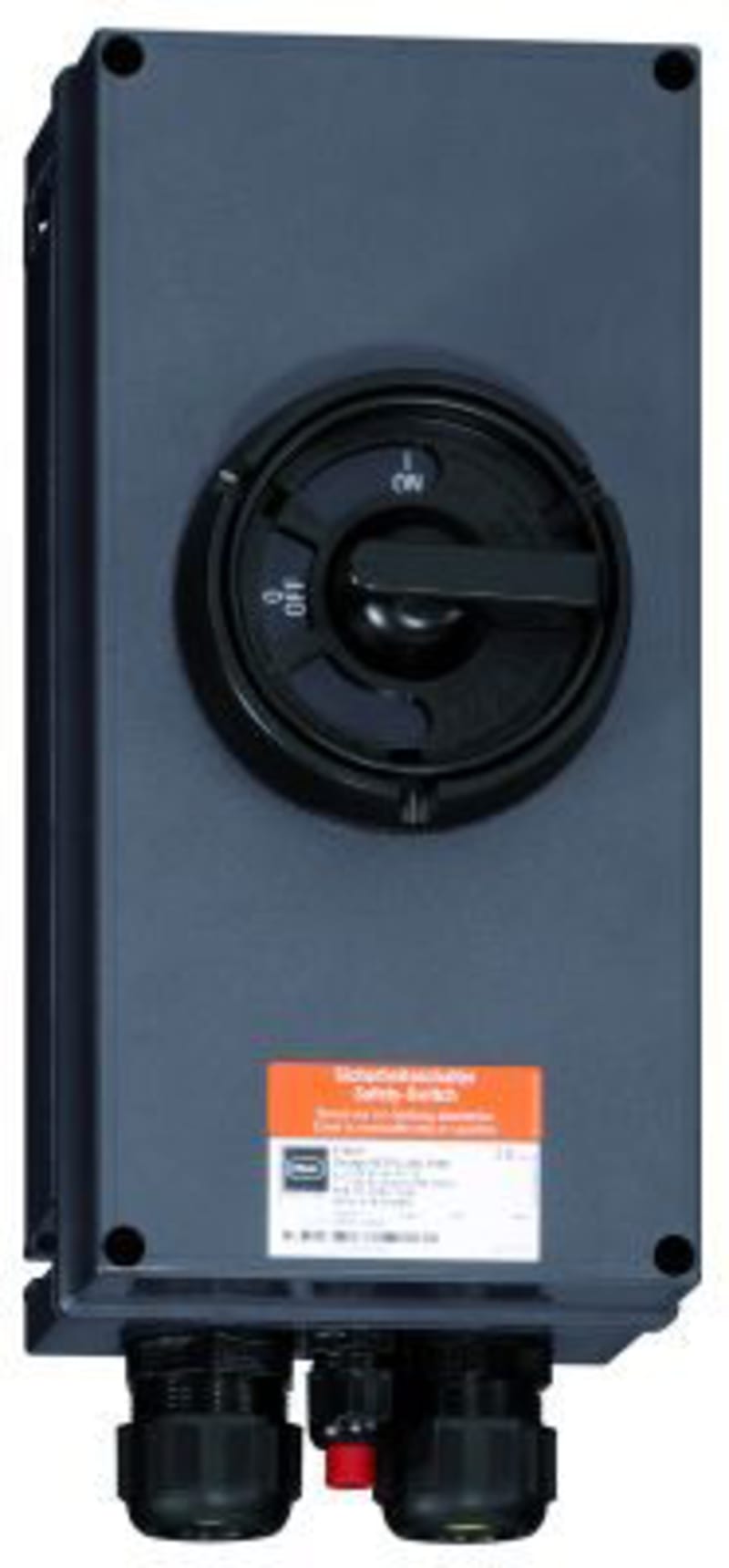

Ex Safety Switch 8146/5-V37-305-51-0010-K, 40A 3P 690 V
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 8146/5-V37-305-51-0010 Ex Safety switch type 8146/5-V37-305-51-0010-K, 40A 3P 690 V.
Technical Specifications
- Manufacturer part number (MPN)
- 8146/5-V37-305-51-0010
- EAN / GTIN
- 7070923015408
- Sales unit
- pcs
- Voltage
- 690 V
- Rated current
- 40 A
- Number of poles
- 3P
- Mounting method
- Surface mounting
- Protection class according to IEC 61140
- II
- Width
- 170 mm
- Height
- 340 mm
- Depth
- 176 mm
- Connection type
- Screw connection
- Housing colour
- Grey
- Voltage type
- AC
- Rated voltage
- 230 V
- Ex-class
- IIC
- Padlock locking
- Yes
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Housing material
- Plastic
- Temperature class according to directive 94/9/EC
- T6
- Ambient temperature
- -40–48 °C
- Degree of protection (IP)
- IP66
- For Ex-zone gas
- 1, 2
- Version as emergency stop installation
- No
- Type of control element
- Turn button
- Connectable conductor cross section solid-core
- 10–25 mm²
- Connectable conductor cross section multi-wired
- 10–25 mm²
- For Ex-zone dust
- 21, 22
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 7070923015408
- SAP 1000685518
- Code 862679
Product Documentation
