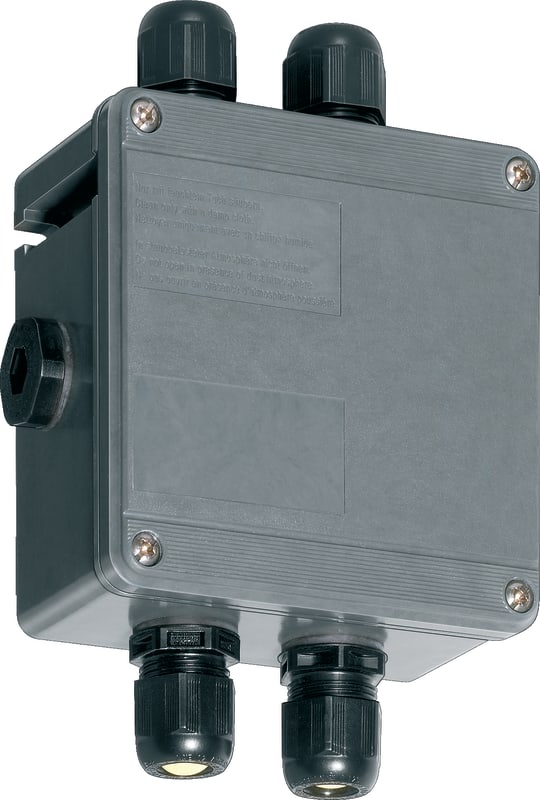

R. STAHL 8118/121-807 Ex e Junction Box, GRP IP66, 115×115×64 mm, 8× 6 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
R. STAHL Series 8118 increased-safety (Ex e) junction box, type 8118/121-807, article number 133126. Enclosure in glass-fibre reinforced polyester resin (GRP), dark grey, degree of protection IP66. Equipped with 8 mantle terminals for 6 mm² conductors; cable entries: 4 × M25×1.5 polyamide cable gland (clamping range 7–17 mm) + 2 × M25×1.5 stopping plug. Rated for use in Zones 1, 2, 21 and 22. Enclosure dimensions 115×115×64 mm; weight 0.60 kg; rated operational voltage 0–750 V AC; ambient temperature −60 °C to +55 °C (T5). Certified ATEX II 2 G Ex eb IIC T6/T5 Gb and II 2 D Ex tb IIIC T80 °C/T95 °C Db (PTB 99 ATEX 3103) and IECEx Ex eb IIC T6/T5 Gb (PTB 06.0026), with DNV ship approval. STAHL article 133126.
Technical Specifications
- Manufacturer
- R. STAHL
- Product type
- 8118/121-807
- Article number
- 133126
- Enclosure
- Glass-fibre reinforced polyester resin (GRP), dark grey
- Dimensions (W×H×D)
- 115×115×64 mm
- Weight
- 0.60 kg
- Degree of protection
- IP66 (IEC 60529)
- Terminals
- 8 × mantle terminal, 6 mm²
- Cable entries
- 4 × M25×1.5 polyamide cable gland (clamping range 7–17 mm) + 2 × M25×1.5 stopping plug
- Application zones
- 1, 2, 21, 22
- ATEX marking (gas)
- II 2 G Ex eb IIC T6/T5 Gb
- ATEX marking (dust)
- II 2 D Ex tb IIIC T80 °C/T95 °C Db
- IECEx marking
- Ex eb IIC T6/T5 Gb
- Certificates
- ATEX PTB 99 ATEX 3103, IECEx PTB 06.0026
- Ambient temperature
- −60 °C to +55 °C (T5)
- Rated operational voltage
- 0–750 V AC
- Ship approval
- DNV
- Additional certification
- Brazil (ULB), India (PESO), Korea (KTL)
- Flammability
- IEC/EN 60695
- Number of connection clamps
- 8
- Max. conductor cross section
- 6 mm²
- Length
- 99 mm
- Width
- 115 mm
- Depth
- 64 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Number of inlets
- 6
- Type of inlet
- Gland nut
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 750 V
- Explosion-tested version
- Yes
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Country of origin
- Germany
Standards & Compliance
- Standard
- IEC/EN 60079-0, IEC/EN 60079-7 (Ex e), IEC/EN 60079-31 (Ex t), IEC 60529 (IP)
- Material
- Glass-fibre reinforced polyester resin (GRP), dark grey
- Temperature Range
- −60 °C to +55 °C (T5)
- IP Rating
- IP66
- Classification / Approval
- ATEX II 2 G Ex eb IIC T6/T5 Gb; II 2 D Ex tb IIIC T80 °C/T95 °C Db (PTB 99 ATEX 3103); IECEx Ex eb IIC T6/T5 Gb (PTB 06.0026); DNV ship approval
- HS Code
- 8536.90
Cross References
- EAN 4046827010941
- SAP 1000036710
- Code 8769659
