Pressed Loose Flange DN200, PN10, for Ø204 mm Pipe, 304 Stainless
Pricing
Request a quote
We reply within 24 hours
Product Description

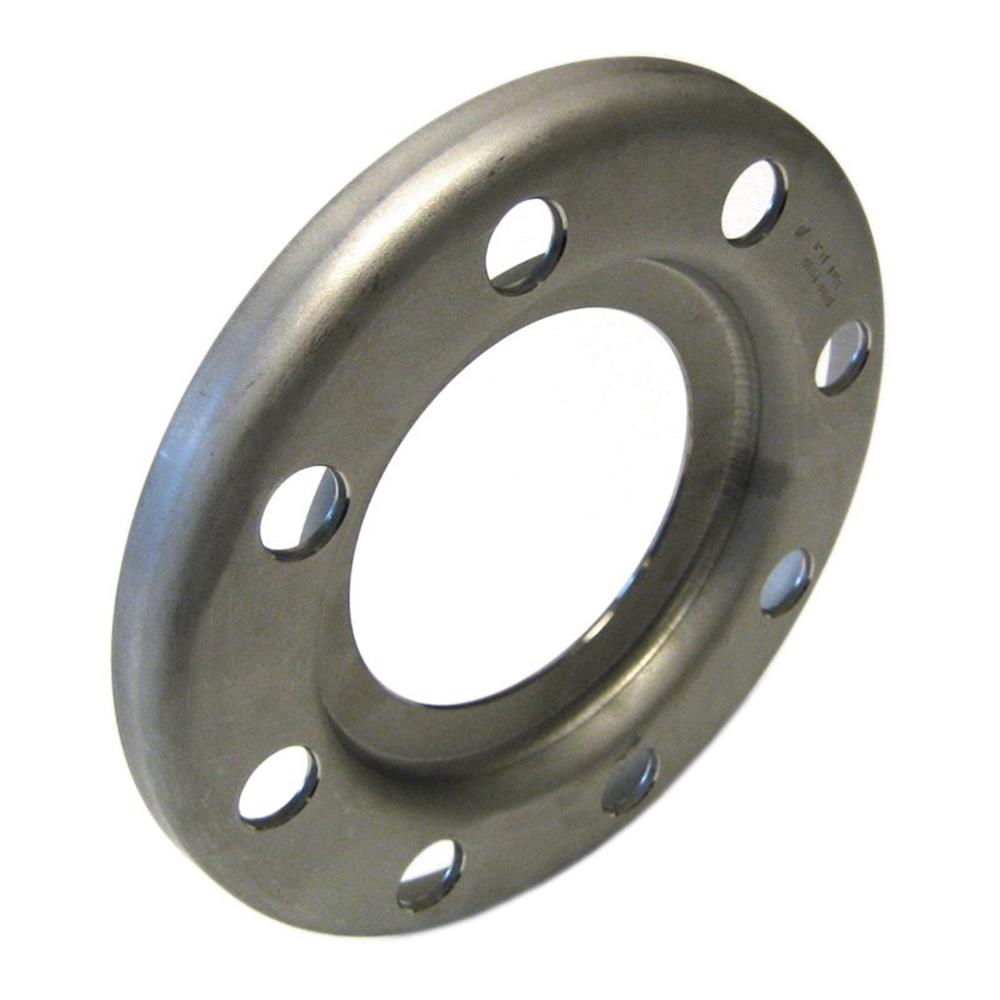

Pressed loose (lap-joint) flange DN200, PN10, for pipe outer diameter 204 mm, stainless steel (304).
Technical Specifications
- Product type
- Loose flanges DIN/ISO
- Product group
- Acid-resistant and Stainless fittings
- DN dimension
- 200
- Pressure PN
- 10 bar
- For pipes with outer diameter
- 204 mm
- Number of bolt holes
- 8 pcs
- Bolt dimension
- 20 mm
- Bolt hole diameter
- 22 mm
- Bolt circle diameter
- 295 mm
- Flange thickness
- 28 mm
- Diameter
- 340 mm
- Steel quality
- 4307/304L
- Tolerance
- PN10
- Material certificate
- EN 10204 3.1
- Weight
- 2.46 kg
- Inner diameter
- 212 mm
- A dimension
- 245 mm
- Thickness
- 6 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0101 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73072100
- HS code
- 7307.21
- Manufacturer part number
- GL70058005
- VVS number
- 032151204
Standards & Compliance
- HS Code
- 7307.21
Cross References
- MPN GL70058005
Product Documentation
