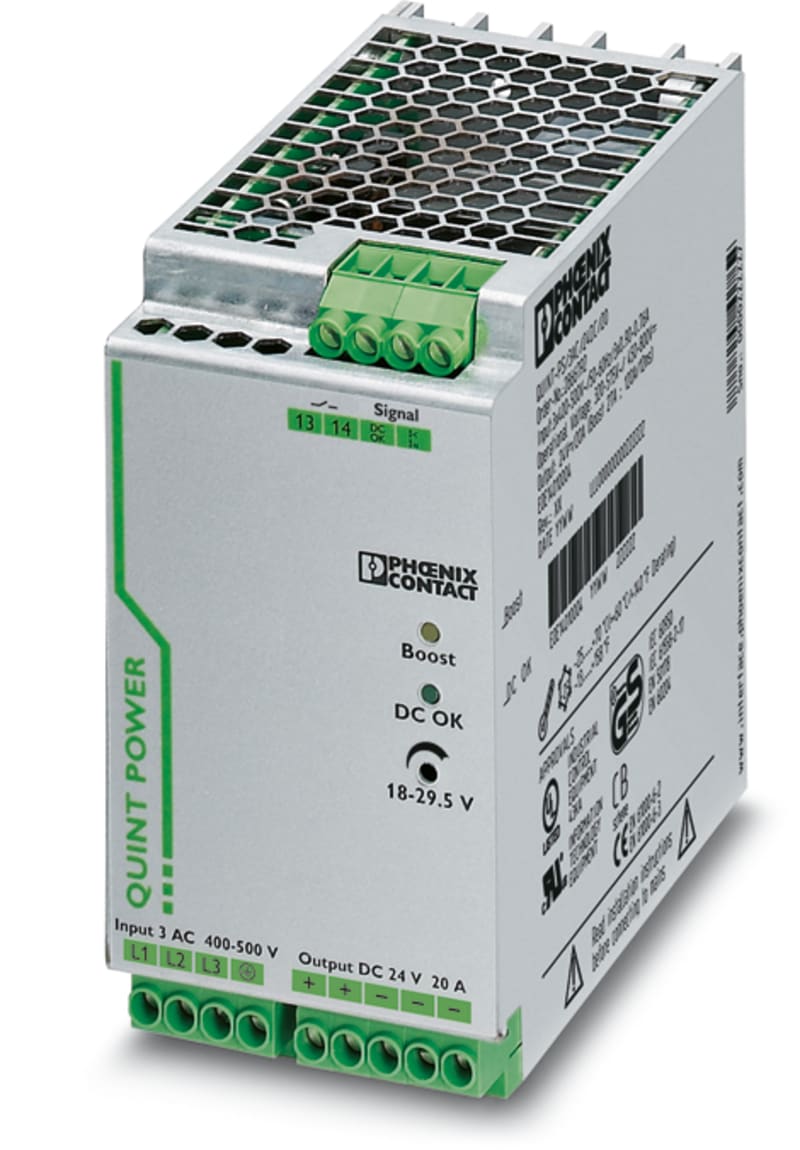

Power supply QUINT-PS/3AC/24DC/20
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT-PS/3AC/24DC/20 Primary-switched power supply, QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/3AC/24DC/20
- EAN / GTIN
- 4046356152907
- HS code
- 8536.90
- Sales unit
- pcs
- Product type
- Power Supply Unit
- Manufacturer order number
- 2866792
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 18–29.5 V
- 2nd secondary output voltage
- 18 V
- Max. output current 1
- 26 A
- Max. output current 2
- 26 A
- Max. output current 3
- 120 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 20 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 400–500 V
- Rated supply voltage AC 60 Hz
- 400–575 V
- Rated supply voltage DC
- 450–800 V
- Output voltage stabilized
- Yes
- Power consumption
- 783 VA
- Power output
- 480 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 3.8
- Built-in width
- 69 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 69 mm
- Height
- 130 mm
- Depth
- 122 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356152907
- SAP 1000235797
- Code 81026358
Product Documentation
