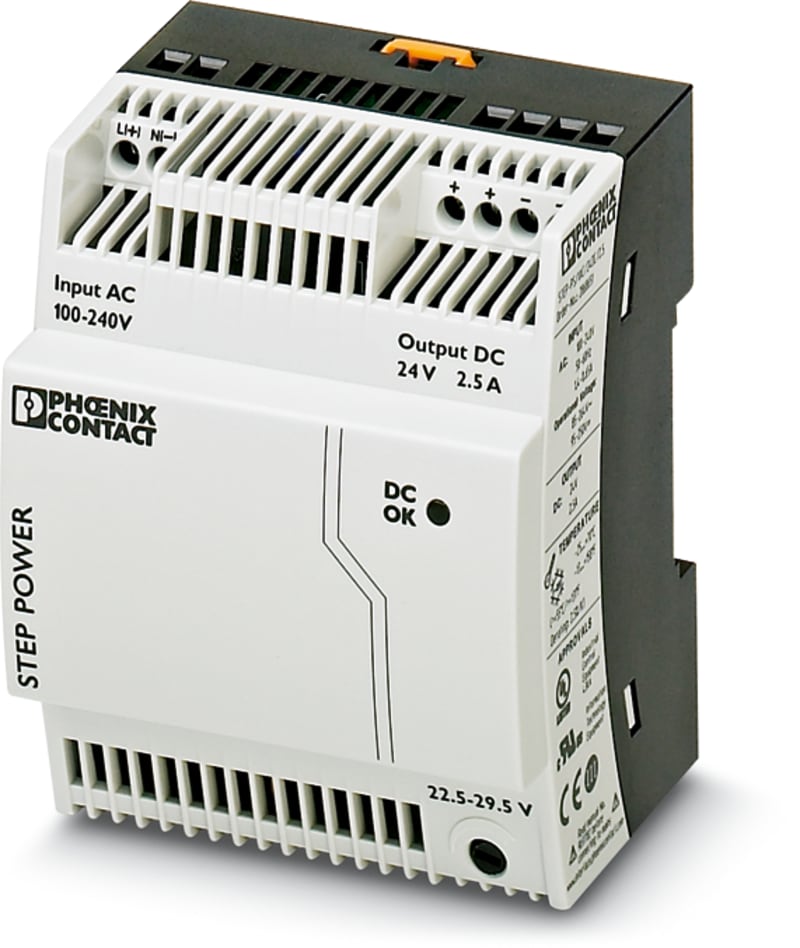

Power supply STEP-PS/ 1AC/24DC/2.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact STEP-PS/ 1AC/24DC/2.5 Power supply - STEP-PS/ 1AC/24DC/2.5.
Technical Specifications
- Manufacturer part number (MPN)
- STEP-PS/ 1AC/24DC/2.5
- EAN / GTIN
- 4046356163224
- Sales unit
- pcs
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 22.5–29.5 V
- 2nd secondary output voltage
- 22.5 V
- Max. output current 1
- 2.5 A
- Max. output current 2
- 2.75 A
- Max. output current 3
- 4.4 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 2.5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Rated supply voltage DC
- 95–250 V
- Output voltage stabilized
- Yes
- Power consumption
- 124.3 VA
- Power output
- 60 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- Yes
- Suitable for distribution board
- Yes
- Width in number of modular spacings
- 4
- Built-in width
- 72 mm
- Built-in height
- 90 mm
- Direct mounting possible
- Yes
- Width
- 72 mm
- Height
- 90 mm
- Depth
- 61 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- Yes
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356163224
- SAP 1000283409
- Code 8289378
Product Documentation
More from Phoenix Contact
Phoenix Contact
Opplagsbukk (AB/SS-M)
Phoenix Contact
Installation Ground Terminal Block (UKH 50-PE/N)
UKH 50-PE/N
Phoenix Contact
Phoenix Contact 1320200 Stainless Steel Cable Tie AISI 316, 4.6 x 201 mm
Phoenix Contact
Marker for Terminal Blocks (UC-TM 8)
UC-TM 8
Phoenix Contact
Marker for Terminal Blocks (UM1-TMF (5X5))
Phoenix Contact
JUMPER LINK FOR 6 mm² Terminal 10-Pole
FB 10- 8-EX
Phoenix Contact
Knife-Disconnect Terminal Block (PT 2,5-TWIN-MT BU)
Phoenix Contact
CABLE TRUNKING, BLUE, B 100 MM, H 100 MM (cd 100X100 Bu)
CD 100X100 BU
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy STEP-PS/ 1AC/24DC/2.5?
- STEP-PS/ 1AC/24DC/2.5 can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is STEP-PS/ 1AC/24DC/2.5.
- What is the HS code for STEP-PS/ 1AC/24DC/2.5?
- The customs tariff (HS) code for STEP-PS/ 1AC/24DC/2.5 is 8504.40.
- Who manufactures STEP-PS/ 1AC/24DC/2.5?
- STEP-PS/ 1AC/24DC/2.5 is a Phoenix Contact product in the Control & Automation range.
- Is a datasheet available for STEP-PS/ 1AC/24DC/2.5?
- Yes — the STEP-PS/ 1AC/24DC/2.5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for STEP-PS/ 1AC/24DC/2.5?
- The minimum order quantity is 1.
- Is STEP-PS/ 1AC/24DC/2.5 available?
- Yes — STEP-PS/ 1AC/24DC/2.5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
