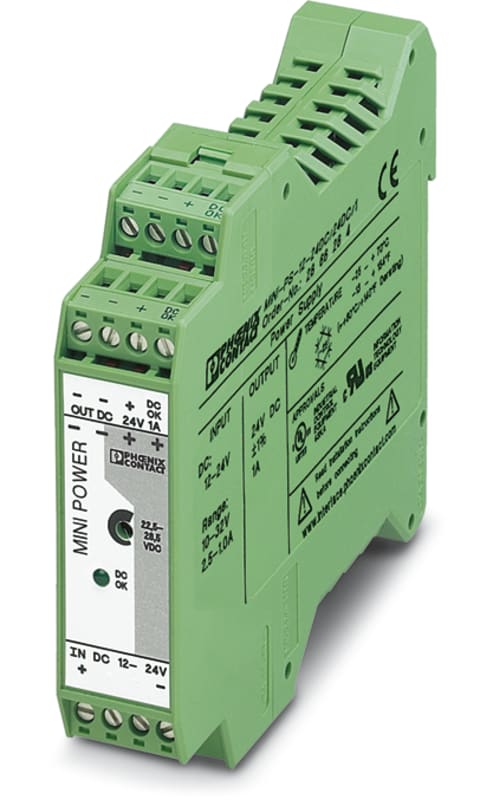

DC/DC Converter (MINI-PS- 12- 24DC/24DC/1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact MINI-PS- 12- 24DC/24DC/1 DC/DC-converter - MINI-PS- 12- 24DC/24DC.
Technical Specifications
- Manufacturer part number (MPN)
- MINI-PS- 12- 24DC/24DC/1
- EAN / GTIN
- 4017918960902
- Sales unit
- pcs
- Rated current
- 1 A
- Product type
- DC/DC Converter
- Manufacturer order number
- 2866284
- Voltage type (supply voltage)
- DC
- 1st secondary output voltage
- 22.5–28.5 V
- Max. output current 1
- 1 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 1 A
- Short-circuit-proof
- Yes
- Rated supply voltage DC
- 10–32 V
- Output voltage stabilized
- Yes
- Power output
- 24 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Suitable for distribution board
- No
- Built-in height
- 99 mm
- Direct mounting possible
- No
- Width
- 22.5 mm
- Height
- 99 mm
- Depth
- 107 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4017918960902
- SAP 1000257890
- Code 81144455
Product Documentation
More from Phoenix Contact
Phoenix Contact

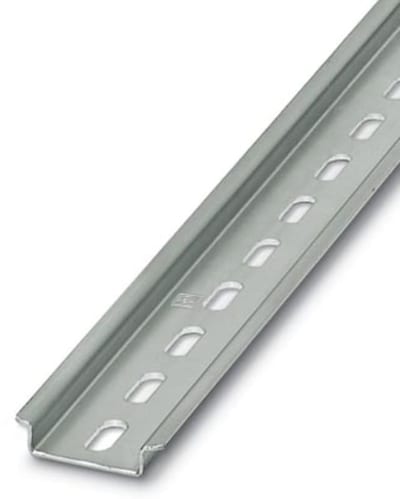

DIN Rail, Perforated (NS 35/ 7,5 PERF 2000mm)
NS 35/ 7,5 PERF 2000MM
Phoenix Contact

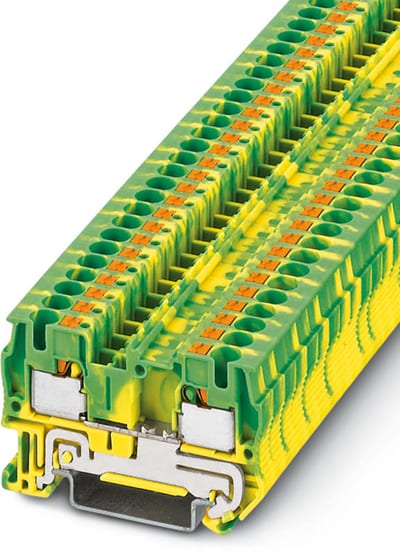

Ground Modular Terminal Block (PT 4-Pe)
