Power supply TRIO-PS-2G/1AC/24DC/10
Pricing
Request a quote
We reply within 24 hours
Product Description

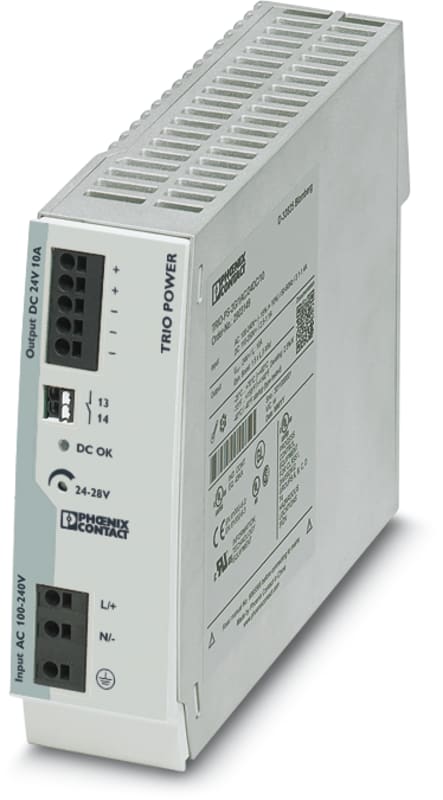

Phoenix Contact TRIO-PS-2G/1AC/24DC/10 Primary-switched power supply TRIO POWER with push-in-connection for rail mounting, input 1-phase, output 24 V DC / 10 A.
Technical Specifications
- Manufacturer part number (MPN)
- TRIO-PS-2G/1AC/24DC/10
- EAN / GTIN
- 4046356960854
- Sales unit
- pcs
- Product type
- Power Supply Unit
- Manufacturer order number
- 2903149
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 24–28 V
- 2nd secondary output voltage
- 24 V
- Max. output current 1
- 15 A
- Max. output current 2
- 15 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 10 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Rated supply voltage DC
- 110–275 V
- Output voltage stabilized
- Yes
- Power consumption
- 285 VA
- Power output
- 240 W
- Stabilized
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 2.3
- Built-in width
- 42 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 42 mm
- Height
- 130 mm
- Depth
- 160 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356960854
- SAP 1000721922
- Code 8703607
Product Documentation
