Phoenix Contact

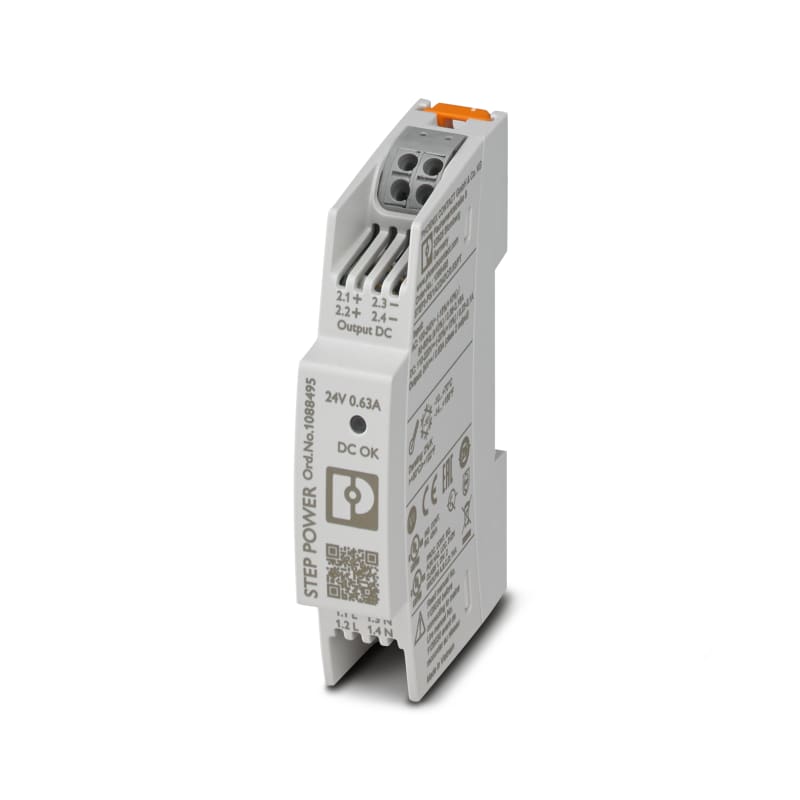

Phoenix Contact STEP3-PS/1AC/24DC/0
Part numberSTEP3-PS/1AC/24DC/0.63/PTEAN / GTIN4055626889436HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact STEP3-PS/1AC/24DC/0.63/PT STEP3-PS/1AC/24DC/0.63/PT.
Technical Specifications
- Manufacturer part number (MPN)
- STEP3-PS/1AC/24DC/0.63/PT
- EAN / GTIN
- 4055626889436
- Sales unit
- pcs
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24 V
- Max. output current 1
- 0.63 A
- Secondary voltage adjustable
- No
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 0.63 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–264 V
- Rated supply voltage AC 60 Hz
- 85–264 V
- Rated supply voltage DC
- 88–350 V
- Output voltage stabilized
- Yes
- Power output
- 15 W
- Stabilized
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- Yes
- Built-in width
- 18 mm
- Built-in height
- 90 mm
- Direct mounting possible
- Yes
- Width
- 18 mm
- Height
- 90 mm
- Depth
- 61 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Vietnam
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626889436
- SAP 1200628996
- Code 83035958
Product Documentation
Document preview: Phoenix Contact STEP3-PS/1AC/24DC/0 — Specification sheet
