Phoenix Contact

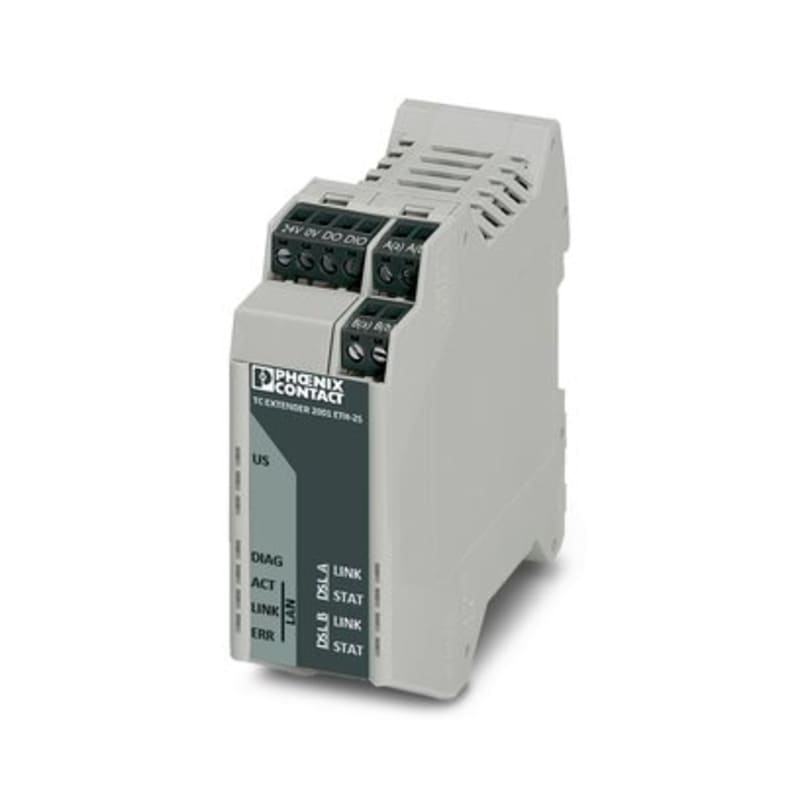

Unmanaged Ethernet-Ekstender 30MBIT/s
Part numberTC EXTENDER 2001 ETH-2SEAN / GTIN4055626162560HS code8517.62
Sensors & Instrumentation
Sensor Cables & Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact TC EXTENDER 2001 ETH-2S TC EXTENDER 2001 ETH-2S.
Technical Specifications
- Manufacturer part number (MPN)
- TC EXTENDER 2001 ETH-2S
- EAN / GTIN
- 4055626162560
- Sales unit
- pcs
- Product type
- Modem
- Manufacturer order number
- 2702409
- Width
- 35 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Construction
- External device
- Firewall
- No
- Number of digital inputs
- 1
- Number of digital outputs
- 1
- Transmission rate
- 64 kBit/s
- Supply voltage
- 18–30 V
- Bus type/interface
- Ethernet
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- Radio standard eGPRS
- No
- Radio standard HSUPA
- No
- Radio standard HSDPA
- No
- Radio standard HSPA+
- No
- Radio standard CDMA
- No
- Radio standard EV-DO
- No
- Radio standard LTE
- No
- Radio standard WAN ADSL
- No
- Radio standard WAN ADSL2
- No
- Radio standard WAN SHDSL
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4055626162560
- SAP 1200659550
- Code 83093422
Product Documentation
Document preview: Unmanaged Ethernet-Ekstender 30MBIT/s (tc Extender 2001 ETH-2S) — Specification sheet
More from Phoenix Contact
Phoenix Contact

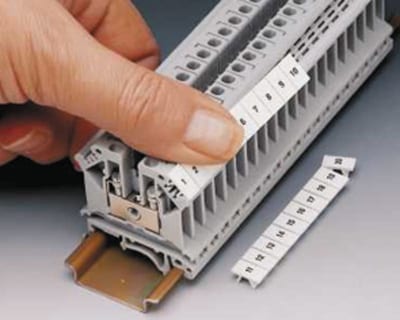

Marking Strip ZB6 LGS 111-120
ZB 6,LGS: 111-120
Phoenix Contact
M12 Cable - 5PIN,MALE,5M,PUR
SAC-5P- 5,0-PUR/M12FS
Phoenix Contact

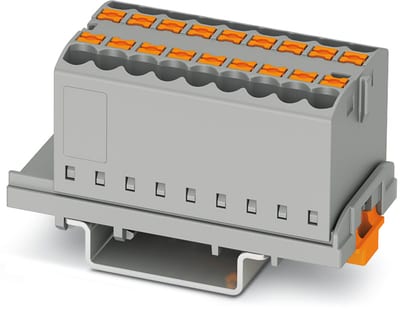

Distribution Block (PTFIX 6X2,5-NS35 BU)
Phoenix Contact

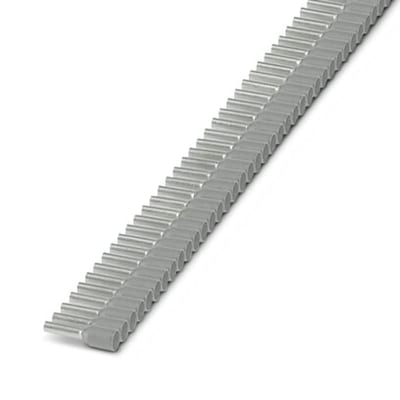

Ferrul, band, 0,75mm² grey
1212522
Phoenix Contact

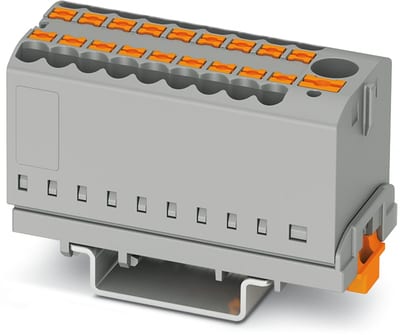

Distribution Block (PTFIX 6/6X2,5-NS35 BU)
Phoenix Contact

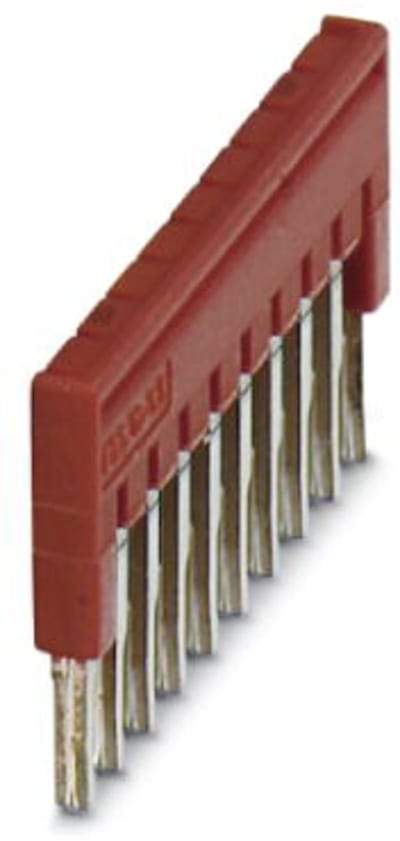

Plugbro (FBS 10-3,5)
Phoenix Contact

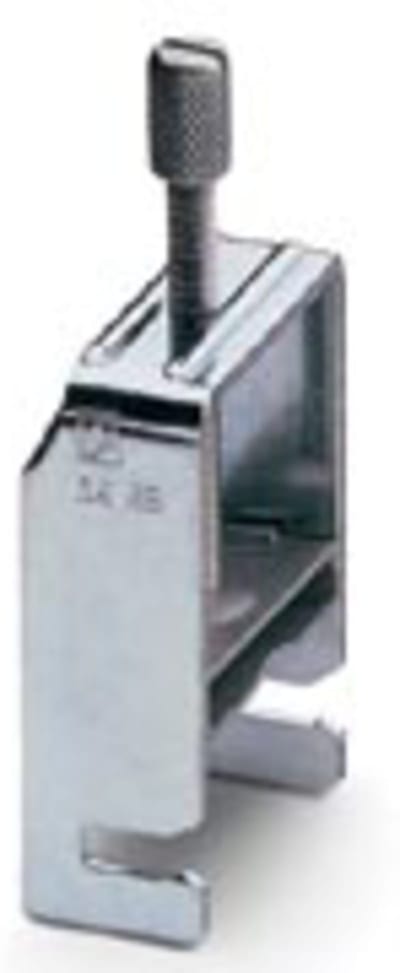

Shield Connection Clamp (SK 35)
Phoenix Contact

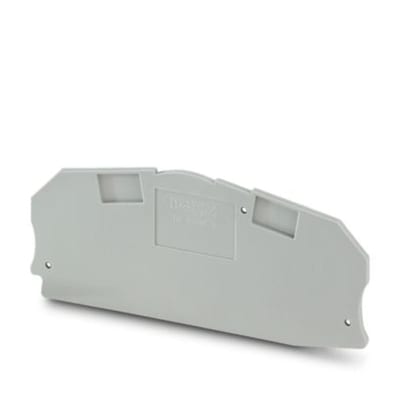

End Cover (D-UTME 6)
