Phoenix Contact

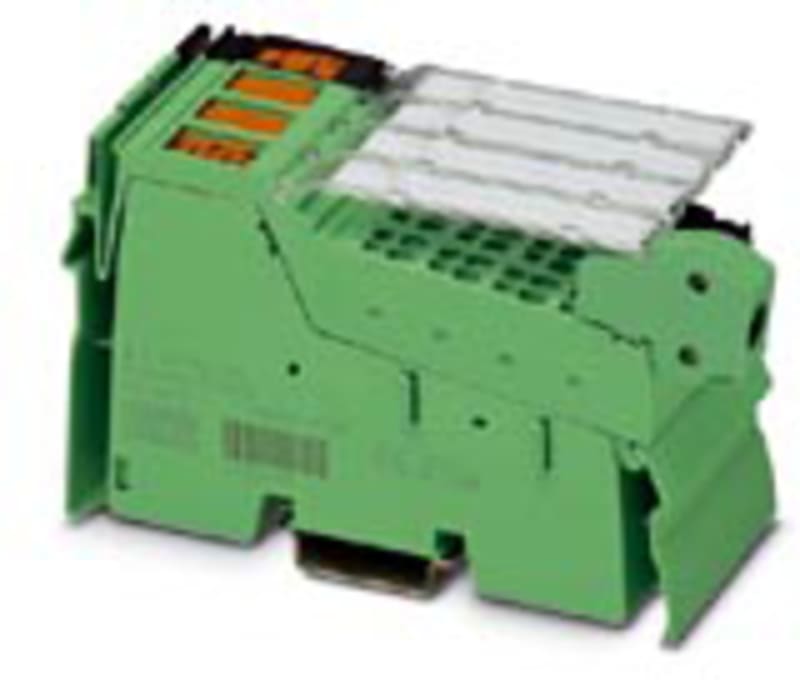

Field Multiplexer (IB IL 24 MUX MA-PAC)
Part numberIB IL 24 MUX MA-PACEAN / GTIN4017918902506HS code8538.90
Control & Automation
Fieldbus I/O
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact IB IL 24 MUX MA-PAC Inline feltmultiplekser, complete with accessories.
Technical Specifications
- Manufacturer part number (MPN)
- IB IL 24 MUX MA-PAC
- EAN / GTIN
- 4017918902506
- Sales unit
- pcs
- Product type
- Field Multiplexer
- Manufacturer order number
- 2861205
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 19.2–30 V
- Voltage type (supply voltage)
- DC
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- With potential separation
- Yes
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 48.6 mm
- Height
- 136.044 mm
- Depth
- 70.51 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4017918902506
- SAP 1000263132
- Code 81290910
Product Documentation
Document preview: Field Multiplexer (IB IL 24 MUX MA-PAC) — Specification sheet
