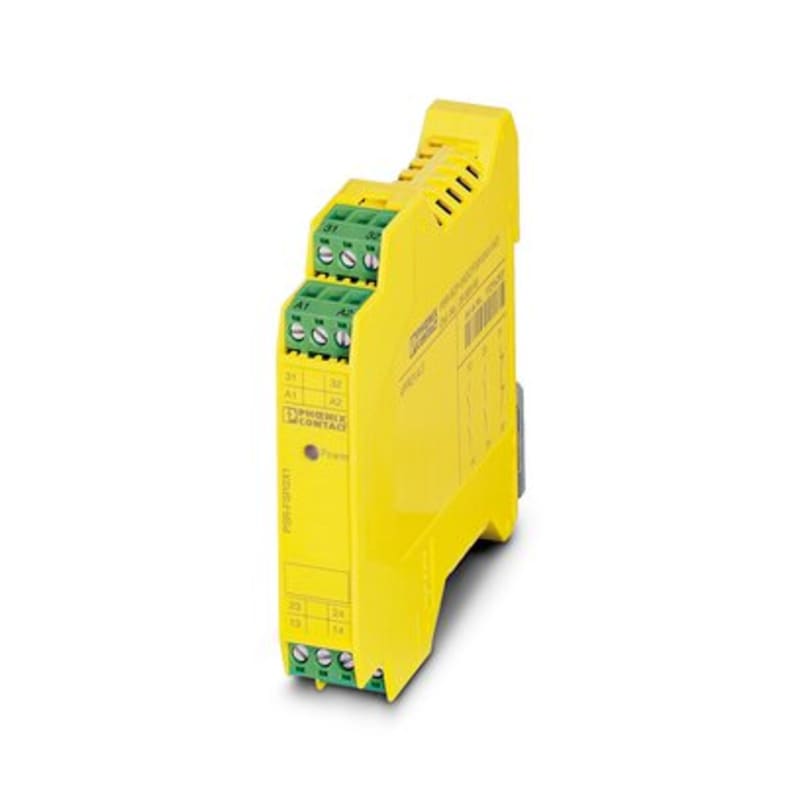

Coupling Relay 24 VDC 2NO+1NC 17.5 mm Push-In
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PSR-SPP- 24DC/FSP/2X1/1X2 Safe coupling relay for SIL 3 high- and low-demand applications, two outputs, one signal contact, 17.5 mm width, pluggable push-in terminals.
Technical Specifications
- Manufacturer part number (MPN)
- PSR-SPP- 24DC/FSP/2X1/1X2
- EAN / GTIN
- 4046356520928
- Sales unit
- pcs
- Product type
- Coupling Relay
- Manufacturer order number
- 2986957
- Model
- Basic device
- Suitable for monitoring of position switches
- No
- Suitable for monitoring of emergency-stop circuits
- No
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of magnetic switches
- No
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- With detachable clamps
- Yes
- With start input
- No
- With muting function
- No
- With feedback circuit
- No
- Release-delay
- 0.05 s
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- No
- Width
- 17.5 mm
- Height
- 112 mm
- Depth
- 114.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4046356520928
- SAP 1000698831
- Code 8638126
Product Documentation
More from Phoenix Contact
Phoenix Contact
Ferrule (AI 0,5 - 8 AND)
AI 0,5 - 8 OG
Phoenix Contact
Marking Strip ZB 5 LGS 181-190
ZB 5,LGS: 181-190
Phoenix Contact
Singlerelé REL-MR- 24DC/21AU
Phoenix Contact
Inline Terminal (IB IL 24 DI 16-Pac)
IB IL 24 DI 16-PAC
Phoenix Contact
End ferrule - AI-TWIN 2X 1,5 - 8 BK
AI-TWIN 2X 1,5 - 8 BK
Phoenix Contact

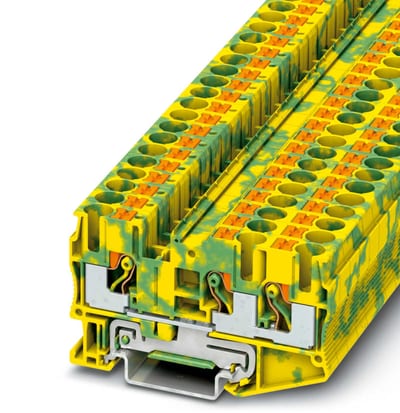

Phoenix Contact PT 6-TWIN-PE Ground Modular Terminal Block 0.5-10 mm² Green/Yellow
Phoenix Contact

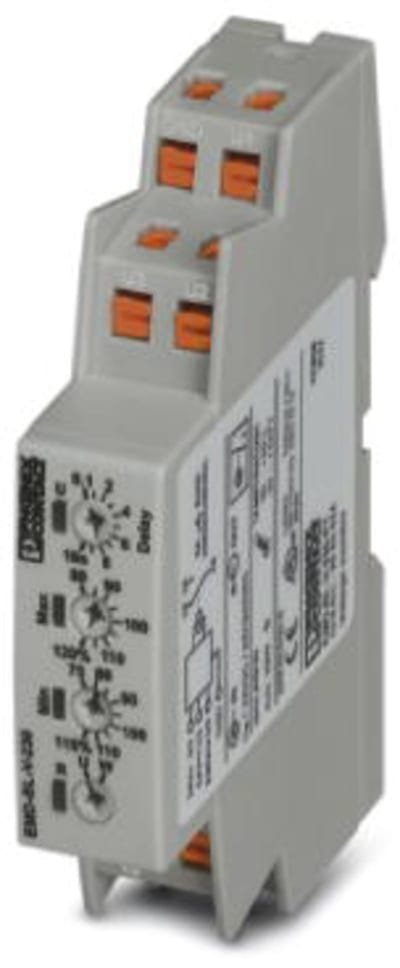

Monitoring Relay (EMD-BL-V-230-PT)
Phoenix Contact

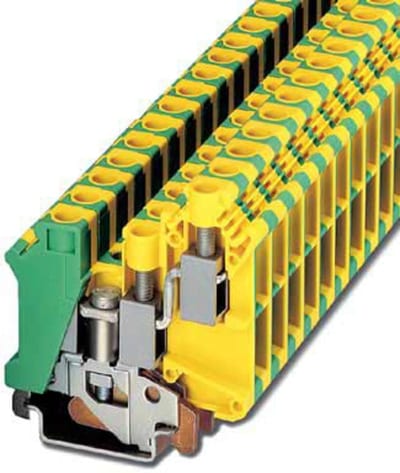

Ground Modular Terminal Block (UK 10-TWIN-PE)
