Phoenix Contact

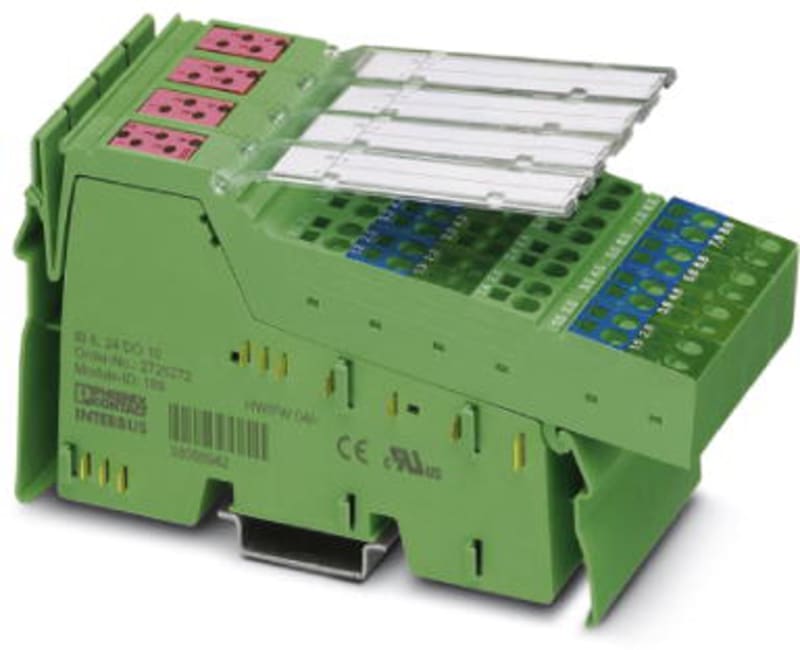

Inline Terminal (IB IL 24 DO 16-Pac)
Part numberIB IL 24 DO 16-PACEAN / GTIN4017918894238HS code8538.90
Control & Automation
I/O Modules
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
PHOENIX CONTACT UK IB IL 24 DO 16-PAC Type: IB IL 24 DO 16-PAC.
Technical Specifications
- Manufacturer part number (MPN)
- IB IL 24 DO 16-PAC
- EAN / GTIN
- 4017918894238
- Sales unit
- pcs
- Product type
- Inline Terminal
- Manufacturer order number
- 2861292
- Supporting protocol for EtherCAT
- No
- Supply voltage AC 50 Hz
- 24 V
- Supply voltage DC
- 19.2–30 V
- Voltage type (supply voltage)
- DC
- Number of digital outputs
- 16
- Digital inputs configurable
- No
- Digital outputs configurable
- No
- Permitted voltage at input
- 24 V
- Type of voltage (input voltage)
- DC
- Output current
- 0.5 A
- Permitted voltage at output
- 24 V
- Type of output voltage
- DC
- Short-circuit protection, outputs available
- Yes
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- Yes
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 48.6 mm
- Height
- 141.297 mm
- Depth
- 71.442 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4017918894238
- SAP 1000263103
- Code 8214756
Product Documentation
