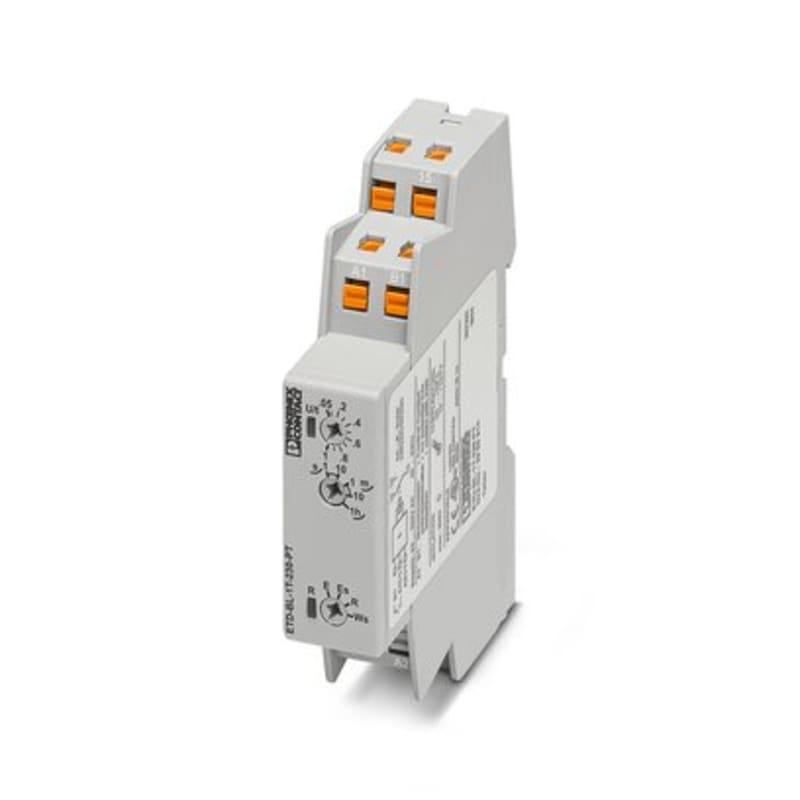

Phoenix Contact ETD-BL-1T-230-PT Multi-Function Timer Relay 230 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact ETD-BL-1T-230-PT compact multi-function timer relay with four timing functions and an adjustable range of 50 ms to 1 h. Control supply 230 V AC or 24 V DC, one NC and one change-over output, DIN-rail mount, 17.5 mm wide. Manufacturer order number 2905814.
Technical Specifications
- Manufacturer part number (MPN)
- ETD-BL-1T-230-PT
- EAN / GTIN
- 4055626003344
- HS code
- 8536.90
- Sales unit
- pcs
- Product type
- Timer Relay
- Manufacturer order number
- 2905814
- Suitable for front mounting
- No
- Type of electric connection
- Plug-in connection
- Function delay-on energization
- No
- Function delay on de-energization
- Yes
- Function floating contact on energization
- No
- Function floating contact on de-energization
- Yes
- Function star-delta
- No
- Function pulse shaping
- No
- Function flashing, starting with pause, fixed time
- Yes
- Function flashing, starting with pulse, fixed time
- Yes
- Clock function, starting with pause, variable
- Yes
- Clock function, starting with pulse, variable
- Yes
- With plug-in socket
- No
- Remote operation possible
- No
- Suitable as remote control
- No
- Pluggable on auxiliary contact block
- No
- Rated control supply voltage AC 50 Hz
- 230 V
- Rated control supply voltage AC 60 Hz
- 230 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- Time range
- 0.05–3600 s
- Number of outputs, undelayed, normally closed contact
- 1
- Number of outputs, undelayed, change-over contact
- 1
- Number of outputs, delayed, normally closed contact
- 1
- Number of outputs, delayed, change-over contact
- 1
- Outputs, reversible delayed/undelayed
- No
- With semiconductor output
- No
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Width
- 17.5 mm
- Height
- 88 mm
- Depth
- 65.5 mm
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055626003344
- SAP 1200566678
- Code 82908750
Product Documentation
