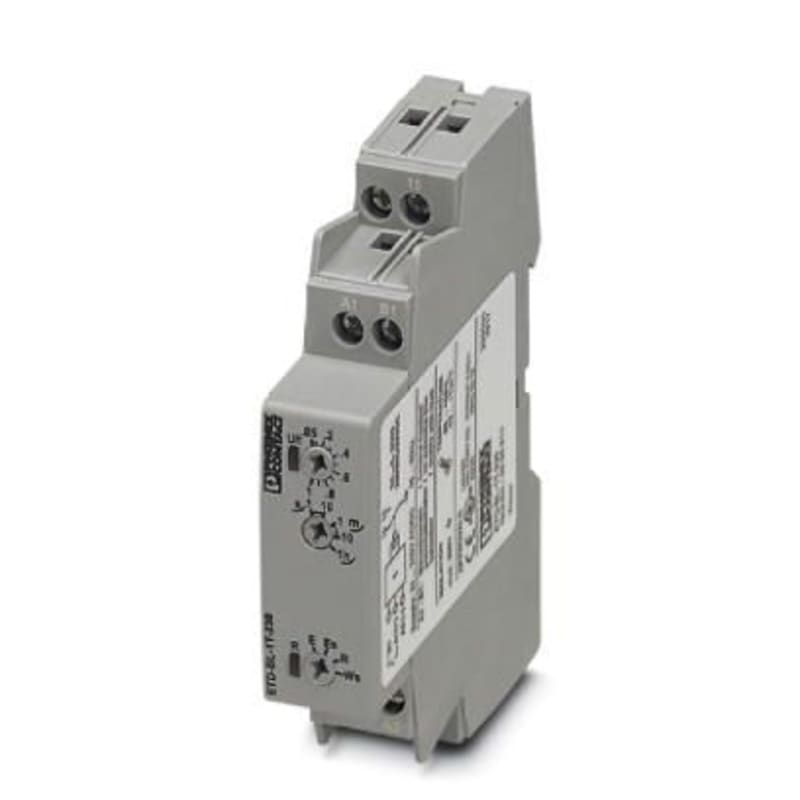

Multifunksjonelt TIME Relay 1T 230

Phoenix Contact 4109939 ETD-BL-1T-230.

Manufacturer part number (MPN)

4109939

HS code

8536.90

Sales unit

pcs

Type of electric connection

Screw connection

Function delay-on energization

No

Function delay on de-energization

Yes

Function floating contact on energization

No

Function floating contact on de-energization

Yes

Function star-delta

No

Function pulse shaping

No

Function flashing, starting with pause, fixed time

Yes

Function flashing, starting with pulse, fixed time

Yes

Clock function, starting with pause, variable

Yes

Clock function, starting with pulse, variable

Yes

Remote operation possible

No

Suitable as remote control

No

Pluggable on auxiliary contact block

No

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Rated control supply voltage DC

24 V

Voltage type for actuating

AC/DC

Number of outputs, undelayed, normally closed contact

1

Number of outputs, undelayed, change-over contact

1

Number of outputs, delayed, normally closed contact

1

Number of outputs, delayed, change-over contact

1

Outputs, reversible delayed/undelayed

No

With semiconductor output

No

Suitable for DIN rail (top hat rail) mounting

Yes

Width

17.5 mm

Height

88 mm

Depth

65.5 mm

Country of origin

Austria

HS Code

8536.90

• 4055626003351
