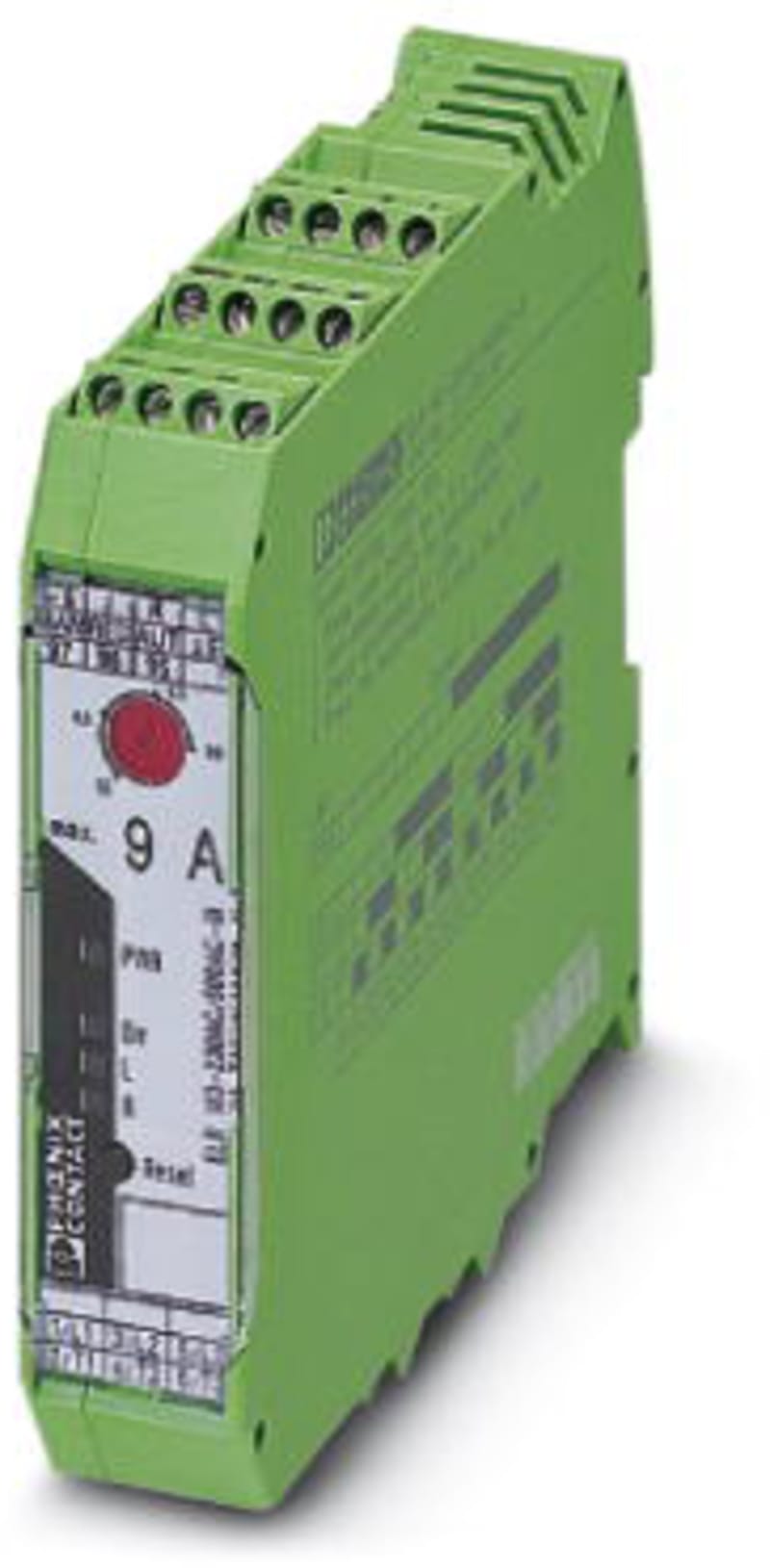

Phoenix Contact ELR W3-24DC/500AC-9I Hybrid Motor Starter 9 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact ELR W3-24DC/500AC-9I is a hybrid three-phase solid-state reversing motor starter combining four functions in one 22.5 mm wide DIN-rail module. Rated 9 A output with adjustable overload release 1.5-9 A, 24 V DC control input and 500 V AC switching. Includes one normally-open and one normally-closed auxiliary contact, screw main-circuit connection, IP20 protection and CLASS 10 trip class. Typical applications include compact motor control in machinery and process installations.
Technical Specifications
- Manufacturer part number (MPN)
- ELR W3- 24DC/500AC- 9I EAN / GTIN: 4046356170581 Sales unit: pcs Product type: Hybrid Motor Starter Manufacturer order number: 2297057 Width: 22.5 mm Height: 107 mm Depth: 114 mm With transformer: No Number of command positions: 1 Number of auxiliary contacts as normally open contact: 1 Number of auxiliary contacts as normally closed contact: 1 Suitable for emergency stop: Yes Rated operation current Ie: 9 A Overload release current setting: 1.5–9 A Supporting protocol for LON: No Supporting protocol for TCP/IP: No Supporting protocol for ASI: No Supporting protocol for PROFIBUS: No Supporting protocol for CAN: No Supporting protocol for INTERBUS: No Supporting protocol for Modbus: No Supporting protocol for Data-Highway: No Supporting protocol for DeviceNet: No Supporting protocol for SUCONET: No Supporting protocol for other bus systems: No External reset possible: Yes Suitable for rail mounting: Yes Rated control supply voltage DC: 19.2 V Degree of protection (IP): IP20 Supporting protocol for SERCOS: No Supporting protocol for INTERBUS-Safety: No Release class: CLASS 10 With short-circuit release: No With fuse: No Type of electrical connection of main circuit: Screw connection Supporting protocol for AS-Interface Safety at Work: No Supporting protocol for DeviceNet Safety: No Supporting protocol for EtherNet/IP: No Supporting protocol for Foundation Fieldbus: No Supporting protocol for PROFINET CBA: No Supporting protocol for PROFINET IO: No Supporting protocol for PROFIsafe: No Supporting protocol for SafetyBUS p: No Voltage type for actuating: DC Type of motor starter: Reversing starter Rated operation current at AC-3, 400 V: 9 A Temperature compensated overload protection: No Country of origin: Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4046356170581
- SAP 1000235835
- Code 81290803
Product Documentation
More from Phoenix Contact
Phoenix Contact

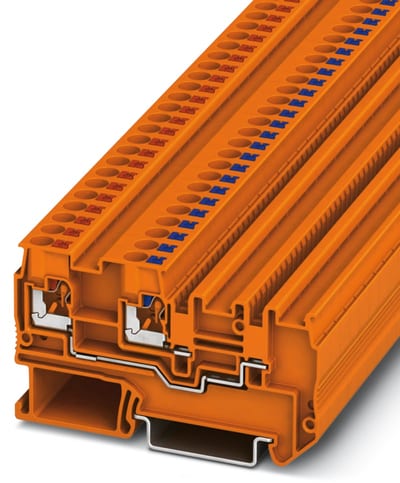

Sensor/Actuator Terminal Block (PTIO-IN 2,5/3 OG)
Phoenix Contact

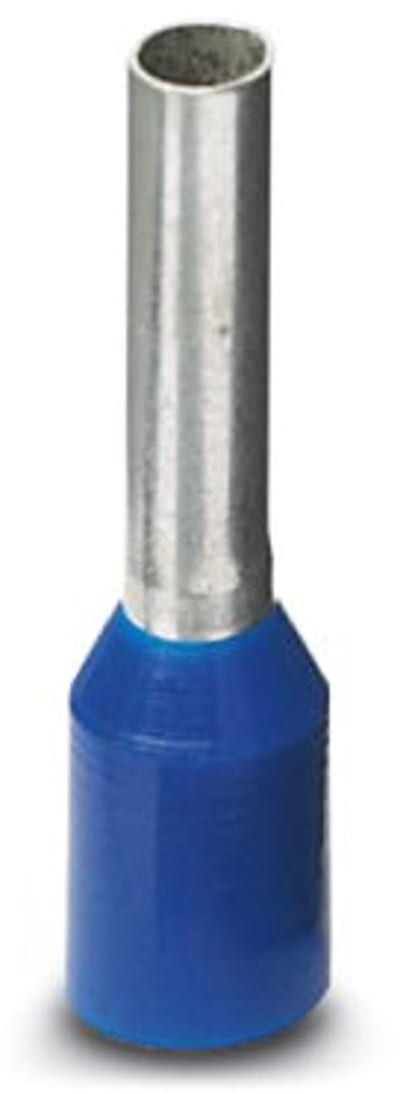

End ferrule - AI 0,34- 6 TQ
AI 0,34- 6 TQ
Phoenix Contact

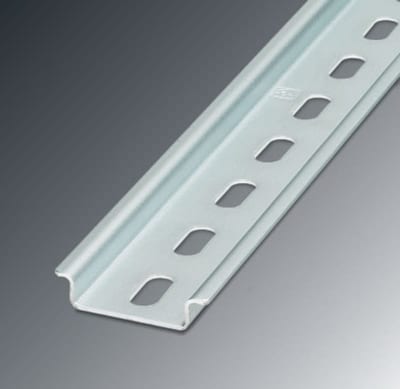

DIN Rail, Perforated (NS 35/ 7,5 BLK PERF 2000mm)
NS 35/ 7,5 BLK PERF 2000MM
Phoenix Contact

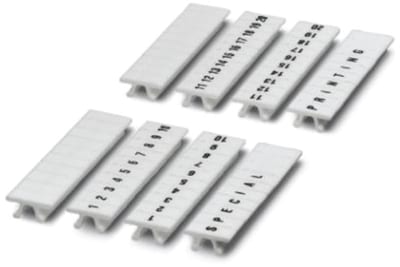

ZB 3,5 Lgs:21-30
0801404:0021
Phoenix Contact

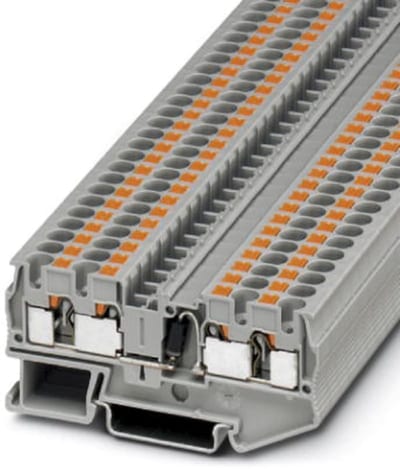

Component Terminal Block (PT 4-QUATTRO-DIO 1N 5408/R-L)
Phoenix Contact

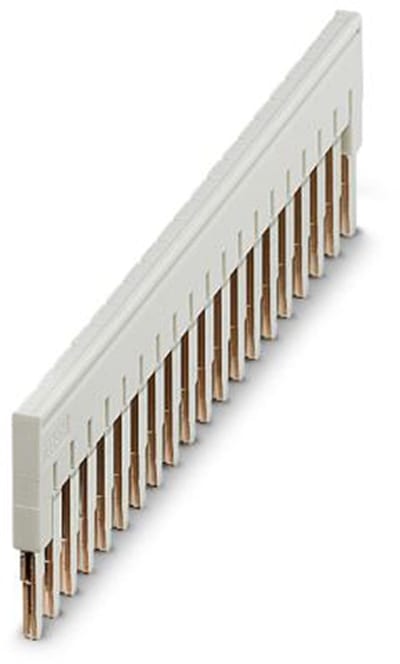

JUMPER LINK 2,5 mm² Terminal 20-Pole GREY
FBS 20-5 GY
Phoenix Contact

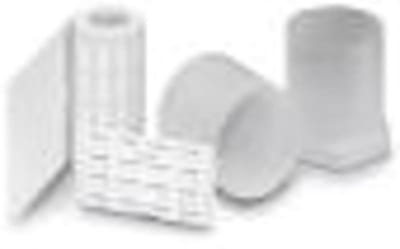

Marking Tags (816786)
Phoenix Contact

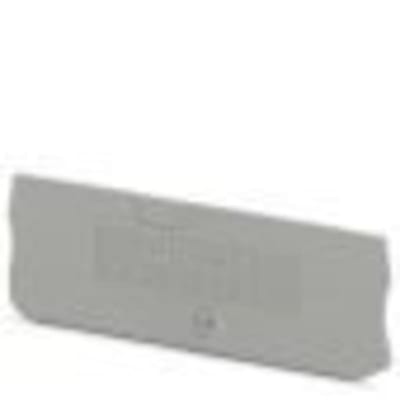

Cover FOR PT 1,5/S-TWIN-MT
D-PT 1.5/S-TWIN-MT-0.8
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
