Phoenix Contact

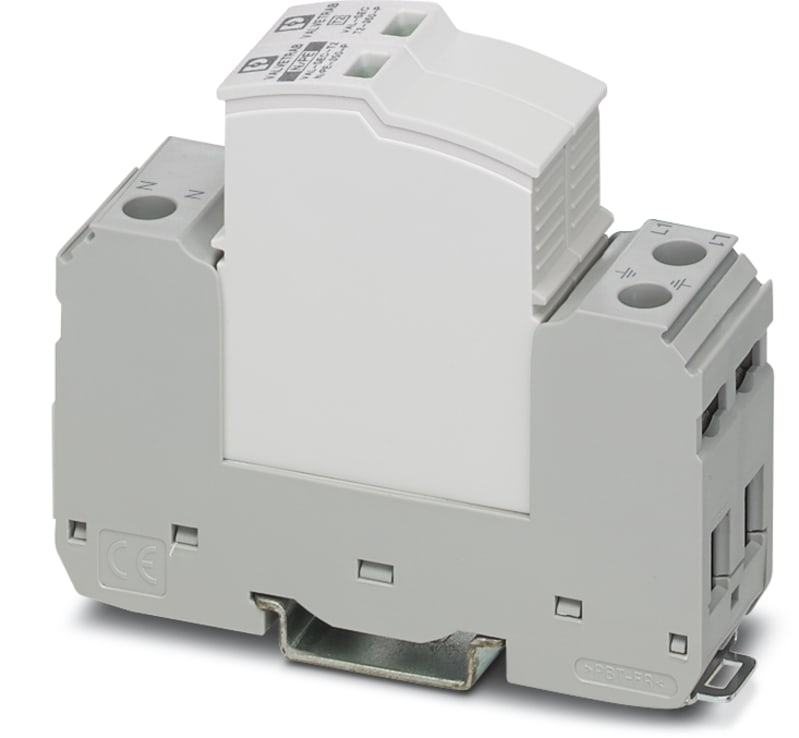

Type 2 Surge Arrester (VAL-SEC-T2-1S-350-FM)
Part numberVAL-SEC-T2-1S-350-FMEAN / GTIN4046356947732HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact VAL-SEC-T2-1S-350-FM Pluggable surge arrester.
Technical Specifications
- Manufacturer part number (MPN)
- VAL-SEC-T2-1S-350-FM
- EAN / GTIN
- 4046356947732
- Sales unit
- pcs
- Number of poles
- 2P
- Product type
- Type 2 Surge Arrester
- Manufacturer order number
- 2905333
- System configuration
- TN-S
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 40 kA
- Short-circuit-proof
- No
- Nominal voltage AC
- 240 V
- Max. continuous voltage AC
- 350 V
- Voltage protection level
- 1.9 kV
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 40 A
- Short-circuit breaking capacity (Isccr)
- 50 kA
- Integrated backup fuse
- Yes
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Max. conductor cross section solid (solid, stranded)
- 2.5 mm²
- Max. conductor cross section flexible (fine-strand)
- 16 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4046356947732
- SAP 1000709780
- Code 8431264
Product Documentation
Document preview: Type 2 Surge Arrester (VAL-SEC-T2-1S-350-FM) — Specification sheet
More from Phoenix Contact
Phoenix Contact
Marking Strip FOR 6,0 mm² Terminal
ZB 8/WH-100:UNBEDRUCKT
Phoenix Contact

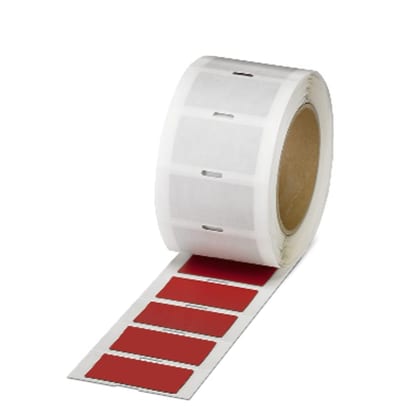

Plastic Sign 60X30 RED
1803972
Phoenix Contact

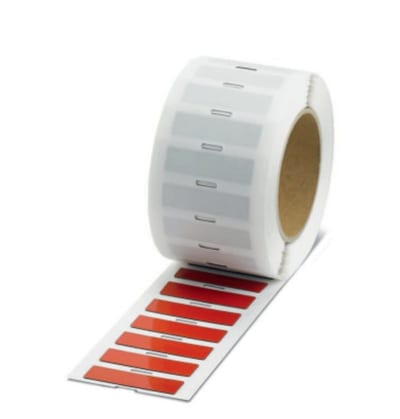

Label 60X15 RED (1803976)
Phoenix Contact

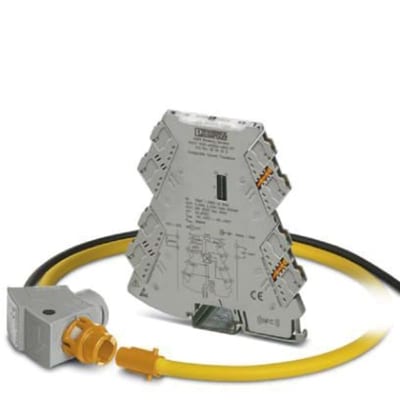

Current Transformer (PACT RCP-4000A-UIRO-D95)
Phoenix Contact

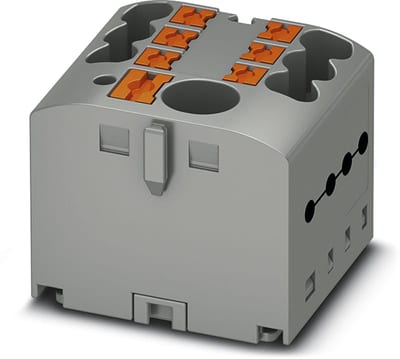

Distribution Block (PTFIX 6/6X2,5 RD)
Phoenix Contact

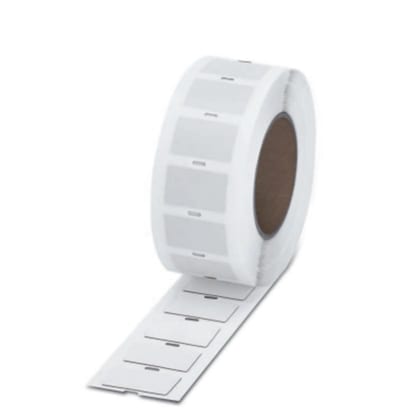

Plastic Sign 45X25 White
1803974
Phoenix Contact
Sensor/Actuator Cable (SAC-4P-10,0-PUR/M12FS SH)
Phoenix Contact

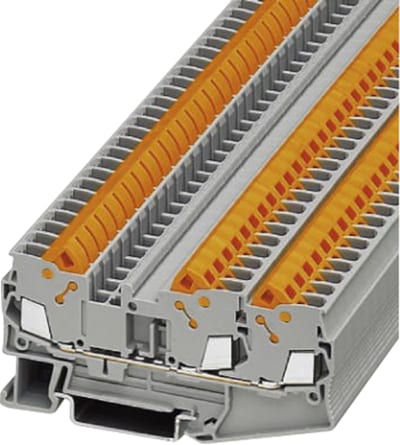

TERMINAL HURT.CONNECTION 3 0,5-2,5
