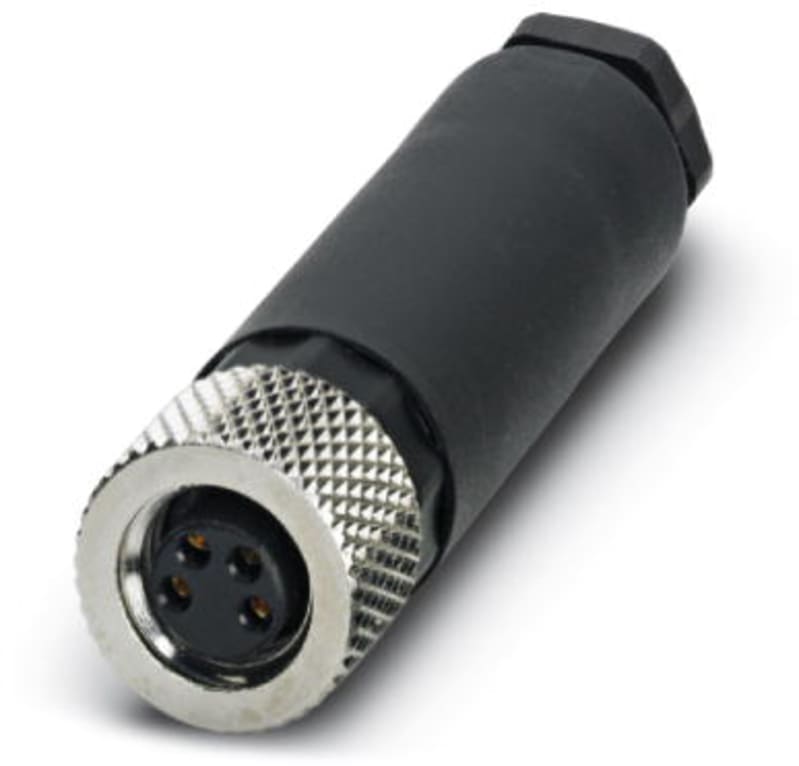

M8 Connector SACC-M 8FS-4CON-M-SW, 4-Pole, Straight Socket (1506891)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact SACC-M 8FS-4CON-M-SW (order no. 1506891) M8 sensor/actuator connector, 4-pole, straight socket, field-assembly version.
Technical Specifications
- Manufacturer part number (MPN)
- SACC-M 8FS-4CON-M-SW
- EAN / GTIN
- 4017918881207
- Sales unit
- pcs
- Product type
- Connector
- Manufacturer order number
- 1506891
- Diameter connector
- 12 mm
- Number of control contacts
- 4
- For cable outer diameter
- 4–8 mm
- Type of housing
- Straight
- Rated current In
- 4 A
- Ambient temperature
- -40–85 °C
- Rated voltage
- 30 V
- Overvoltage category
- III
- Pollution degree
- 3
- Connectable conductor cross section solid-core
- 0.14–0.5 mm²
- Connectable conductor cross section multi-wired
- 0.14–0.5 mm²
- Type of electric connection
- Screw connection
- Material of contact surface
- Gold
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67
- Min. number of insertion cycles
- 100
- Screened
- No
- With status indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4017918881207
- SAP 1000283520
- Code 8988013
Product Documentation
More from Phoenix Contact
Phoenix Contact

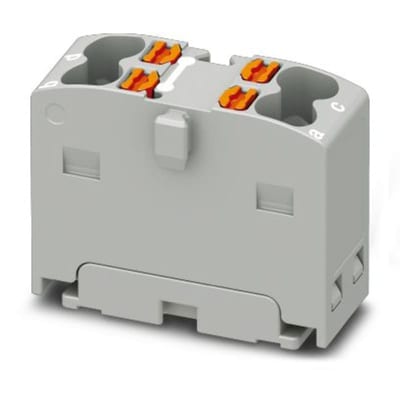

Distribution Block (PTFIX 4X1,5 GY)
Phoenix Contact
Sensor/Actuator Cable (SAC-3P- 3,0-PUR/A-1L-Z)
Phoenix Contact

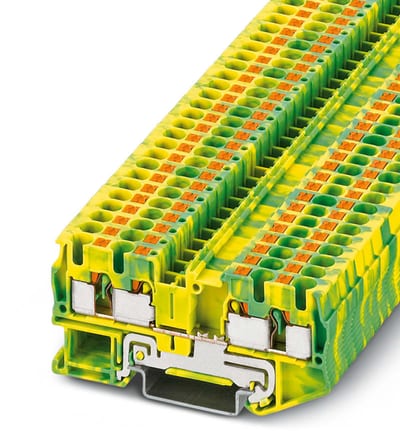

Ground Modular Terminal Block (PT 4-QUATTRO-PE)
