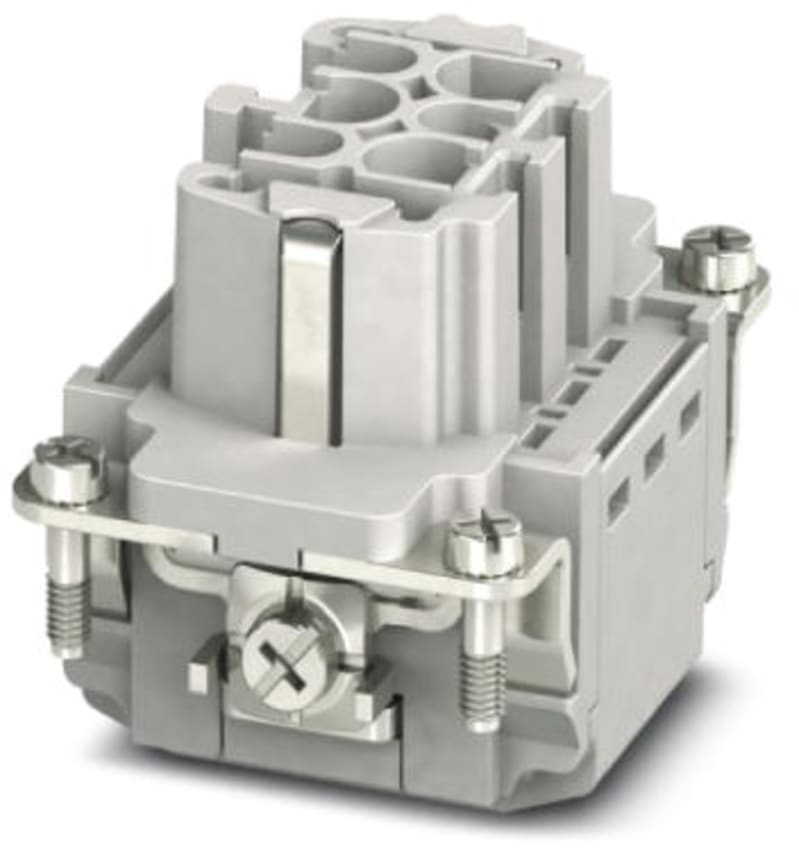

Contact Insert (HC-B06-I-PT-F)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact HC-B06-I-PT-F Heavycon insert B6, 6+PE-pole, Push-In connection, female.
Technical Specifications
- Manufacturer part number (MPN)
- HC-B06-I-PT-F
- EAN / GTIN
- 4046356777520
- Sales unit
- pcs
- Product type
- Contact Insert
- Manufacturer order number
- 1407727
- Width
- 34 mm
- Height
- 37 mm
- Depth
- 50.5 mm
- Shape
- Rectangular
- Rated voltage
- 500 V
- With wire protection
- No
- With housing
- No
- Suitable for distribution board
- No
- Number of poles
- 6
- Contact type
- Bus
- Ambient temperature
- 125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 6 kV
- Type of electric connection
- Spring clamp connection
- Overvoltage category
- III
- Pollution degree
- 3
- Diameter plug-in contact
- 2.5 mm
- Contact insert without contacts
- No
- Connectable conductor cross section solid-core
- 0.14–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- With protective conductor
- Yes
- Material contact
- Other copper alloys
- Material connector insert
- Thermoplastic
- Rated current In
- 16 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 500
- Number of power contacts
- 6
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4046356777520
- SAP 1000489756
- Code 8936963
