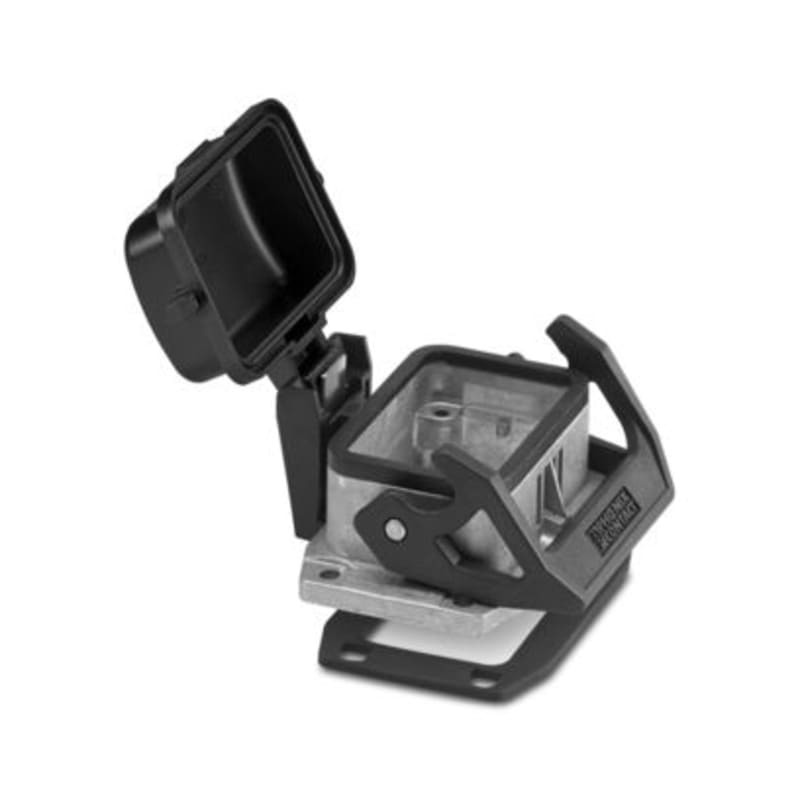

Phoenix Contact HC-STA-B24-BWSC-ELC-AL Heavycon Extension Housing B24, Aluminium
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact HC-STA-B24-BWSC-ELC-AL is a Heavycon B24 extension housing in uncoated aluminium with hinged top-cover, single locking lever, EMC-compliant construction, and integrated seal. The enclosure measures 53 x 30.5 x 140.5 mm, is corrosion resistant to seawater, and rated IP66 when mounted. Typical applications include heavy-duty industrial connector installations on machinery, drives, and outdoor equipment.
Technical Specifications
- Manufacturer part number (MPN)
- HC-STA-B24-BWSC-ELC-AL
- EAN / GTIN
- 4046356927505
- Sales unit
- pcs
- Product type
- Housing
- Manufacturer order number
- 1411330
- Width
- 53 mm
- UV resistant
- No
- Height
- 30.5 mm
- Depth
- 140.5 mm
- With hinged lid
- Yes
- Type of locking
- Single locking lever
- With cable screw gland
- No
- EMC-version
- Yes
- Corrosion resistant
- Yes
- Length
- 140.5 mm
- Housing material
- Aluminium
- Coating housing
- Uncoated
- Impact strength
- IK08
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Housing extension
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP66
- Position of the shackle
- Top cover
- Mounting method of the cable gland
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4046356927505
- SAP 1200046409
- Code 81897936
Product Documentation
More from Phoenix Contact
Phoenix Contact
Earthing Terminal block MT 1,5-Pe
MT 1,5-PE
Phoenix Contact
Etasjeklemme (PTTBS 1,5/S)
Phoenix Contact
Insertion Bridge (EB 80- DIK RD)
Phoenix Contact
Temperature Measuring Transducer
MACX MCR-T-UI-UP
Phoenix Contact

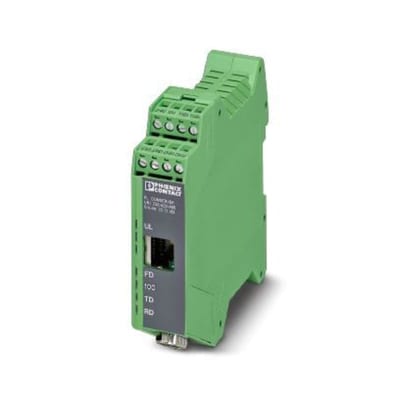

Interface Converter (FL COMSERVER UNI 232/422/485)
Phoenix Contact

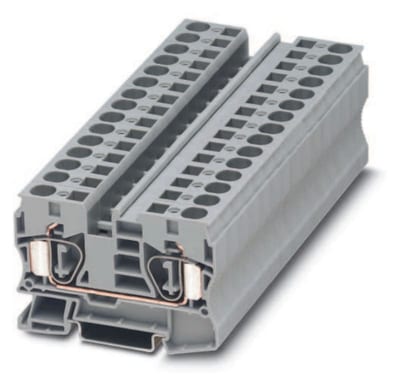

Phoenix Contact ST 10 Spring-Clamp Terminal Block 0.2–10 mm² Grey
