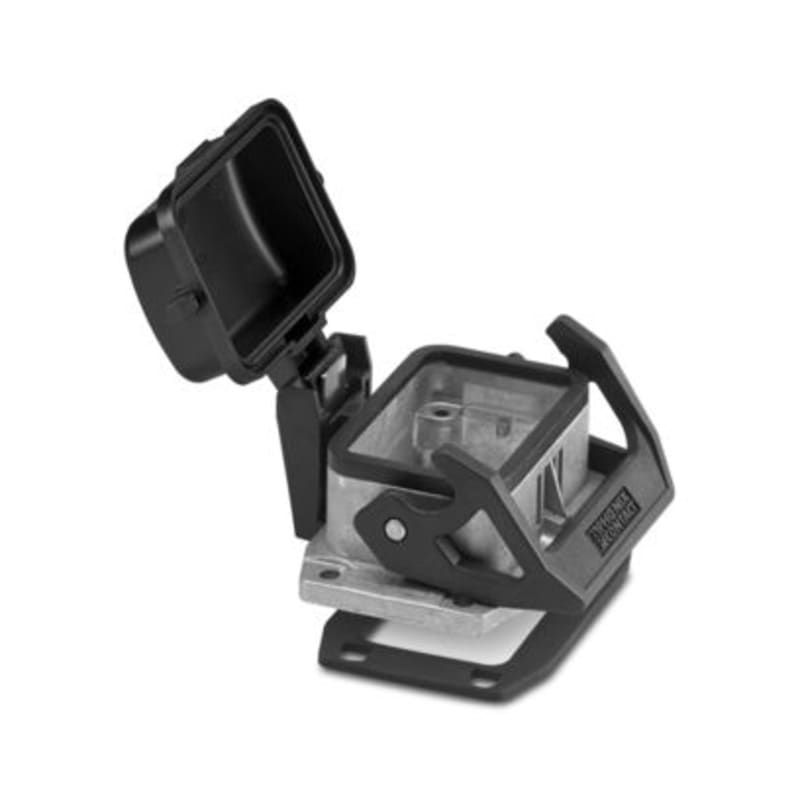

Phoenix Contact HC-STA-B16-BWSC-ELC-AL Heavycon B16 Surface Housing, Aluminium
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact HC-STA-B16-BWSC-ELC-AL is a Heavycon B16 surface-mount housing extension in uncoated aluminium, with longitudinal single-locking lever, cover and integrated sealing, tested to withstand seawater. Housing dimensions are 114 mm deep by 53 mm wide by 30.5 mm high, with IK08 impact strength and IP66 protection when mounted. Manufacturer order number 1411325. Country of origin is China.
Technical Specifications
- Manufacturer part number (MPN)
- HC-STA-B16-BWSC-ELC-AL
- EAN / GTIN
- 4046356927260
- Sales unit
- pcs
- Product type
- Housing
- Manufacturer order number
- 1411325
- Width
- 53 mm
- UV resistant
- No
- Height
- 30.5 mm
- Depth
- 114 mm
- With hinged lid
- Yes
- Type of locking
- Single locking lever
- With cable screw gland
- No
- EMC-version
- Yes
- Corrosion resistant
- No
- Length
- 114 mm
- Housing material
- Aluminium
- Coating housing
- Uncoated
- Impact strength
- IK08
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Housing extension
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP66
- Position of the shackle
- Top cover
- Mounting method of the cable gland
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4046356927260
- SAP 1200046427
- Code 81897978
Product Documentation
