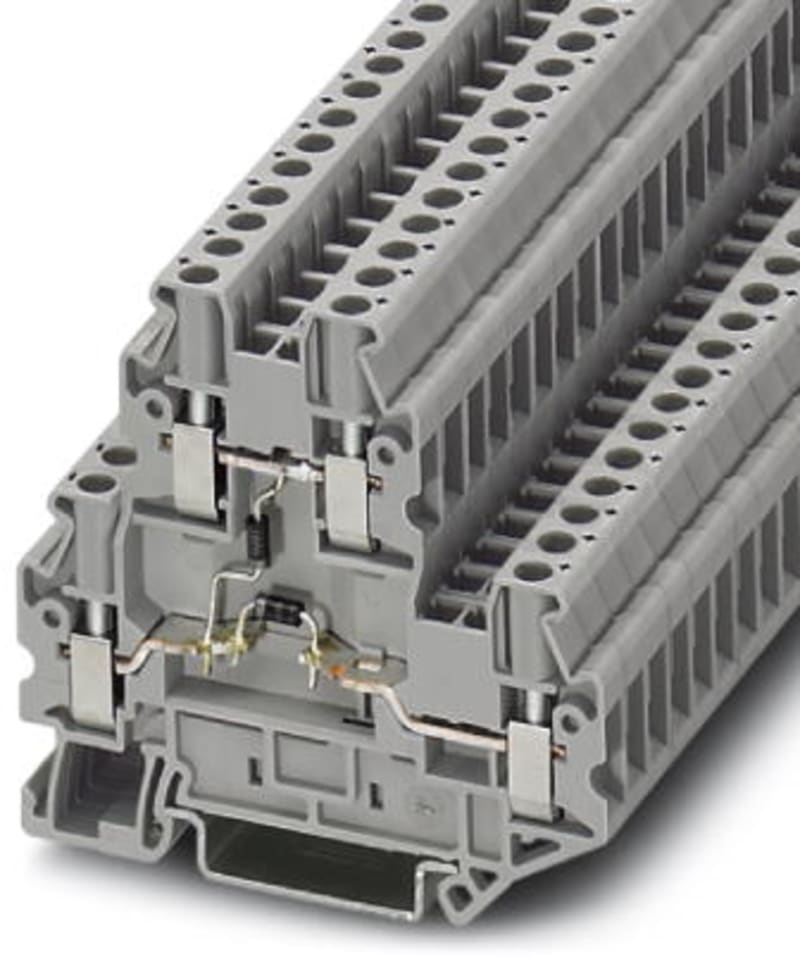

Component Terminal Block (UTTB 2,5-2DIO/O-UL/UR-UL)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UTTB 2,5-2DIO/O-UL/UR-UL Terminal block Screw 2-tier 0,14-2,5.
Technical Specifications
- Manufacturer part number (MPN)
- UTTB 2,5-2DIO/O-UL/UR-UL
- EAN / GTIN
- 4017918997205
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Component Terminal Block
- Manufacturer order number
- 3046676
- Explosion-tested version 'Ex e'
- No
- Connectable conductor cross section solid-core
- 0.14–4 mm²
- Connectable conductor cross section multi-wired
- 0.14–1.5 mm²
- Rated current In
- 0.5 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 69.9 mm
- Depth
- 64.4 mm
- Length
- 69.9 mm
- Closing plate required
- Yes
- Colour
- Grey
- Type of component
- Diode
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918997205
- SAP 1000037888
- Code 8779497
Product Documentation
More from Phoenix Contact
Phoenix Contact

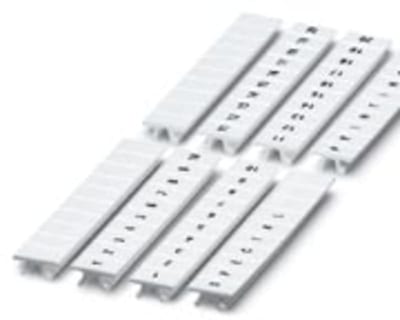

UK ZB6,LGS:361-370 KLEMCOD.1051016
ZB 6,LGS: 361-370
Phoenix Contact

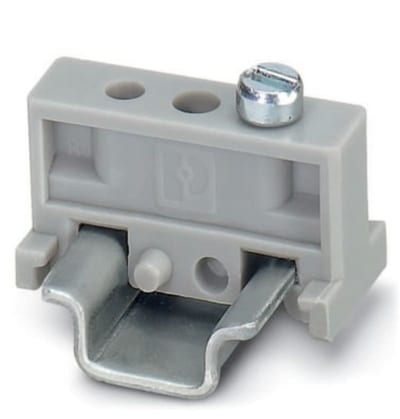

End Clamp (E/MBK)
Phoenix Contact

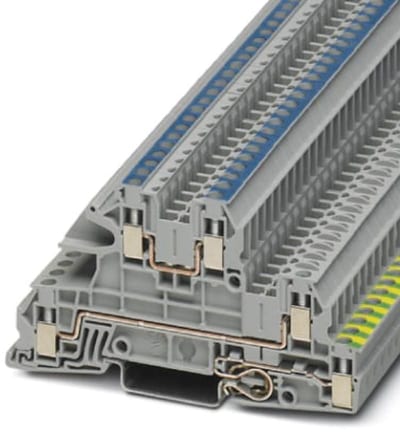

Installation Ground Terminal Block (UTI 2,5-PE/L/N)
Phoenix Contact

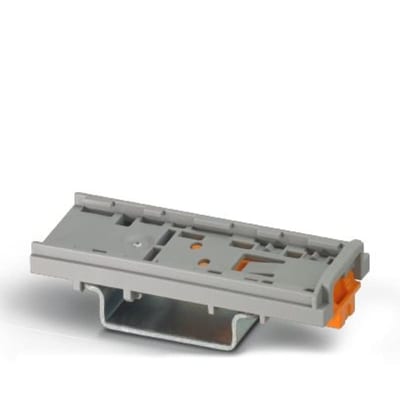

DIN Rail Adapter (PTFIX 1,5-NS35)
