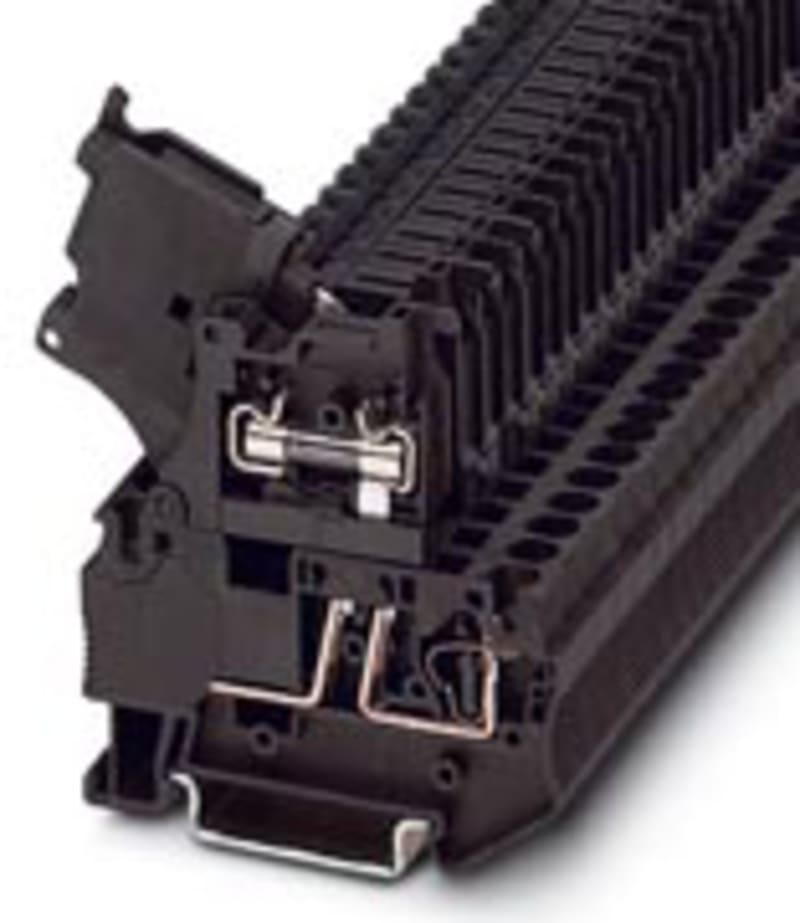

Phoenix Contact ST 4-HESI Fuse Terminal Block 5 x 20 mm (ST 4-HESI (5X20))
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact ST 4-HESI spring-cage fuse terminal block for 5 x 20 mm cartridge fuses. Conductor cross-section 0.08–4 mm² stranded, rated 6.3 A at 500 V, mounted on 35 mm DIN rail. Manufacturer order number 3036369.
Technical Specifications
- Manufacturer part number (MPN)
- ST 4-HESI (5X20)
- EAN / GTIN
- 4017918890476
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Fuse Modular Terminal Block
- Manufacturer order number
- 3036369
- Type of indication element for defect indication
- None
- Connectable conductor cross section solid-core
- 0.08–6 mm²
- Connectable conductor cross section multi-wired
- 0.08–4 mm²
- Rated current In
- 6.3 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Clip connection
- Number of levels
- 1
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- 105 °C
- Width
- 6.15 mm
- Width/grid dimension
- 6.2 mm
- Height
- 61.5 mm
- Depth
- 63.38 mm
- Closing plate required
- No
- Length
- 61.5 mm
- Colour
- Black
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918890476
- SAP 1000235723
- Code 81026142
Product Documentation
More from Phoenix Contact
Phoenix Contact
TERMINAL Plug-in 0,14-2,5 2-TIER
PTTBS25DIOUO
Phoenix Contact

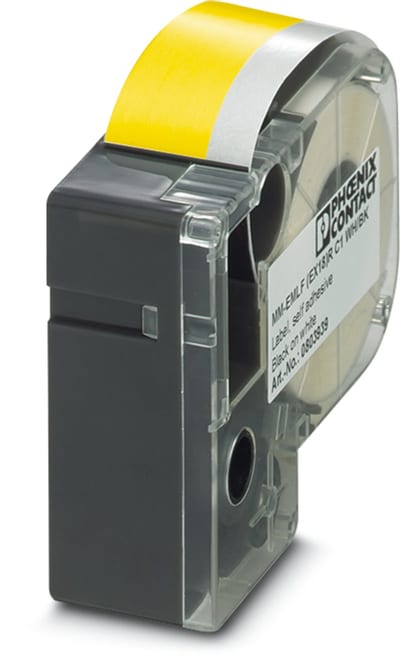

Thermofox Markers (EX18) YE/BK
0803943
Phoenix Contact

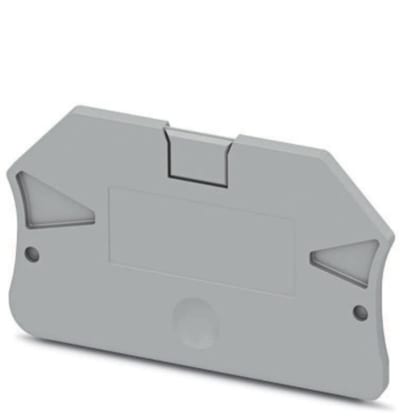

End Cover (D-PTTBV 2,5/4)
Phoenix Contact
Thermofox Markers (EX12) YE/BK
0803942
Phoenix Contact

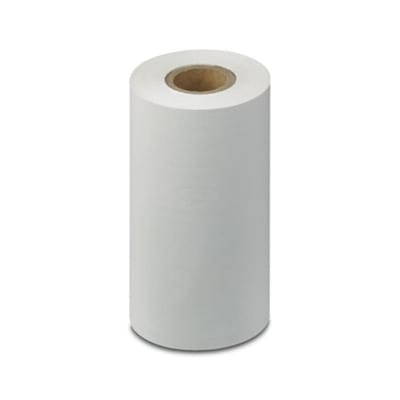

Ink Ribbon (TM-RIBBON 110 WH 100)
Phoenix Contact
M12 Cable - 4PIN,MALE,10M,PUR
SAC-4P-M12MS/10,0-PUR
Phoenix Contact

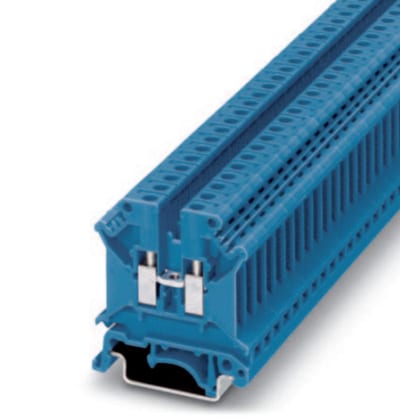

Feed-Through Terminal Block (UK 5 N BU)
