Phoenix Contact

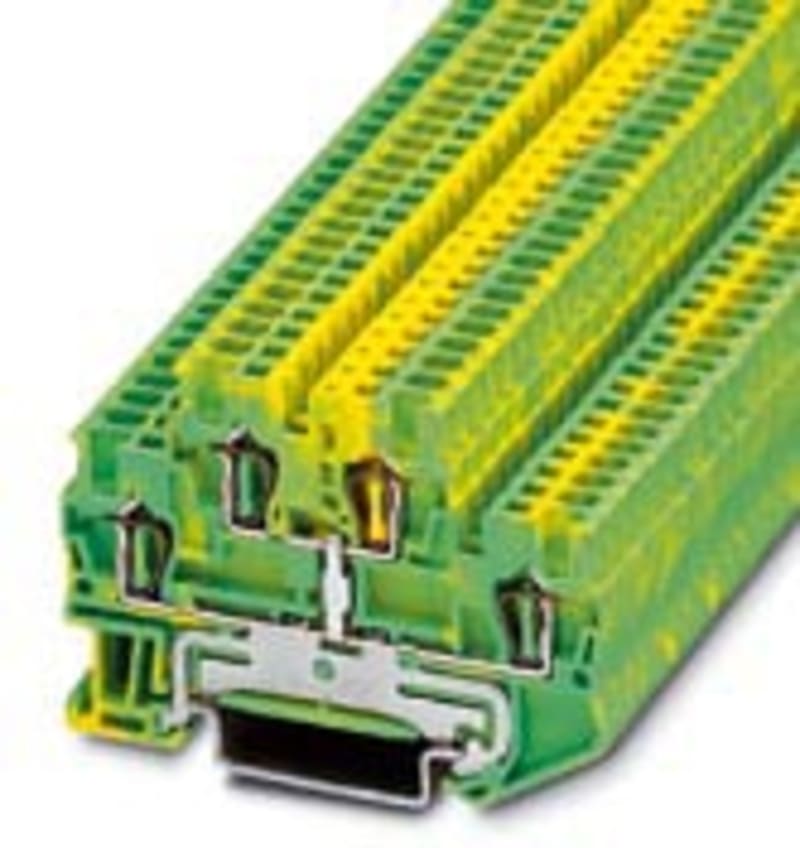

Protective-Conductor Double-Level Terminal Block (STTB 1,5-Pe)
Part numberSTTB 1,5-PEEAN / GTIN4017918817275HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact STTB 1,5-PE.
Technical Specifications
- Manufacturer part number (MPN)
- STTB 1,5-PE
- EAN / GTIN
- 4017918817275
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Protective-Conductor Double-Level Terminal Block
- Manufacturer order number
- 3036013
- PEN function possible
- No
- Connectable conductor cross section solid-core
- 0.08–1.5 mm²
- Connectable conductor cross section multi-wired
- 0.08–1.5 mm²
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Clip connection
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 4.2 mm
- Width/grid dimension
- 4.2 mm
- Height
- 67.5 mm
- Depth
- 47.5 mm
- Length
- 67.5 mm
- Closing plate required
- Yes
- Colour
- Green/yellow
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918817275
- SAP 1000489202
- Code 8602481
Product Documentation
Document preview: Protective-Conductor Double-Level Terminal Block (STTB 1,5-Pe) — Specification sheet
More from Phoenix Contact
Phoenix Contact

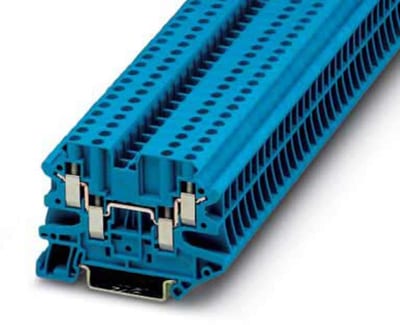

Feed-Through Terminal Block (UT 4-Quattro BU)
UT 4-QUATTRO BU
Phoenix Contact

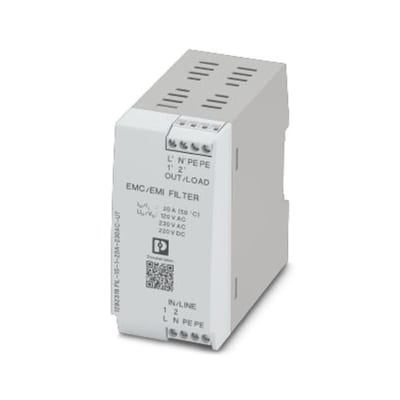

EMC Filter (FIL-1S-1-20A-230AC-UT)
Phoenix Contact

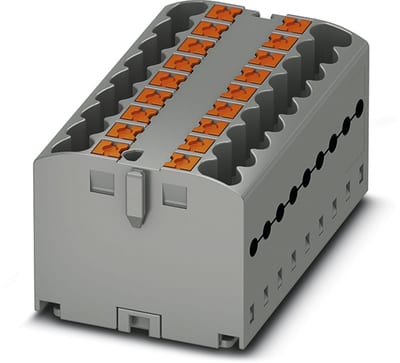

Distribution Block (PTFIX 18X2,5 BU)
Phoenix Contact

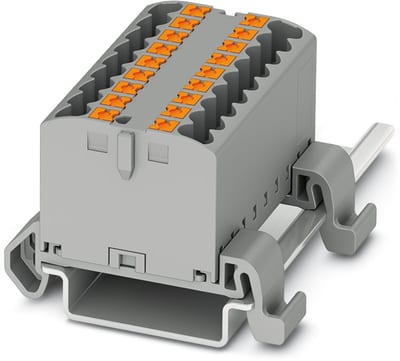

TERMINAL Plug-in 0,14-2,5 18 Connections (3273178)
Phoenix Contact

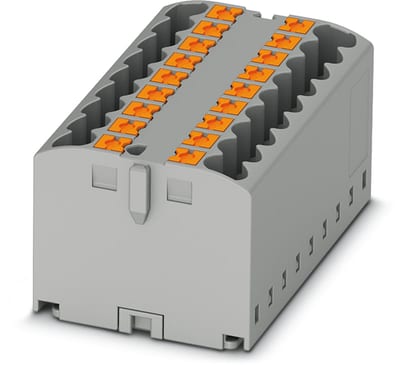

Distribution Block (PTFIX 6X2,5 YE)
Phoenix Contact

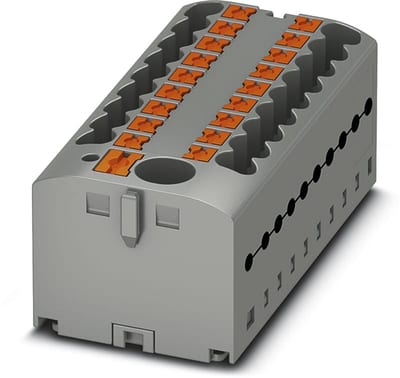

Distribution Block (PTFIX 6/18X2,5 RD)
Phoenix Contact
Distribution Block (PTFIX 6/18X2,5-Fe)
PTFIX 6/18X2,5-FE
Phoenix Contact

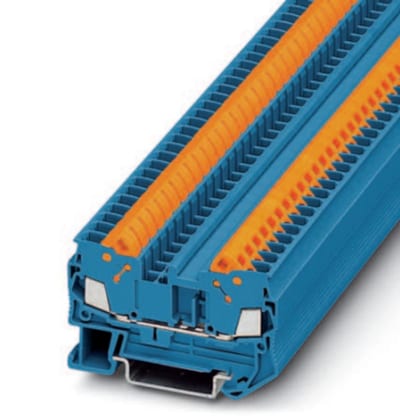

Feed-Through Terminal Block (QTC 2,5 BU)
