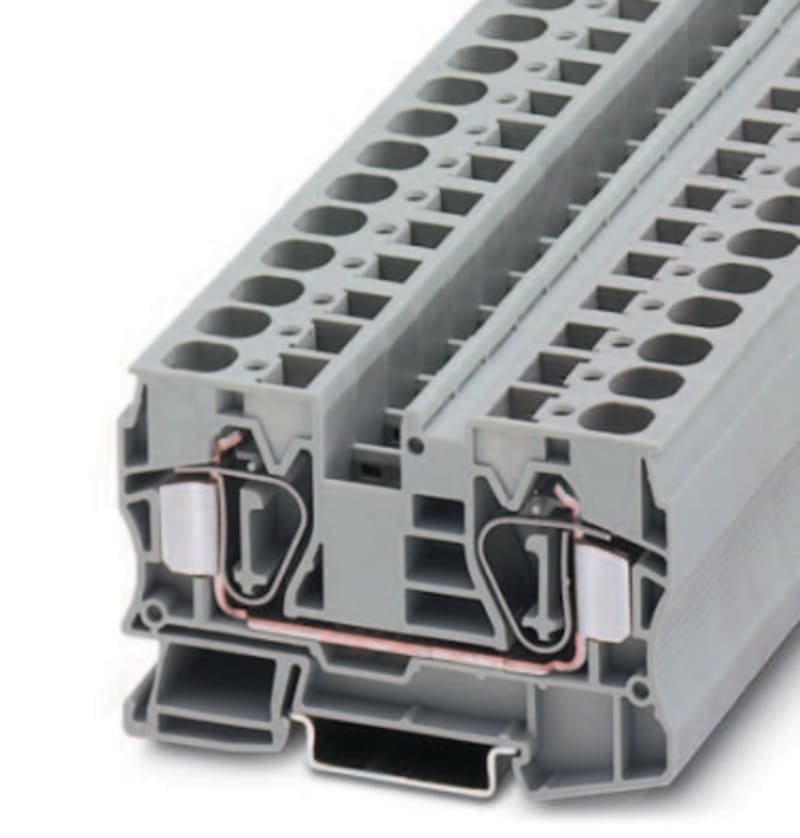

Phoenix Contact ST 16 Spring-Clamp Terminal Block 0.2–16 mm² Grey

Phoenix Contact ST 16 is a single-level spring-clamp terminal block for aluminium or copper conductors from 0.2 to 16 mm² multi-wired, or up to 25 mm² solid. Rated 76 A at 1000 V, the block mounts on 35 mm DIN rail and provides two clamping positions per level with internal stage connection. The 12.2 mm-wide grey housing operates from -60 to 110 °C and is Ex e explosion-tested. A closing plate is required and the unit is supplied in packs of 50.

Manufacturer part number (MPN)

ST 16

EAN / GTIN

4017918819309

Sales unit

pcs

Package quantity

50 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.2–25 mm²

Connectable conductor cross section multi-wired

0.2–16 mm²

Rated current In

76 A

Rated voltage

1000 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

12.2 mm

Width/grid dimension

12.2 mm

Height

80 mm

Depth

51.5 mm

Length

80 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Colour

Grey

Internally connected stages

Yes

Country of origin

Poland

HS Code

8536.90
