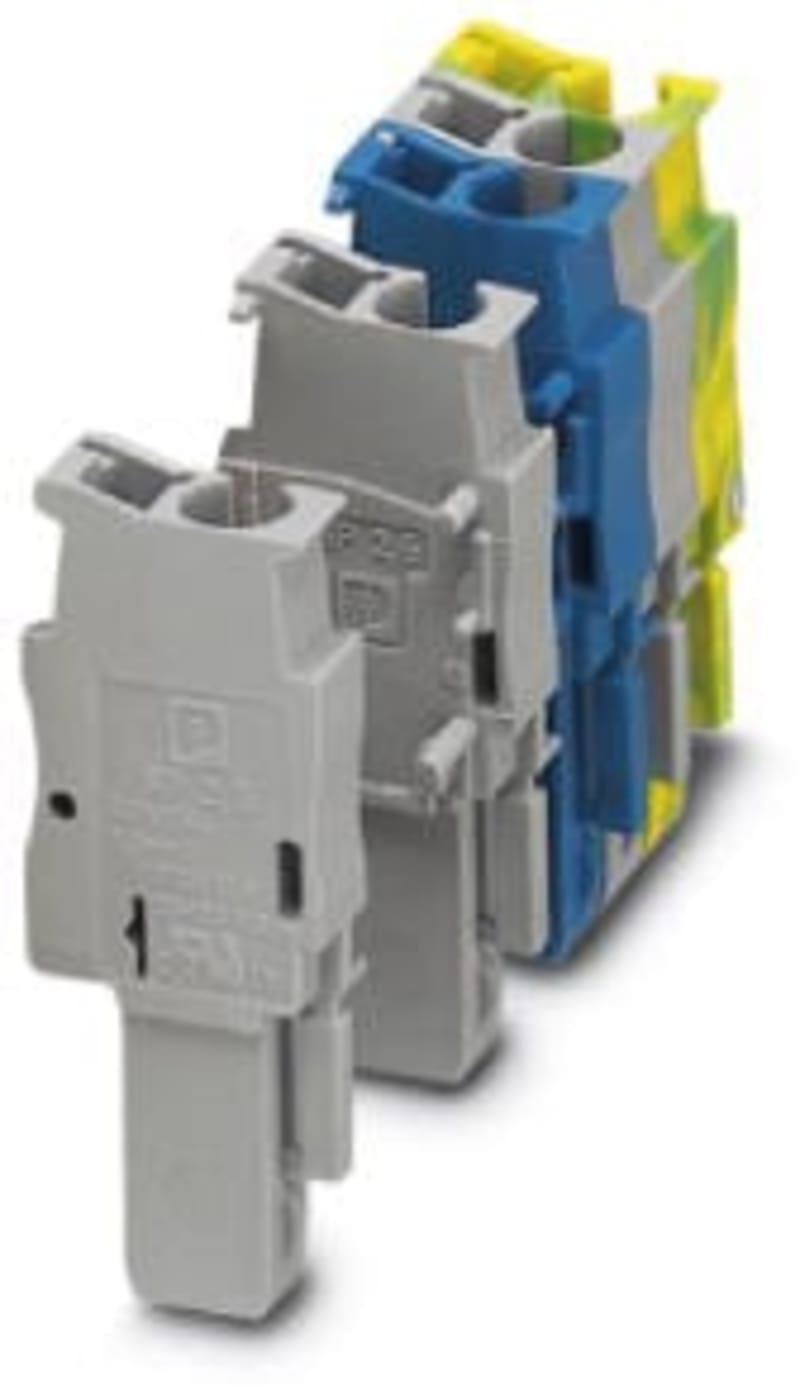

Phoenix Contact SP 2,5/ 1-R Single-Pole Spring-Cage Pin Insert
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact SP 2,5/ 1-R is a single-pole pin insert with spring-cage connection for use with the PT 2,5 series terminal system. Rated 24 A / 500 V, it accepts solid conductors of 0.08-4 mm2 and stranded conductors up to 2.5 mm2 on a 5.2 mm grid pitch. The insert is typically mated with a matching header to provide a pluggable connection point in control cabinets. Manufacturer order number 3043077.
Technical Specifications
- Manufacturer part number (MPN)
- SP 2,5/ 1-R
- EAN / GTIN
- 4017918894931
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Plug
- Manufacturer order number
- 3043077
- Model
- Pin insert
- Connectable conductor cross section
- 0.08–4 mm²
- Connectable conductor cross section solid-core
- 0.08–4 mm²
- Connectable conductor cross section multi-wired
- 0.08–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 500 V
- Total number of poles (without ground contact)
- 1
- Type of electric connection
- Spring clamp connection
- Width/grid dimension
- 5.2 mm
- Width
- 5.15 mm
- Connectable
- No
- Number of poles
- 1
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4017918894931
- SAP 1000235282
- Code 8159008
Product Documentation
