Phoenix Contact

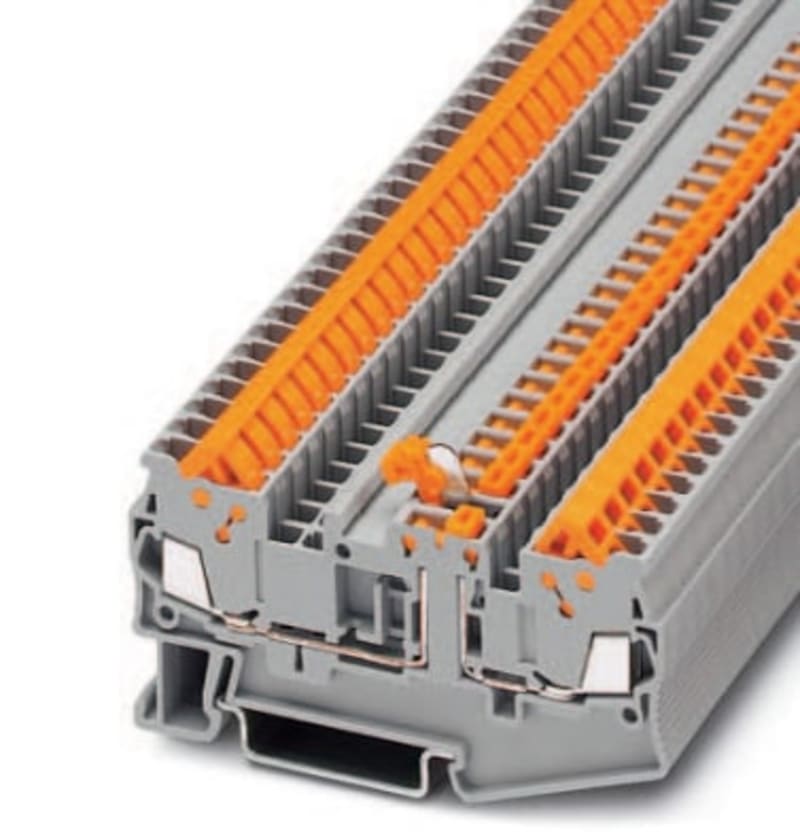

Knife-Disconnect Terminal Block (QTC 1,5-Mt)
Part numberQTC 1,5-MTEAN / GTIN4017918933098HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QTC 1,5-MT Rekkl Hurtigtil Knsk 0,25-1,5.
Technical Specifications
- Manufacturer part number (MPN)
- QTC 1,5-MT
- EAN / GTIN
- 4017918933098
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Knife-Disconnect Terminal Block
- Manufacturer order number
- 3205103
- Connectable conductor cross section solid-core
- 0.25–1.5 mm²
- Connectable conductor cross section multi-wired
- 0.25–1.5 mm²
- Rated current In
- 17.5 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Insulation displacement connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 76.4 mm
- Depth
- 39.3 mm
- Closing plate required
- Yes
- Colour
- Grey
- With integrated test socket
- No
- Length
- 76.4 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918933098
- SAP 1000076156
- Code 8754627
Product Documentation
Document preview: Knife-Disconnect Terminal Block (QTC 1,5-Mt) — Specification sheet
More from Phoenix Contact
Phoenix Contact

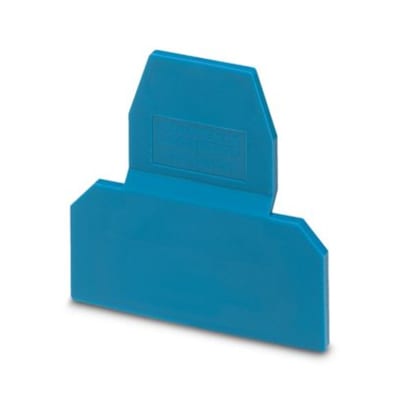

End Cover (D-UKK 3/5 BU)
Phoenix Contact

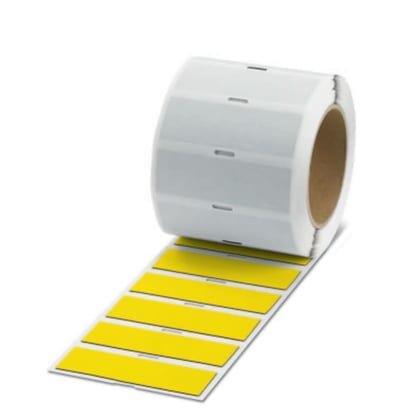

Label 100X30 Yellow (1803964)
Phoenix Contact

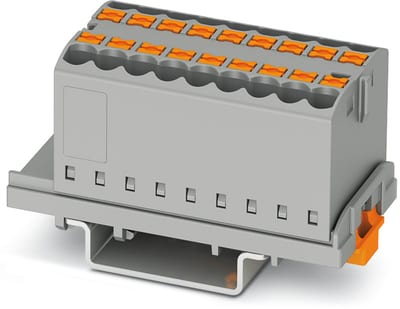

TERMINAL Plug-in 0,14-2,5 18 Connections (3273050)
Phoenix Contact

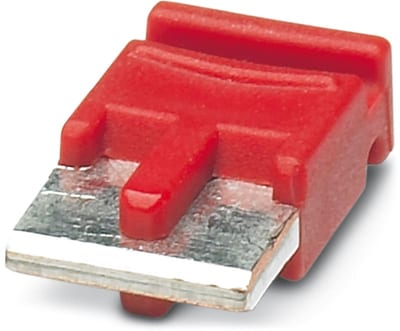

Single Plug-In Bridge
FBST 6-PLC RD
Phoenix Contact

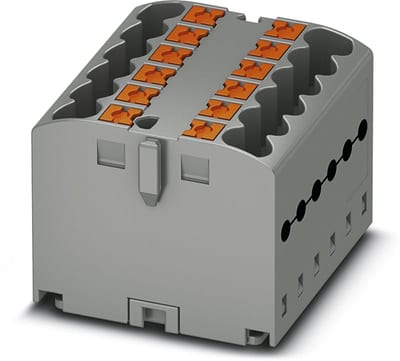

Distribution Block (PTFIX 12X2,5 RD)
Phoenix Contact

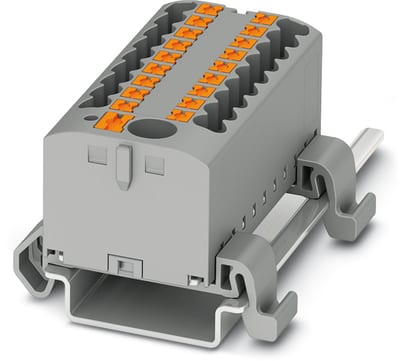

Distribution Block (PTFIX 6/6X2,5-NS35A RD)
Phoenix Contact

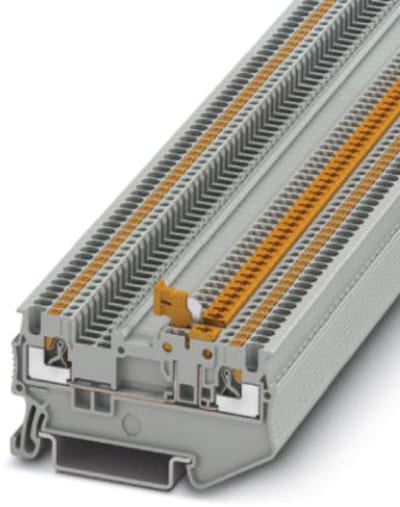

Knife-Disconnect Terminal Block (PT 1,5/S-MT)
