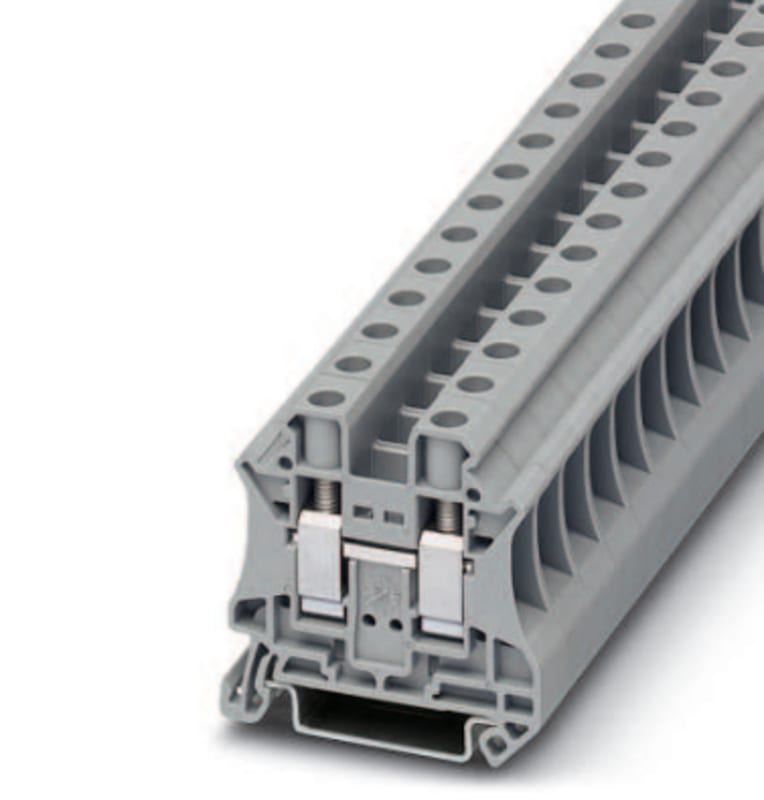

Phoenix Contact UT 10 Screw Terminal Block 0.5-10 mm²

Phoenix Contact UT 10 screw-type feed-through terminal block for conductor cross-sections 0.5-16 mm² solid or 0.5-4 mm² stranded, rated 57 A / 1000 V. Two connections in a single level for 35 mm DIN rail mounting, Ex e tested, operating temperature -60 to 110 °C.

Manufacturer part number (MPN)

UT 10

EAN / GTIN

4017918960445

Sales unit

pcs

Package quantity

50 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.5–16 mm²

Connectable conductor cross section multi-wired

0.5–4 mm²

Rated current In

57 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Connection position

Sideways

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

10.2 mm

Width/grid dimension

10.2 mm

Height

47.7 mm

Depth

46.9 mm

Length

47.7 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

Yes

Colour

Grey

Internally connected stages

Yes

Country of origin

Germany

HS Code

8536.90
