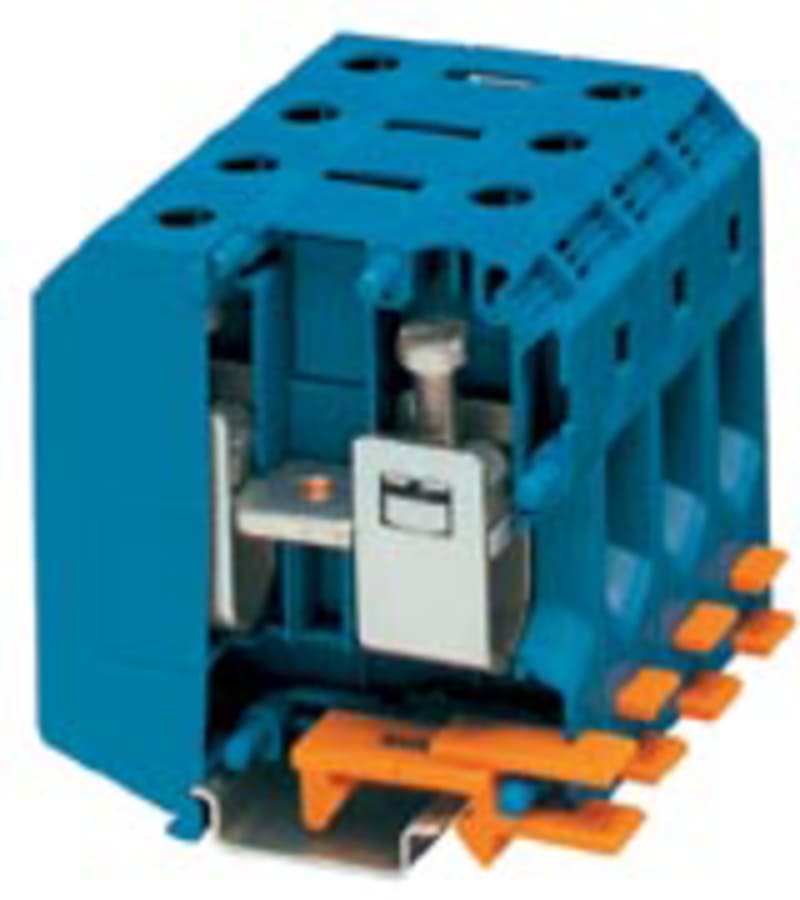

Phoenix Contact UKH 50 BU High-Current Terminal Block, Blue
Pricing
Request a quote
We reply within 24 hours
Product Description
High-current screw-connection terminal block for 35 mm DIN rail mounting, rated 150 A at 1000 V and suitable for aluminium or copper conductors from 16 to 70 mm solid or 10 to 16 mm stranded. Single-level construction with two clamping positions per level and an Ex e explosion-tested design for hazardous-area terminal boxes. Blue housing identifies neutral service in three-phase distribution and control cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- UKH 50 BU
- EAN / GTIN
- 4017918091637
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Product type
- High-Current Terminal Block
- Manufacturer order number
- 3009105
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 16–70 mm²
- Connectable conductor cross section multi-wired
- 10–16 mm²
- Rated current In
- 150 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–110 °C
- Width
- 20 mm
- Width/grid dimension
- 20 mm
- Height
- 70.5 mm
- Depth
- 75.8 mm
- Length
- 70.5 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- No
- Colour
- Blue
- Internally connected stages
- Yes
- Country of origin
- India
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918091637
- SAP 1000228288
- Code 8134864
Product Documentation
