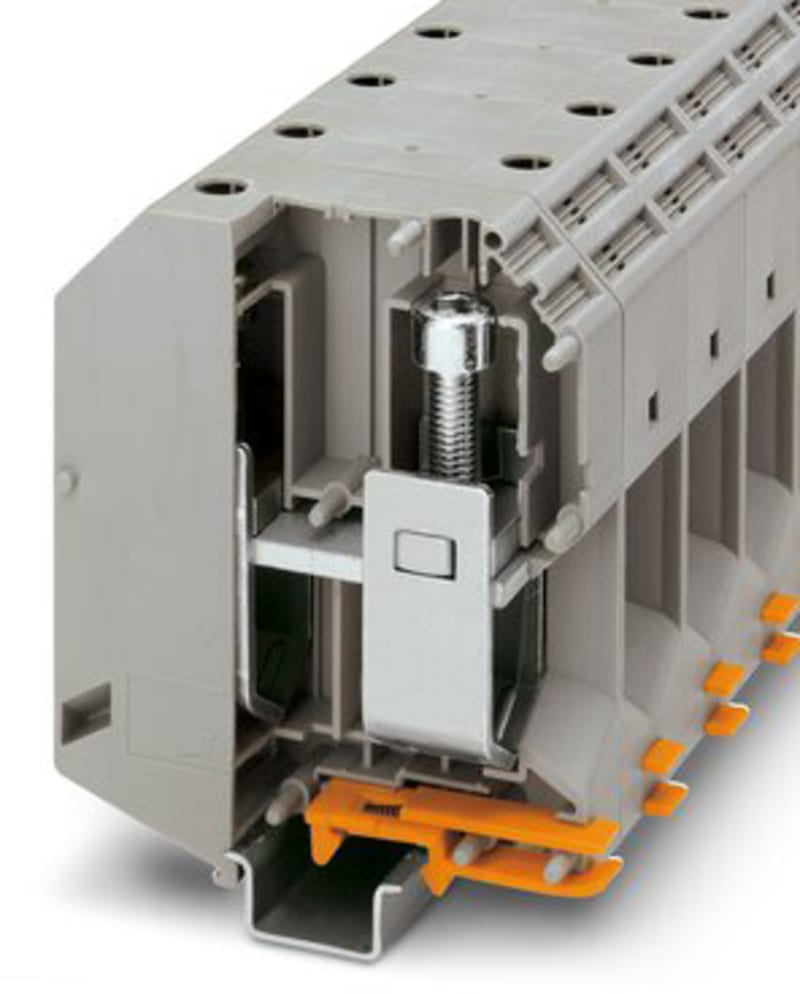

Phoenix Contact UKH 240 High-Current Screw Terminal Block, 70-240 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UKH 240 is a single-level high-current feed-through terminal block with screw connection on both sides, sized for solid conductors of 70 to 240 mm² or stranded conductors of 35 to 95 mm². Rated 415 A at 1000 V and certified for use in Ex e areas, the block mounts on 35 mm top-hat DIN rail and operates from -60 to 105 degrees C. Used for main power distribution inside industrial control cabinets and marshalling panels. Supplied in packs of three pieces in grey.
Technical Specifications
- Manufacturer part number (MPN)
- UKH 240
- EAN / GTIN
- 4017918091873
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Product type
- High-Current Terminal Block
- Manufacturer order number
- 3010217
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 70–240 mm²
- Connectable conductor cross section multi-wired
- 35–95 mm²
- Rated current In
- 415 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 36 mm
- Width/grid dimension
- 36 mm
- Height
- 105.2 mm
- Depth
- 123.94 mm
- Length
- 100 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- No
- Colour
- Grey
- Internally connected stages
- No
- Country of origin
- India
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918091873
- SAP 1000026392
- Code 8501115
Product Documentation
More from Phoenix Contact
Phoenix Contact
Terminal Strip Marker Carrier (KLM)
Phoenix Contact
Ferrule (AI 2,5 -18 BU)
AI 2,5 -18 BU
Phoenix Contact
End ferrule AI 2,5 - 8 GY-B
Phoenix Contact

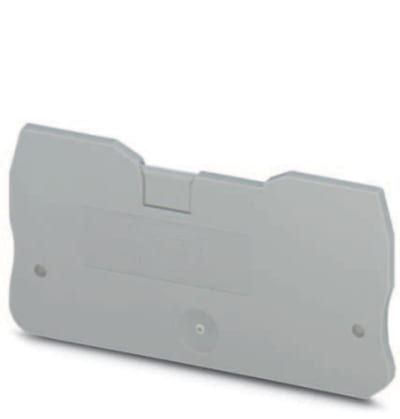

End Cover (D-QTC 2,5)
Phoenix Contact

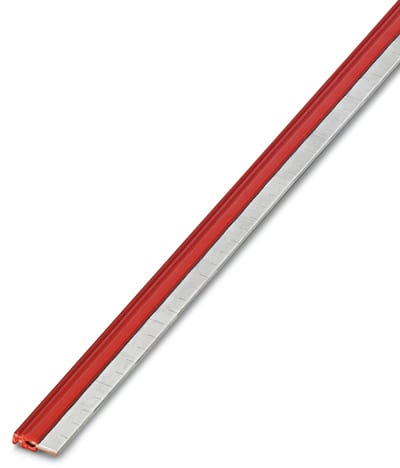

JUMPER LINK FOR PLC Relay
FBST 500-PLC RD
Phoenix Contact

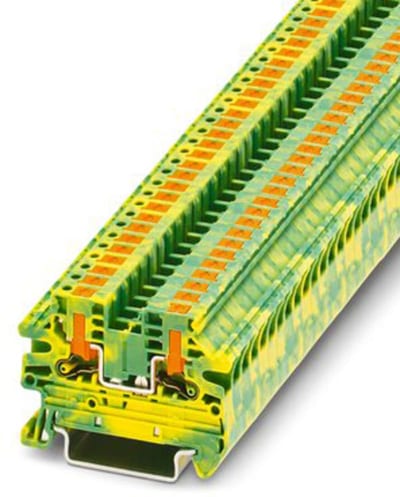

Ground Modular Terminal Block (PTV 2,5-Pe)
PTV 2,5-PE
Phoenix Contact

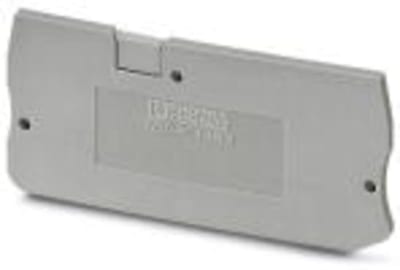

End Cover (D-PT 4-Twin)
D-PT 4-TWIN
Phoenix Contact

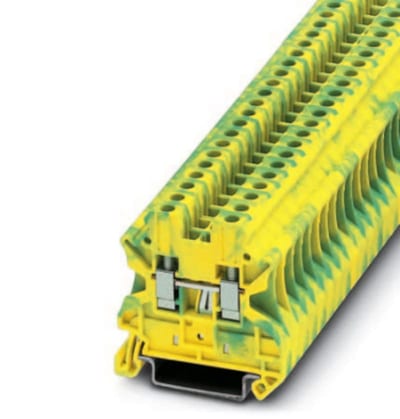

Ground Modular Terminal Block (UT 4-Pe)
UT 4-PE
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy UKH 240?
- UKH 240 can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is UKH 240.
- What is the HS code for UKH 240?
- The customs tariff (HS) code for UKH 240 is 8536.90.
- Who manufactures UKH 240?
- UKH 240 is a Phoenix Contact product in the Electrical Components range.
- Is a datasheet available for UKH 240?
- Yes — the UKH 240 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for UKH 240?
- The minimum order quantity is 1.
- Is UKH 240 available?
- Yes — UKH 240 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
