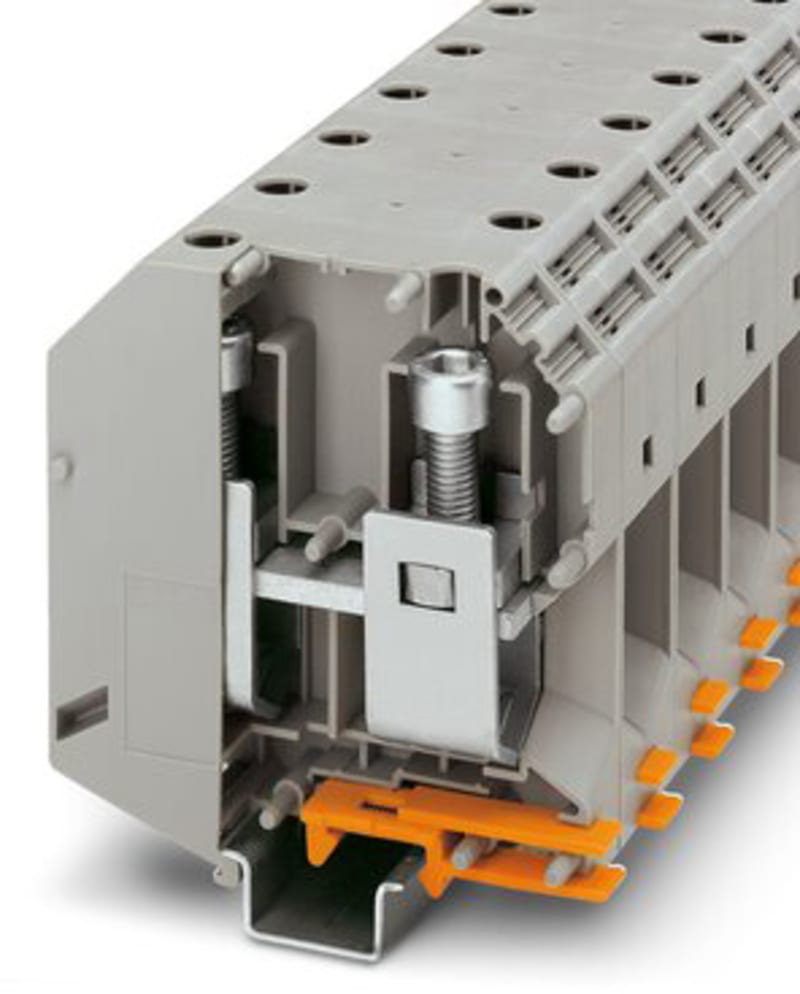

Phoenix Contact UKH 150 High-Current Screw Terminal Block 150 mm², 309 A

Phoenix Contact UKH 150 is a high-current screw terminal block for main power distribution, accepting solid conductors 35-150 mm² or multi-wired conductors 25-50 mm² in aluminium or copper. Rated current is 309 A at 1000 V with an operating range of -60 to 110 °C. The block mounts on 35 mm top-hat DIN rail and supports Ex e explosion-protected applications. Typical use is heavy-power distribution in industrial control cabinets.

Manufacturer part number (MPN)

UKH 150

EAN / GTIN

4017918091842

Sales unit

pcs

Package quantity

3 pcs

Product type

High-Current Terminal Block

Manufacturer order number

3010110

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

35–150 mm²

Connectable conductor cross section multi-wired

25–50 mm²

Rated current In

309 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

31 mm

Width/grid dimension

31 mm

Height

100 mm

Depth

107.3 mm

Length

100 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

No

Colour

Grey

Internally connected stages

Yes

Country of origin

India

HS Code

8536.90

• EAN 4017918091842
• SAP 1000050940
• Code 8534262
