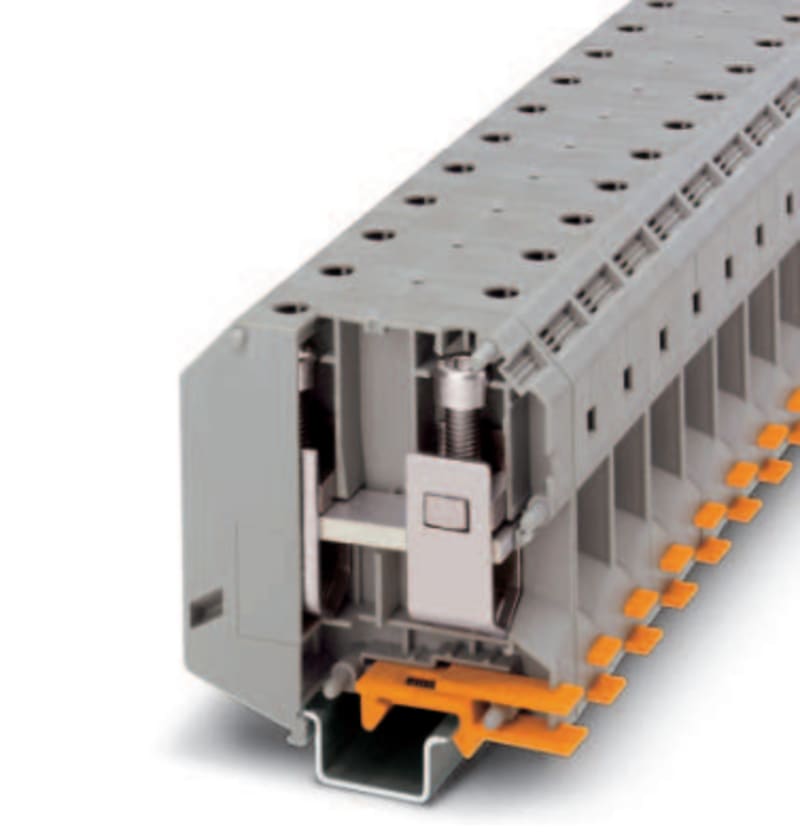

Phoenix Contact UKH 95 Screw-Clamp Feed-Through Terminal Block 35–95 mm² 232 A

Phoenix Contact UKH 95 is a high-current screw-clamp feed-through terminal block for main-current distribution, accepting solid conductors 25–95 mm² and stranded conductors 25–35 mm² in aluminium or copper. The block is rated 232 A at 1000 V, mounts on 35 mm DIN top-hat rail, and carries an Ex e explosion-tested approval for use in hazardous-area enclosures. Typical applications include incoming supply terminations in industrial switchboards and motor control centres. Supplied in packs of 3 pieces, grey.

Manufacturer part number (MPN)

UKH 95

EAN / GTIN

4017918091835

Sales unit

pcs

Package quantity

3 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

25–95 mm²

Connectable conductor cross section multi-wired

25–35 mm²

Rated current In

232 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

25 mm

Width/grid dimension

25 mm

Height

83 mm

Depth

90 mm

Length

83 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

No

Colour

Grey

Internally connected stages

Yes

Country of origin

India

HS Code

8536.90

• EAN 4017918091835
• SAP 1000023295
• Code 8201540
