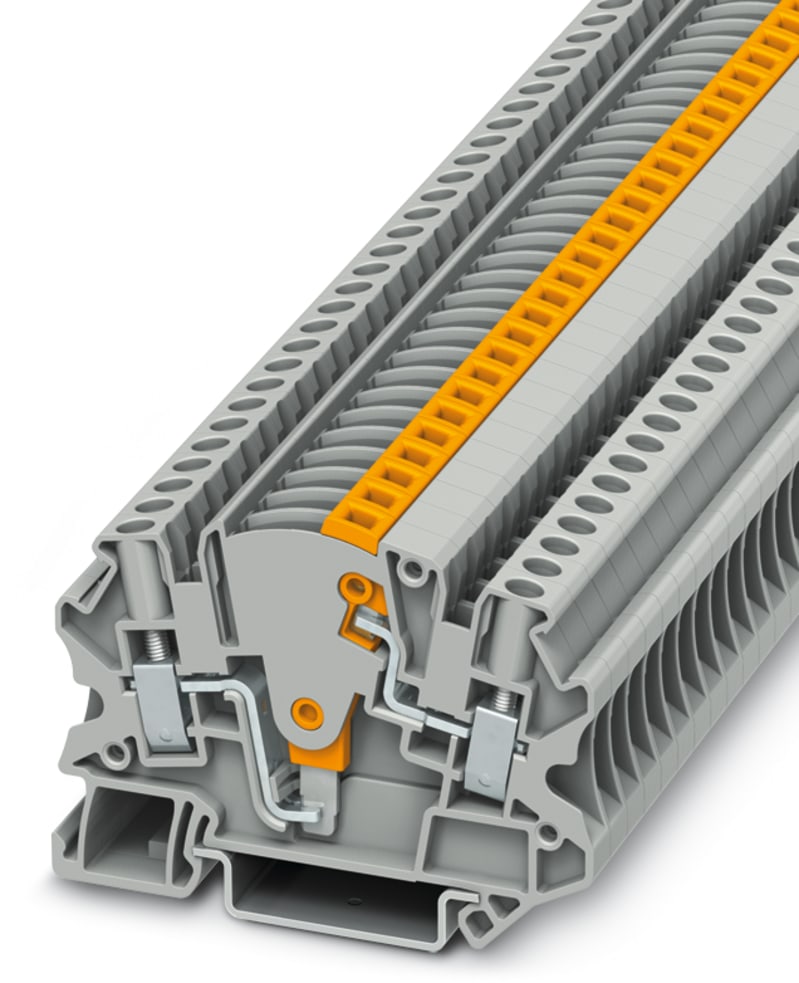

Phoenix Contact 3047453 Current Transformer Disconnect Terminal Block 6.15 mm

Phoenix Contact 3047453 is a current transformer disconnect terminal block with an integrated test socket, rated 28 A at 500 V. Screw connections accept 0.14-6 mm² solid and 0.14-1.5 mm² stranded conductors on a single level with two clamp positions. The 6.15 mm wide grey housing mounts on 35 mm DIN rail and requires a closing plate.

Manufacturer part number (MPN)

3047453

EAN / GTIN

4046356701709

Sales unit

pcs

Connectable conductor cross section solid-core

0.14–6 mm²

Connectable conductor cross section multi-wired

0.14–1.5 mm²

Rated current In

28 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Internally connected stages

No

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–105 °C

Width

6.15 mm

Width/grid dimension

6.2 mm

Height

66 mm

Depth

48.790284 mm

Closing plate required

Yes

Colour

Grey

With integrated test socket

Yes

Length

66 mm

Country of origin

Poland

HS Code

8536.90
