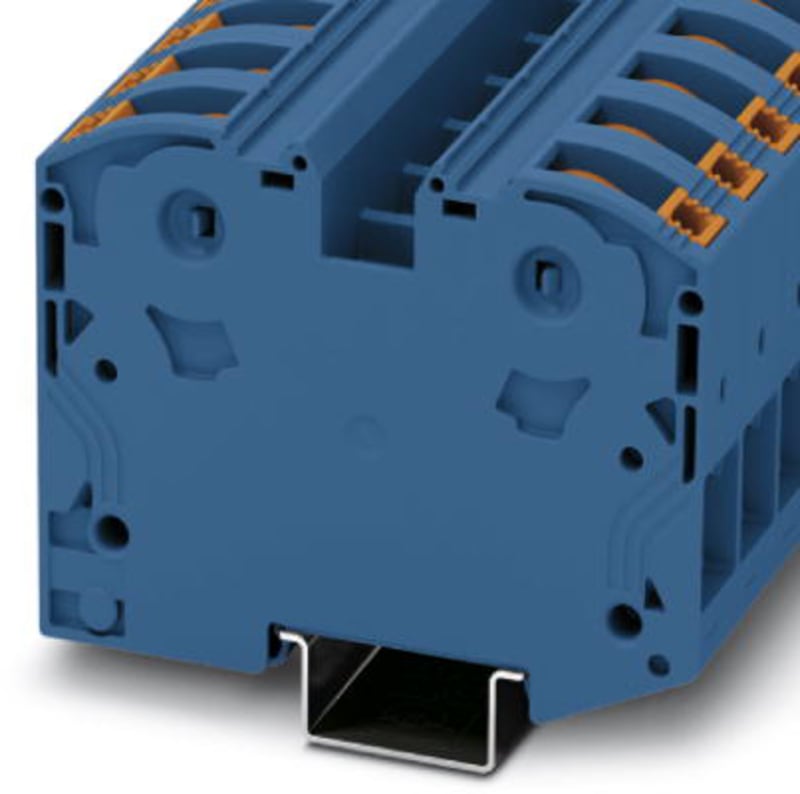

Phoenix Contact PTPOWER 35 BU High-Current Terminal Block, 125 A, 1000 V, Blue

Single-level high-current feed-through terminal block using Power-Turn connection for two clamp positions per level, accepting solid or stranded aluminium/copper conductors from 2.5 to 35 mm². Rated 125 A at 1000 V with an operating range of -60 to +110 °C, mounted on 35 mm DIN top-hat rail. The blue housing marks neutral in three-phase power distribution; 16 mm width per position, no closing plate required.

Manufacturer part number (MPN)

PTPOWER 35 BU

EAN / GTIN

4046356726023

Sales unit

pcs

Package quantity

10 pcs

Product type

High-Current Terminal Block

Manufacturer order number

3212065

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

2.5–35 mm²

Connectable conductor cross section multi-wired

2.5–35 mm²

Rated current In

125 A

Rated voltage

1000 V

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

16 mm

Width/grid dimension

16 mm

Height

91.6 mm

Depth

69.8 mm

Length

91.6 mm

Explosion-tested version 'Ex e'

No

Closing plate required

No

Colour

Blue

Internally connected stages

Yes

Country of origin

Poland

HS Code

8536.90

• EAN 4046356726023
• SAP 1000700579
• Code 8149969
