Philips

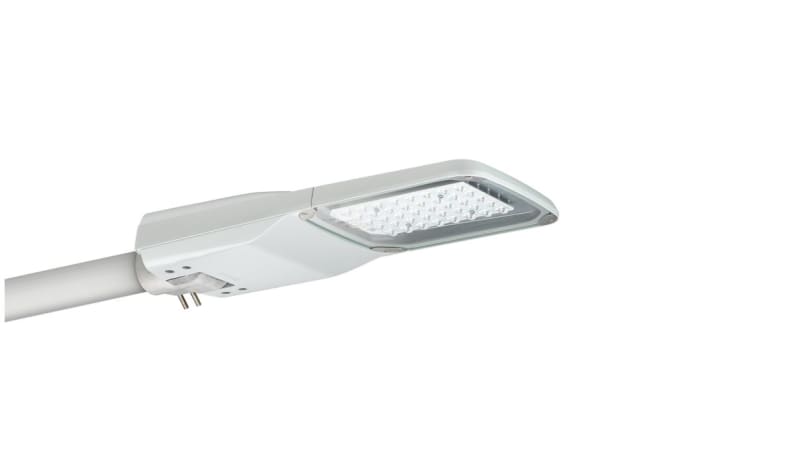

LUMISTREET 14900LM 730 Zhaga
Part number3501190HS code9405.11
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Philips 3501190 Lumistreet BGP292 LED149-4S/730 II DM32 7042 MSP CL.
Technical Specifications
- Manufacturer part number (MPN)
- 3501190
- Sales unit
- pcs
- El-nummer (NO)
- 3501190
- ETIM class
- SC000062
- Luminous flux
- 14900 lm
- Mounting method
- Side entry
- Protection class according to IEC 61140
- II
- Width
- 234 mm
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- Connection type
- Push-in clamp
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 70-79
- Cable length
- 8 m
- Number of poles
- 5
- Length
- 621 mm
- Height/depth
- 95 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Material cover
- Glass transparent
- Impact strength
- IK08
- With connection cable
- Yes
- Degree of protection (IP)
- IP66
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Adjustable optics
- No
- Max. system power
- 90 W
- Rated luminous flux according to IEC 62722-2-1
- 14900 lm
- Colour of light
- White
- Remote control
- Network control
- With radio control
- No
- With light regulation program control
- Yes
- Constant light output (CLO)
- Yes
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Colour consistency (McAdam ellipse)
- SDCM5
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- Yes
- Dimming DMX
- Yes
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- Yes
- Dimming RF
- Yes
- Dimming Its Wave Reduction
- Yes
- Dimming Touch and Dim
- No
- Dimming Zigbee
- Yes
- Dimming with push-button
- No
- No dim function
- No
- Light distributor
- Diffuser lens/optic/panel
- Luminaire efficacy
- 156 lm/W
- Dimming DSI
- Yes
- Exchangeable control gear
- Yes
- Power factor
- 0.98
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 9405.11
Cross References
- 8720169487260
- El-nr 3501190
Product Documentation
Document preview: LUMISTREET 14900LM 730 Zhaga (3501190) — Specification sheet
